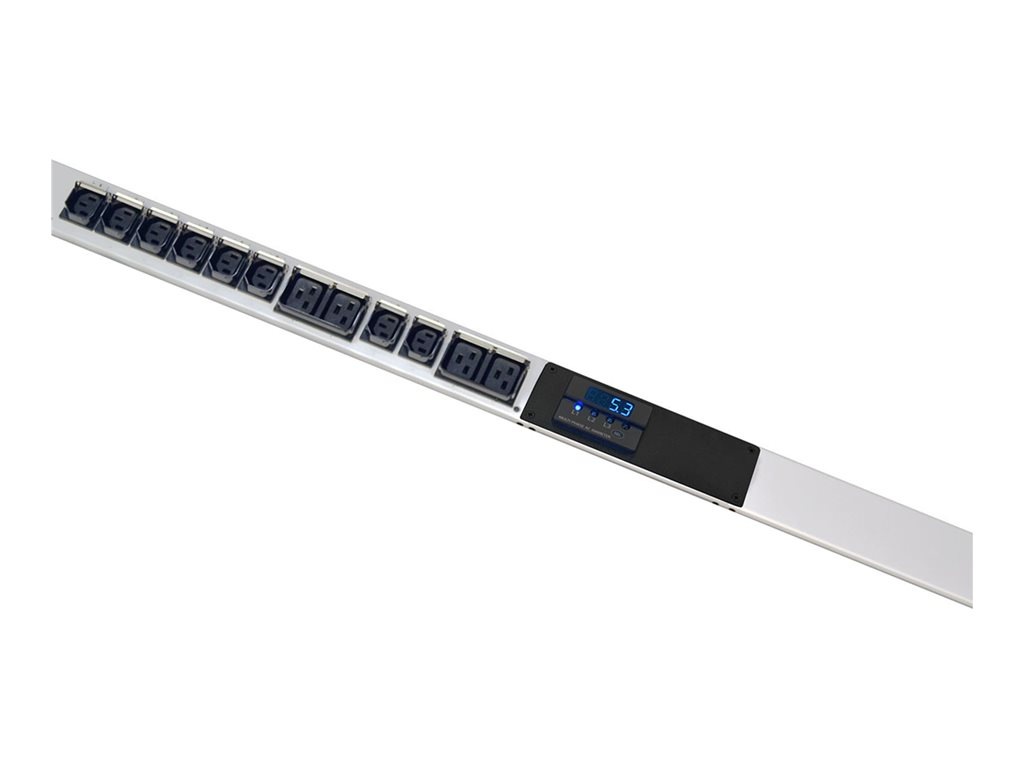

Power distribution unit (rack-mountable) - AC 220-240 V - 3.8 kW - 1-phase - input: IEC 60309 16A - output connectors: 24 (24 x IEC 60320 C13) - 42U - 10 ft cord - glacier white - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | CPI Metered eConnect PDU E1-2005-E - power distribution unit - 3.8 kW - TAA Compliant |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 42U |
| Input Wiring | 1-phase |
| Input Voltage | AC 220-240 V |
| Power Capacity | 3.8 kW |
| Input Connectors | 1 x power IEC 60309 16A |
| Output connectors | 24 x power IEC 60320 C13 |
| Color | Glacier white |
| TAA Compliant | TAA Compliant |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 42U |
| Cord Length | 10 ft |
| Color | Glacier white |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Features | Indoor use, vertical orientation, low-profile design, tool-less mounting, LED display, current meter, vertical orientation, locking outlets |
| Compliant Standards | UL, IEC 62368, UL 489, FCC Part 15 A, EN55022, RoHS, cUL |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 220-240 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 16A |
| Power Output Connectors Details | 24 x power IEC 60320 C13 |
| Max Electric Current | 16 A |
| Power Capacity | 3.8 kW |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 26.46 lbs |
