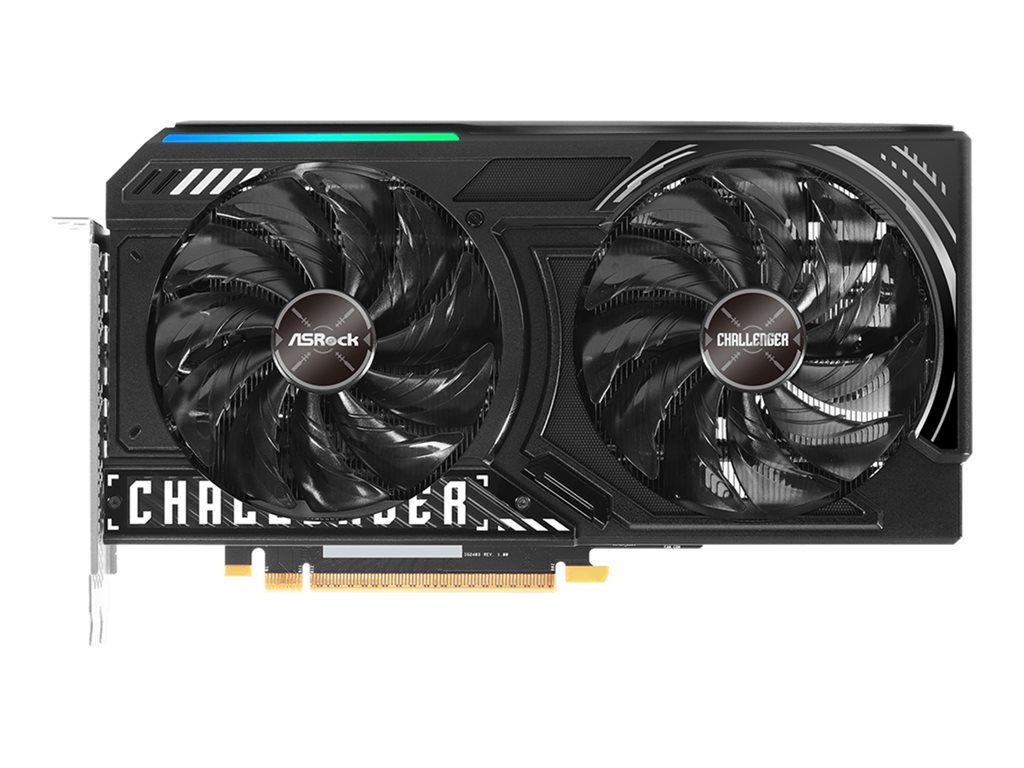

OC Edition - graphics card - Arc B580 - 12 GB GDDR6 - PCIe 4.0 x8 - 3 x DisplayPort, HDMI
| Main Specifications | |
|---|---|
| Product Description | ASRock Challenger Intel Arc B580 12GB OC - OC Edition - graphics card - Arc B580 - 12 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 x8 |
| Graphics Engine | Intel Arc B580 |
| Memory | 12 GB GDDR6 |
| Memory Speed | 19 Gbps |
| Core Clock | 2740 MHz |
| Memory Interface | 192-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Dimensions (WxDxH) | 1.6 in x 9.8 in x 5.2 in |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 x8 |
| Graphics Engine | Intel Arc B580 |
| Core Clock | 2740 MHz |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Features | 160 Intel XMX Engines, 20 Compute Units, 2-slot Fan Cooler, Dual Fan Design, 0dB Technology, LED indicator, Super Alloy Power technology, Striped Axial Fan, Intel Xe Super Sampling 2 (XeSS 2), Intel Xe Matrix eXtensions (XMX), Intel Xe2 HPG Architecture, LED on/off switch, nano thermal paste, ultra-fit heatpipe, japanese SP-Cap, Smart Power Stages (SPS), Premium Power Choke, 2oz copper PCB, High Density Glass Fabric PCB, metal backplate, HDCP |
| Memory | |
| Size | 12 GB |
| Technology | GDDR6 SDRAM |
| Memory Speed | 19 Gbps |
| Bus Width | 192-bit |
| Miscellaneous | |
| Compliant Standards | DisplayPort 2.1, Ultra High Bit Rate 10 (UHBR10), Ultra High Bit Rate 13.5 (UHBR13.5) |
| Width | 1.6 in |
| Depth | 9.8 in |
| Height | 5.2 in |
| Weight | 25.39 oz |
| System Requirements | |
| Required Power Supply | 650 W |
| Additional Requirements | 8 pin PCI Express power connector |
