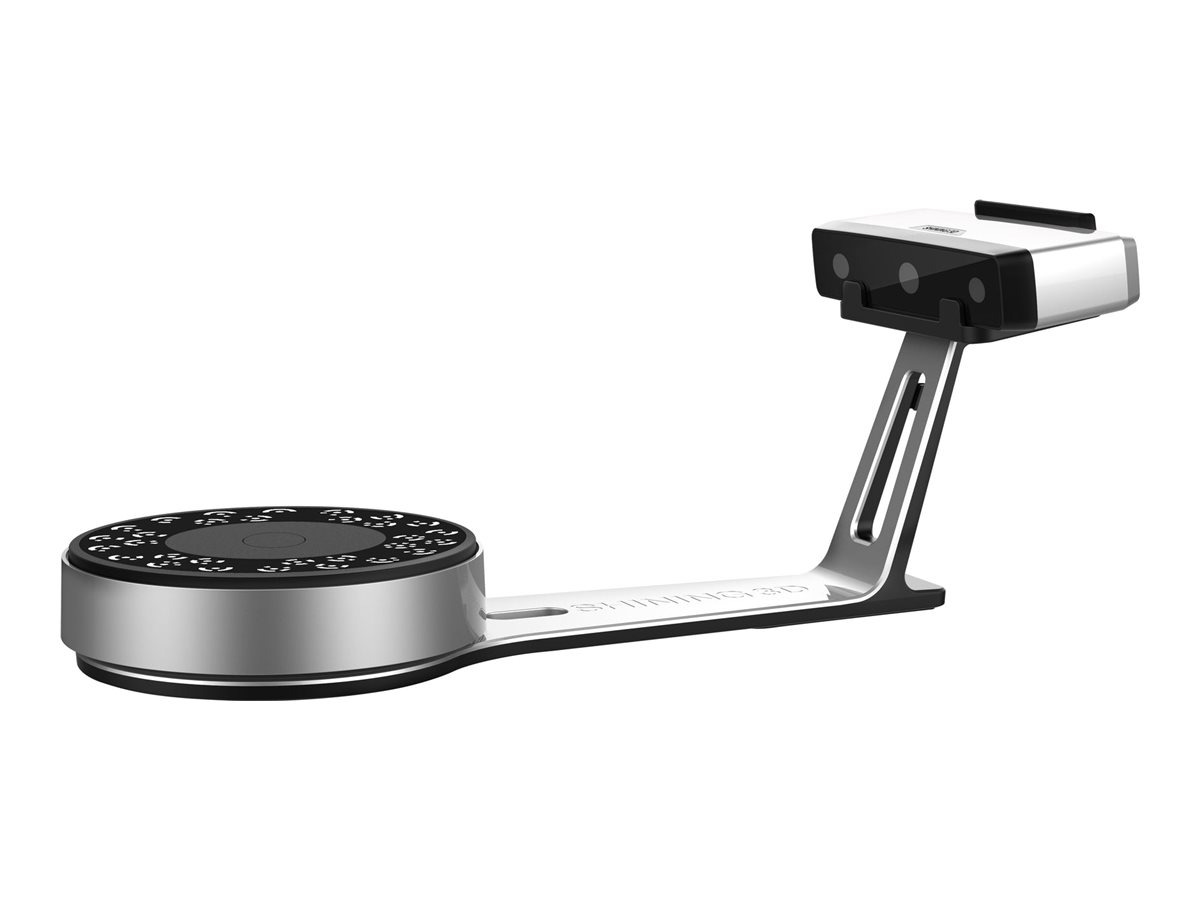

3D scanner - desktop - white LED - USB 3.0
| Main Specifications | |
|---|---|
| Product Description | Afinia EinScan SP v2 - 3D scanner - desktop - USB 3.0 |
| Device Type | 3D scanner - desktop |
| Interface Type | USB 3.0 |
| Scanning Sensor Type | White LED |
| Scan Speed | 1 sec, |
| Max Scan Size | 27.56 in x 27.56 in x 27.56 in |
| Min Scan Size | 1.18 in x 1.18 in x 1.18 in |
| Power | AC 100-230 V |
| System Requirements | Microsoft Windows 7 / 8 / 10 |
| Dimensions (WxDxH) | 22.4 in x 8.3 in x 8.3 in |
| Weight | 9.26 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Type | 3D scanner - desktop |
| Interface Type | USB 3.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Turntable, tripod, calibration pattern assembly |
| Cables Included | USB cable |
| Compliant Standards | FCC, RoHS, WEEE |
| Media Handling | |
| Max Scan Size | 27.56 in x 27.56 in x 27.56 in |
| Min Scan Size | 1.18 in x 1.18 in x 1.18 in |
| Power | |
| Voltage Required | AC 100-230 V |
| Power Consumption Operational (Standby) | 50 watt |
| Software / System Requirements | |
| Software Included | Solid Edge SHINING 3D Edition |
| OS Required | Microsoft Windows 7 / 8 / 10 |
| Scanner | |
| Scanning Sensor Type | White LED |
| Scan Speed | 1 sec, |
| Scanner Features | 0.05 mm accuracy, 0.17 mm 0.2 mm point distance, Auto Scan Mode, fixed scan mode, 200 x 150 mm single capture range, color texture support, printing support, 1.3MP resolution, multiple alignment modes, 5 kg load capacity, 290 - 480 mm working distance |
| Output File Formats | STL, ASC, OBJ, PLY |
| Dimensions & Weight | |
| Width | 22.4 in |
| Depth | 8.3 in |
| Height | 8.3 in |
| Weight | 9.26 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 25.2 in |
| Shipping Depth | 16.1 in |
| Shipping Height | 9.1 in |
