Conference camera - PTZ - color (Day&Night) - 20.2 MP - 3840 x 2160 - motorized - 2000 TVL - audio - HDMI, 3G-SDI, 12G-SDI - LAN - MJPEG, H.264, H.265 - DC 12 V / PoE ++
| Main Specifications | |
|---|---|

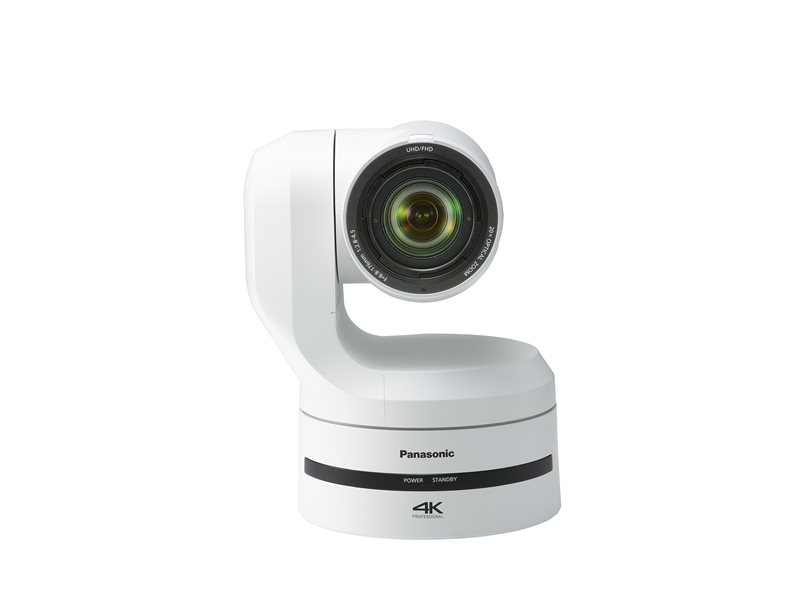

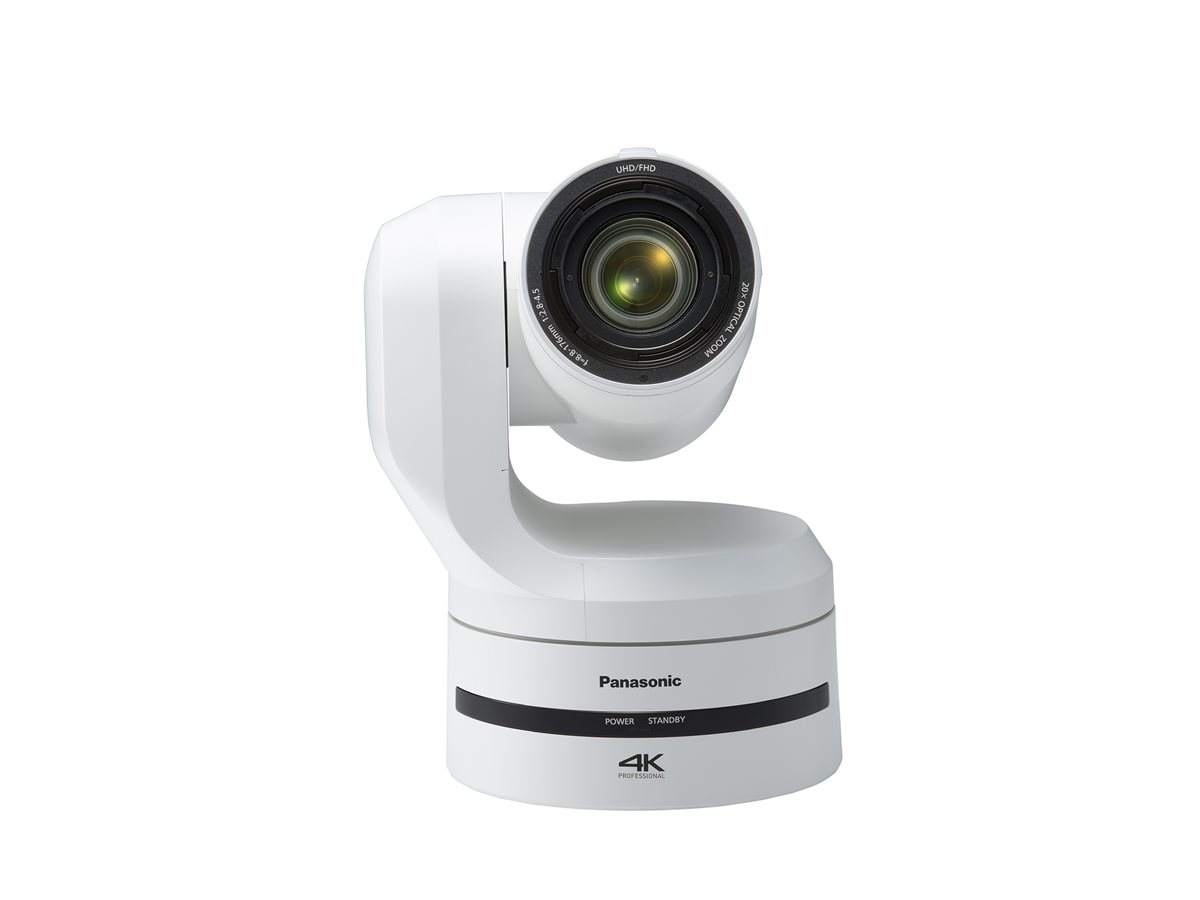

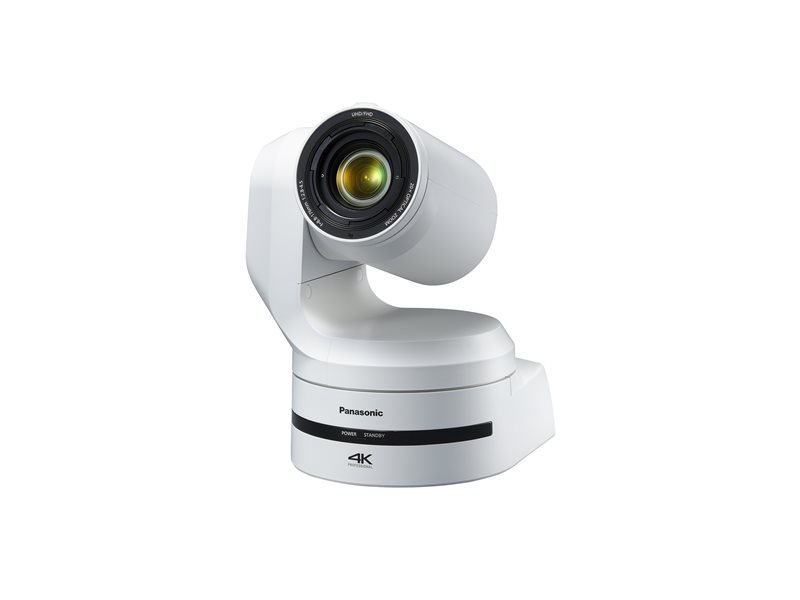

| Product Description | Panasonic AW-UE150A - conference camera |
| Device Type | Conference camera - pan / tilt / zoom |
| Audio | Yes |
| Camera Mount Type | Ceiling mount, table mount |
| Dimensions (WxDxH) | 8.4 in x 8.6 in x 10.5 in |
| Weight | 0.15 oz |
| Color | Pearl white |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night - 2000 TVL |
| Optical Zoom | 20 x |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 1080/24p, 1080/50i, 720/50p, 1080/50p, 1080/30p, 1080/25p, 2160/24p, 2160/25p, 2160/50p, 1080/59.94i, 1080/59.94p, 720/59.94p, 1080/25PsF, 1080/23.98p, 2160/23.98p, 2160/29.97p, 2160/59.94p |
| Optical Sensor Type | MOS - 1" - 20.2 MP |
| Minimum Illumination | 2 lux F2.8 - 50 IRE |
| Focal Length Control | Motorized zoom |
| Focal Length | 8.8 mm - 176 mm |
| Focus Adjustment | Automatic, manual (min distance 3.9 in) |
| Lens Iris | F/2.8-4.5 |
| Panning Range (degree) | -175 to +175 |
| Tilting Range (degree) | -30 to +210 |
| Interfaces | HDMI, 3G-SDI, 12G-SDI, LAN |
| Control Interface | RS-422A |
| Voltage | DC 12 V / PoE ++ |
| Features | Built-in optical ND filters, adjustable gain control, Gain Boost function, Automatic Tracing White (ATW), Automatic Whiteness Balance (AWB), HD Tri-Level Sync, Unicast Streaming, Multicast Streaming, tally light, Crop Zoom, FreeD protocol support, Optical Low Pass Filter (OLFP), optical image stabilizer, auto tracking |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 90% (non-condensing) relative humidity |
| General | |
| Device Type | Conference camera |
| Audio Support | Yes |
| Audio Formats | AAC-LC |
| Camera Mount Type | Ceiling mount, table mount |
| Connectivity Technology | Wired |
| Width | 8.4 in |
| Depth | 8.6 in |
| Height | 10.5 in |
| Weight | 0.15 oz |
| Expansion / Connectivity | |
| Ports | G/L input - BNC ¦ Audio line-in/microphone - 3.5 mm stereo jack ¦ HDMI output - HDMI Type A ¦ 12G-SDI output - BNC ¦ 2 x 3G-SDI output - BNC ¦ Video output - SFP+ ¦ LAN/power - RJ-45 ¦ Serial RS-422 - RJ-45 |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3bt, SMPTE 2082-1, SMPTE 2081, SMPTE 292M, SMPTE 424M |
| Color | Pearl white |
| Power | |
| Power Requirements | DC 12 V / PoE ++ |
| Software / System Requirements | |
| OS Required | Microsoft Windows 10 / 11, Apple macOS 12, Apple macOS 13, Apple macOS 14, Apple iOS, Apple iPadOS, Android |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 90% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom |
| Digital Video Format | MJPEG, H.264, H.265 |
| Horizontal Resolution (TV Lines) | 2000 |
| Max Digital Video Resolution | 3840 x 2160 |
| Video Modes | 1080/24p, 1080/50i, 720/50p, 1080/50p, 1080/30p, 1080/25p, 2160/24p, 2160/25p, 2160/50p, 1080/59.94i, 1080/59.94p, 720/59.94p, 1080/25PsF, 1080/23.98p, 2160/23.98p, 2160/29.97p, 2160/59.94p |
| Digital Zoom | 32 |
| Exposure Range | 1/24 sec - 1/10000 sec |
| Minimum Illumination | 2 lux F2.8 - 50 IRE |
| Video Capture | 3840 x 2160 @ 59.94 fps ¦ 3840 x 2160 @ 50 fps ¦ 3840 x 2160 @ 29.97 fps ¦ 3840 x 2160 @ 25 fps ¦ 3840 x 2160 @ 24 fps ¦ 3840 x 2160 @ 23.98 fps ¦ 1920 x 1080 @ 59.94 fps ¦ 1920 x 1080 @ 50 fps ¦ 1920 x 1080 @ 29.97 fps ¦ 1920 x 1080 @ 25 fps ¦ 1920 x 1080 @ 24 fps ¦ 1920 x 1080 @ 23.98 fps ¦ 1280 x 720 @ 59.94 fps ¦ 1280 x 720 @ 50 fps |
| Supported Image Formats | JPEG |
| Features | Built-in optical ND filters, adjustable gain control, Gain Boost function, Automatic Tracing White (ATW), Automatic Whiteness Balance (AWB), HD Tri-Level Sync, Unicast Streaming, Multicast Streaming, tally light, Crop Zoom, FreeD protocol support, Optical Low Pass Filter (OLFP), optical image stabilizer, auto tracking |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 20 x |
| Focal Length | 8.8 mm - 176 mm |
| Lens Iris | F/2.8-4.5 |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 3.9 in |
| Horizontal Field of View (degree) | 4 - 75.1 |
| Vertical Field of View (degree) | 2.3 - 46.7 |
| Diagonal Field of View (degree) | 4.6 - 82.8 |
| Image Sensor | |
| Type | 20.2 MP MOS 1" |
| Interfaces | |
| Video | HDMI, 3G-SDI, 12G-SDI |
| Network Interface | LAN |
| Network Protocols | LLDP, NDI HX2, TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTCP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT, IPv4, IPv6, DHCPv6, MLD |
| Control Interface | RS-422A |
| Panning | |
| Range (degree) | -175 to +175 |
| Speed (degree/sec) | Up to 180 |
| Tilting | |
| Range (degree) | -30 to +210 |
| Speed (degree/sec) | Up to 180 |
