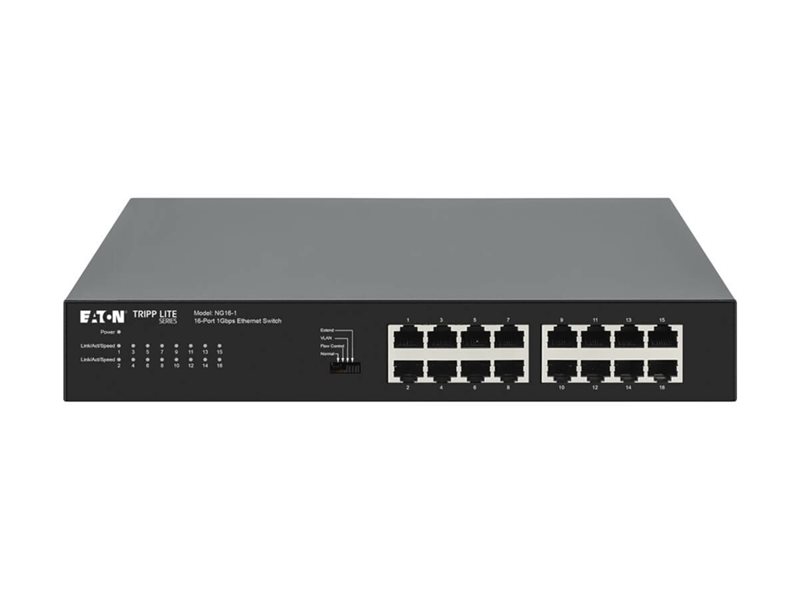

Switch - unmanaged - 16 x 10/100/1000 - desktop, rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite series NG-16-1 - switch - 16 ports - unmanaged - rack-mountable |
| Device Type | Switch - 16 ports - unmanaged |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 |
| Performance | Switching capacity: 32 Gbps |
| MAC Address Table Size | 8192 entries |
| Jumbo Frame Support | 10000 bytes |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), crossover detection, full duplex capability, flow control, Energy Efficient Ethernet, MAC address aging, MAC address learning, fanless |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3az |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 4.9 in x 11 in x 1.7 in |
| Weight | 3.2 lbs |
| Color | Black |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Switch - 16 ports - unmanaged |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 |
| Performance | Switching capacity: 32 Gbps |
| MAC Address Table Size | 8192 entries |
| Jumbo Frame Support | 10000 bytes |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), crossover detection, full duplex capability, flow control, Energy Efficient Ethernet, MAC address aging, MAC address learning, fanless |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3az |
| Status Indicators | Power, port status, link/activity, port transmission speed |
| Expansion / Connectivity | |
| Interfaces | 16 x 1000Base-T RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |

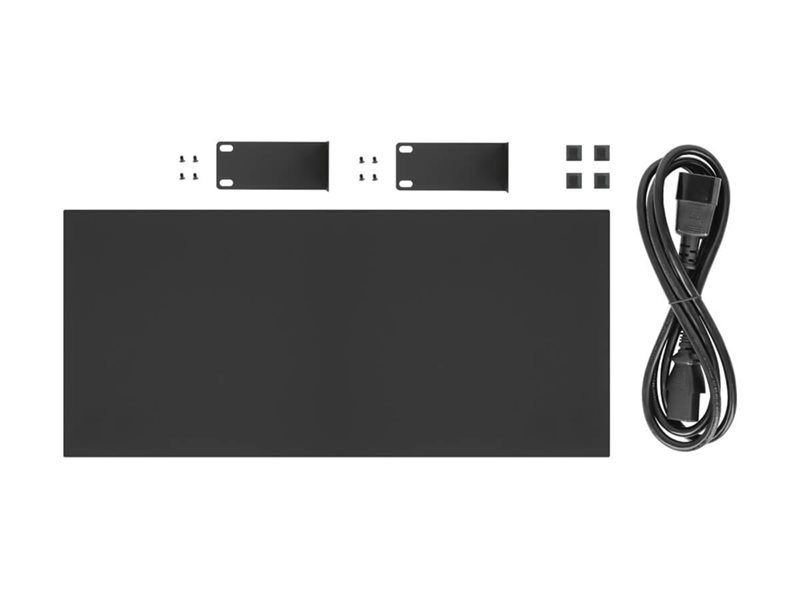

| Included Accessories | 2 rack mount brackets, 8 screws, 4 rubber feet |
| Rack Mounting Kit | Included |
| Compliant Standards | Plug and Play, AN/CSA-C22.2 No. 62368-1 (Canada), FCC Part 15 Class B (USA), IEC 62368-1, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, REACH, RoHS, UKCA, UL 62368-1 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 10 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 4.9 in |
| Depth | 11 in |
| Height | 1.7 in |
| Weight | 3.2 lbs |
