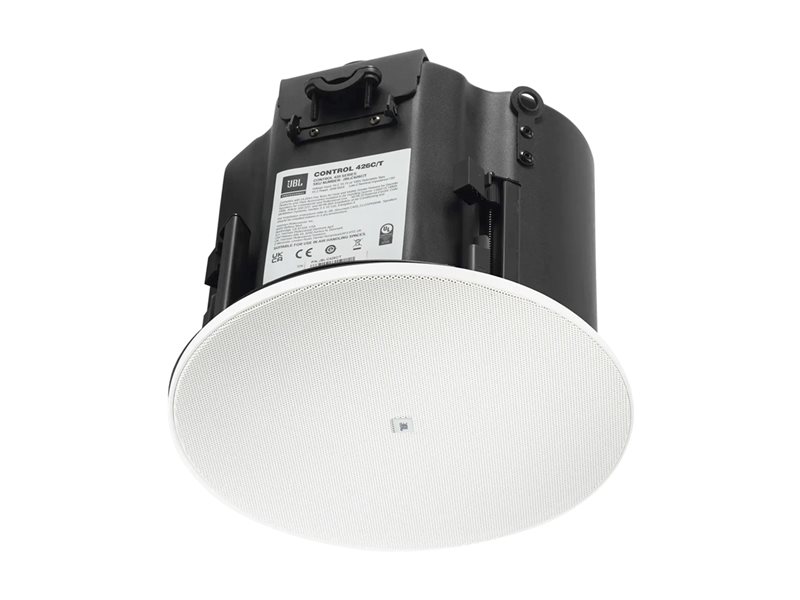

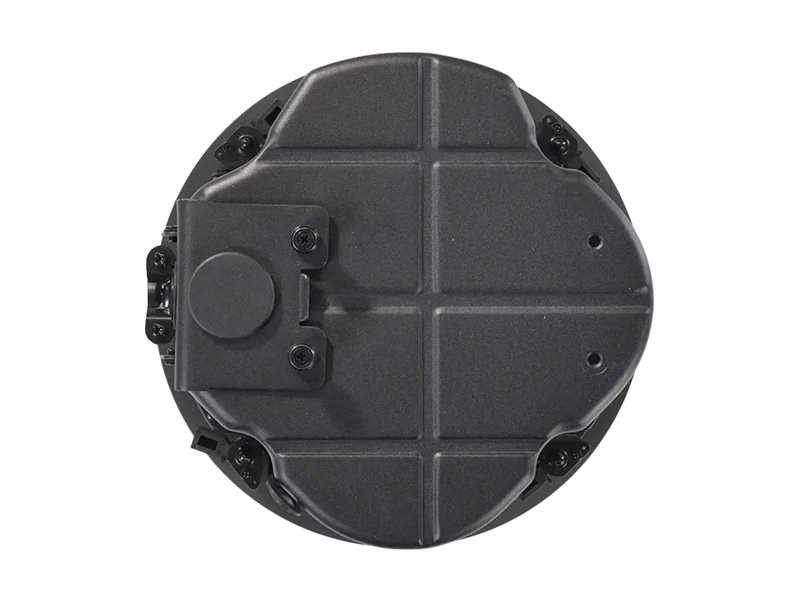

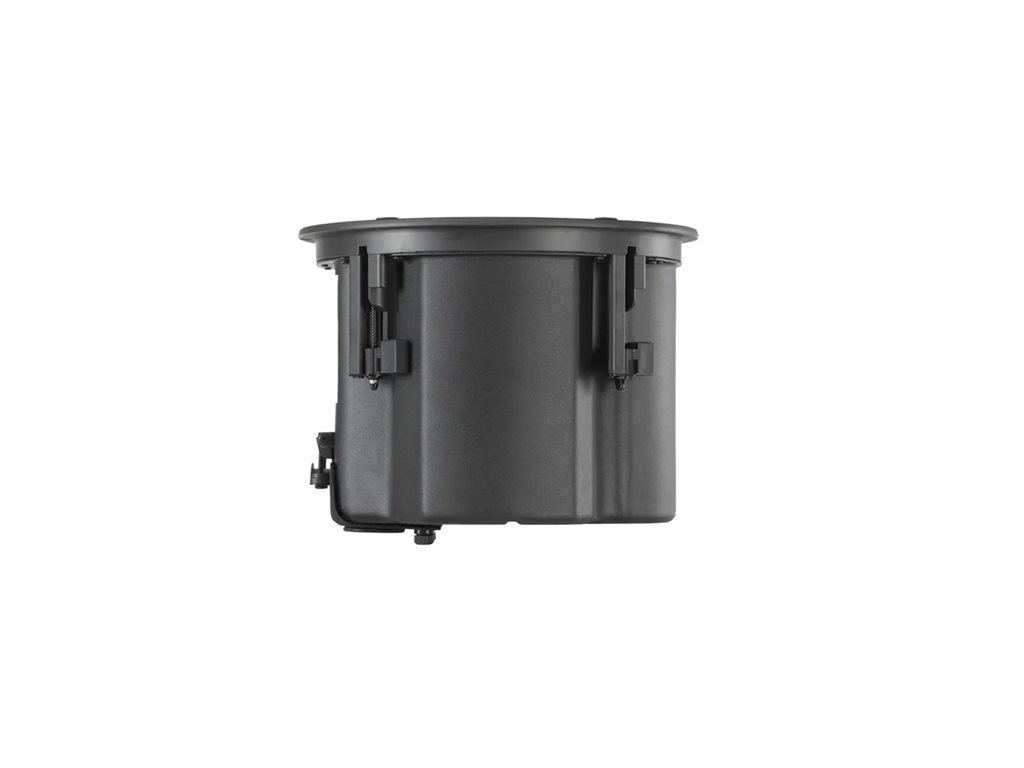

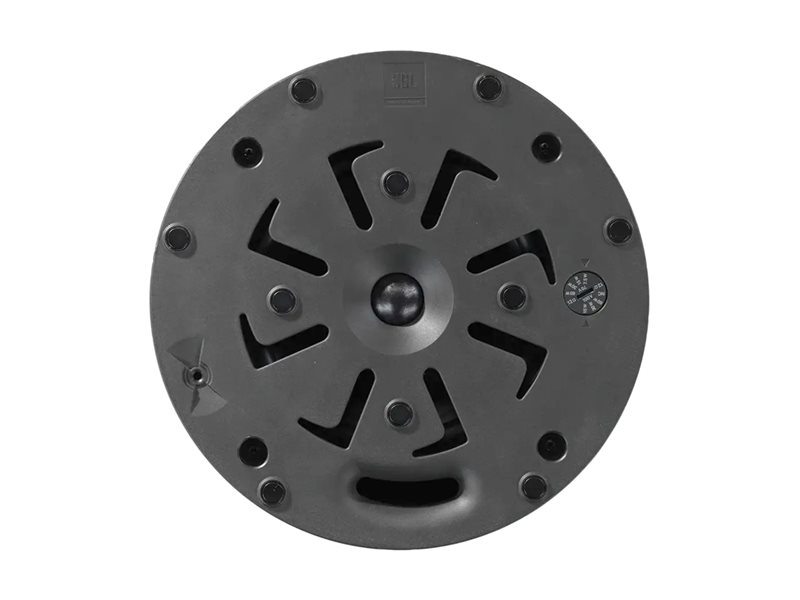

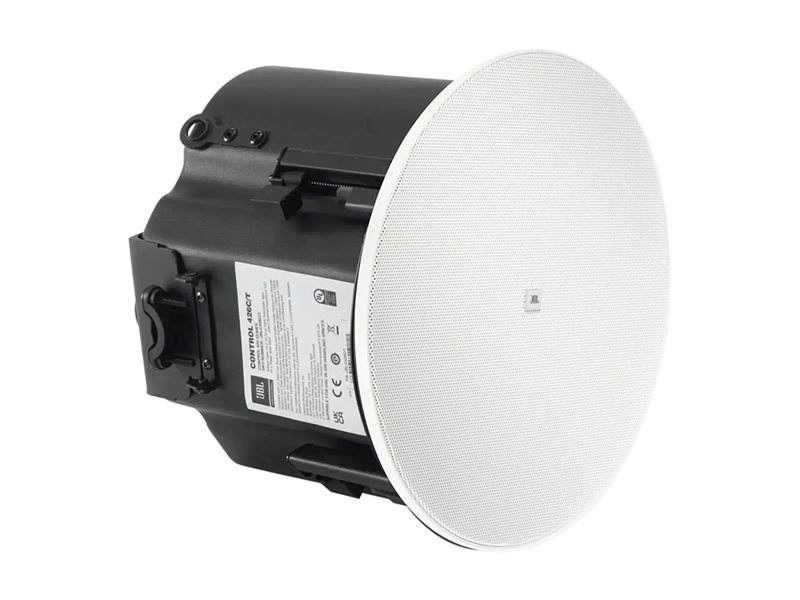

400 Series - speakers - for PA system - 110 Watt - 2-way - coaxial - white, RAL 9003
| Main Specifications | |
|---|---|
| Product Description | JBL Professional Control 400 Series 426C/T - speakers - for PA system |
| Product Type | 400 Series - speakers - for PA system |
| Protection | Overload protection |
| System Components | 2 speakers |
| Enclosure Design | Bass reflex |
| Speaker Type | Coaxial - 2-way - passive |
| Continuous Power | 110 Watt |
| Peak Power | 440 Watt |
| Nominal Impedance | 12 Ohm |
| Integrated Transformer | 70V/100V or 12 Ohm operation |
| Color | White, RAL 9003 |
| Dimensions (WxDxH) | 7.5 in |
| Dimensions - Diameter | 10 in |
| Weight | 9.26 lbs |
| General | |
| Product Type | Speakers - for PA system |
| Features | Radiation Boundary Integrator (RBI) |
| Protection | Overload protection |
| Enclosure Color | White, RAL 9003 |
| Enclosure Design | Bass reflex |
| Enclosure Material | Powder-coated steel back can, polypropylene |
| Design Features | Magnetically attached grilles, paintable grille |
| Miscellaneous | |
| Included Accessories | Backcan, C-ring, tile rails, cutout template, 2 2-pin Euroblock connectors |
| Compliant Standards | UL 1480A, UL 2043, NFPA 70, NFPA 90, S7232/UL, CSA C22.2 No. 205, EN 60849, IEC 60849, IEC/EN 60529, IEC/EN 63000 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Connections | |
| Connector Type | 2 x speakers input (2-pin Euroblock) |
| Dimensions & Weight | |
| Diameter | 10 in |
| Height | 7.5 in |
| Weight | 9.26 lbs |
| Speaker System | |
| Series | 400 Series |
| System Components | 2 speakers |
| Speaker Type | Coaxial - 2-way - passive |
| Continuous Power | 110 Watt |
| Continuous Power Details | 220 W (program) |
| Peak Power | 440 Watt |
| Frequency Response (+/-3dB) | 95 - 17000 Hz |
| Frequency Response (-10dB) | 72 - 19000 Hz |
| Nominal Impedance | 12 Ohm |
| Max Output Level (Max SPL) | 115 dB |
| Sensitivity | 89 dB |
| Integrated Transformer | 70V/100V or 12 Ohm operation |
| Coverage | 110° conical |
| Recommended Placing | In-ceiling mounted |
| Detachable Grilles | Yes |
| Speaker System Details | |
| Driver Details | Speaker: woofer driver - 6.5" - paper - cone - dual voice coil ¦ Speaker: tweeter driver - 1" - neodymium - textile - Soft Dome |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 29.72 lbs |
| Cutout & Mounting Dimensions | |
| Diameter | 8.8 in |
