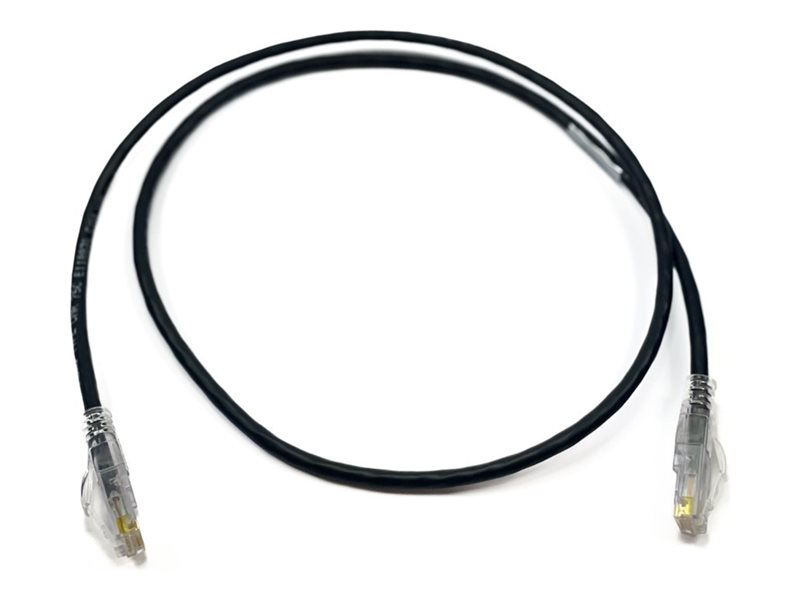

Patch cable - TAA Compliant - RJ-45 (M) to RJ-45 (M) - 12 in - 0.2 in - UTP - CAT 6a - CMR - snagless, 10 Gigabit Ethernet, stranded, riser - black
| Main Specifications | |
|---|---|
| Product Description | Ortronics patch cable - TAA Compliant - 12 in - black |
| Type | Patch cable - CAT 6a - CMR |
| Technology | UTP |
| Wires per Cable | 8 wires |
| Features | Snagless, 10 Gigabit Ethernet, stranded, riser, reduced diameter, modular design, copper conductors, stranded conductor, 50 micron gold-plated connectors, pre-terminated, 300 V rated voltage, HDPE insulation, flexible, non-booted |
| Cable Length | 12 in |
| Diameter | 0.2 in |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Color | Black |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Network Cable Type | Patch cable - CAT 6a - CMR |
| Technology | UTP |
| Jacket Material | PVC |
| American Wire Gauge (AWG) | 28 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Plated Connector | Gold |
| Features | Snagless, 10 Gigabit Ethernet, stranded, riser, reduced diameter, modular design, copper conductors, stranded conductor, 50 micron gold-plated connectors, pre-terminated, 300 V rated voltage, HDPE insulation, flexible, non-booted |
| Cable Length | 12 in |
| Diameter | 0.2 in |
| Color | Black |
| Manufacturer Warranty | |
| Service & Support | 5-year warranty |
| Miscellaneous | |
| Compliant Standards | ANSI/TIA-568.2-E, ISO/IEC 11801-1, RoHS, ANSI/TIA-568-C.2, IEEE 802.3at, IEEE 802.3af, ANSI/TIA/EIA-1096-a, IEC 60603-7, ROHS Directive 2015/863/EU, ROHS Directive 2011/65/EU |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
