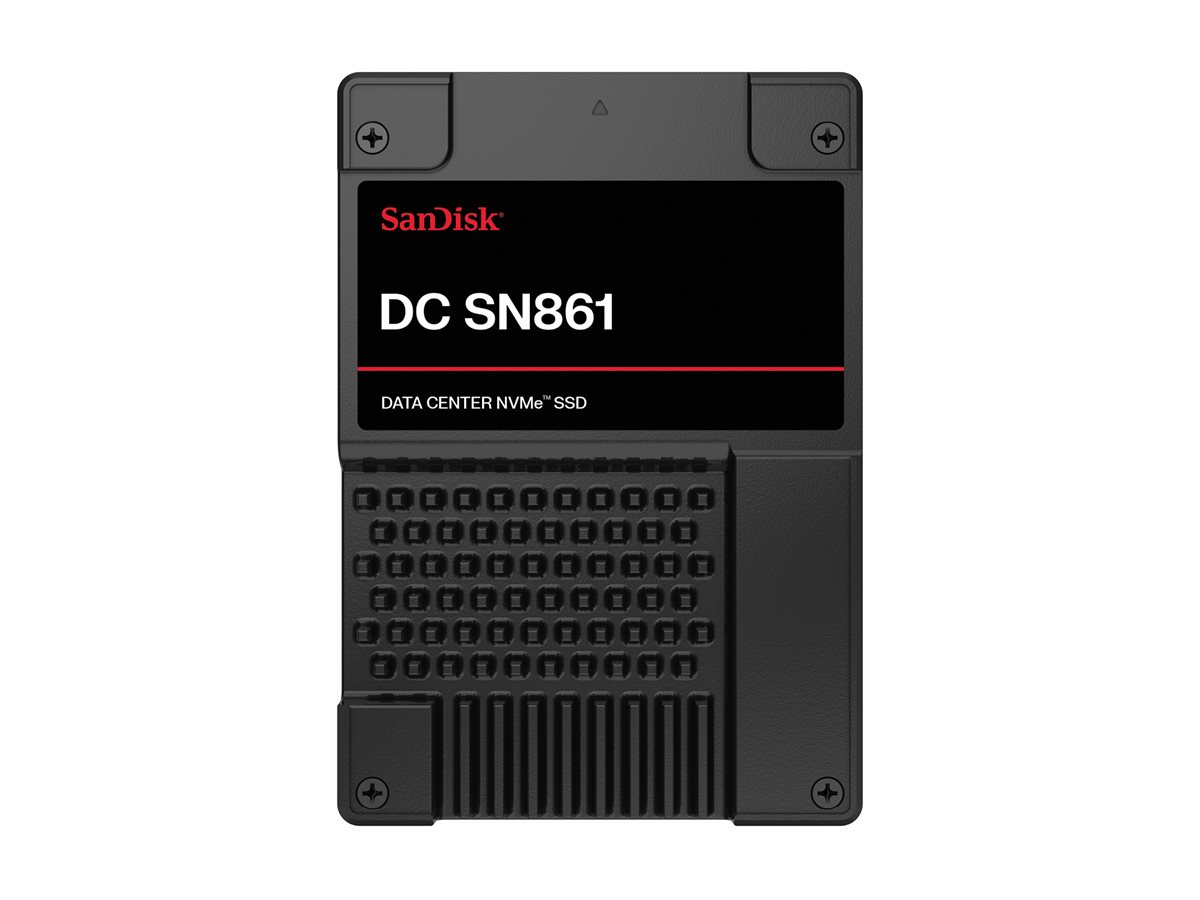

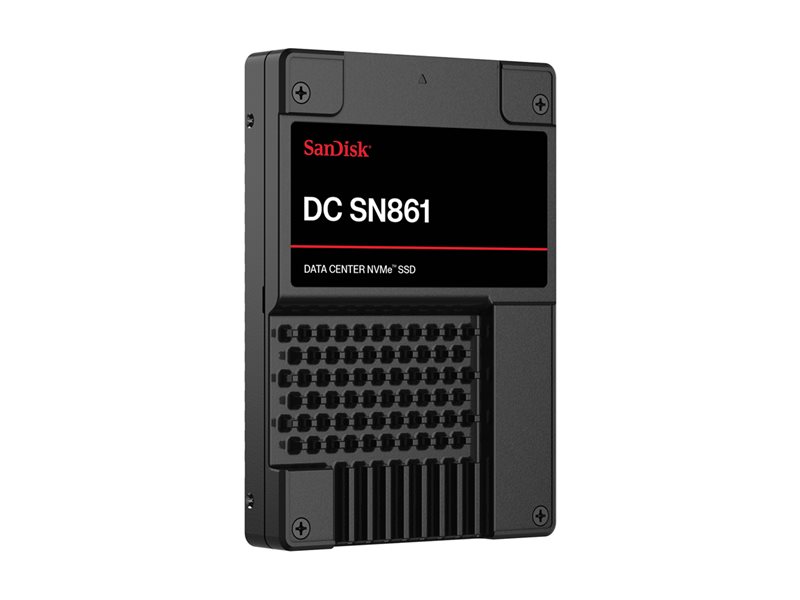

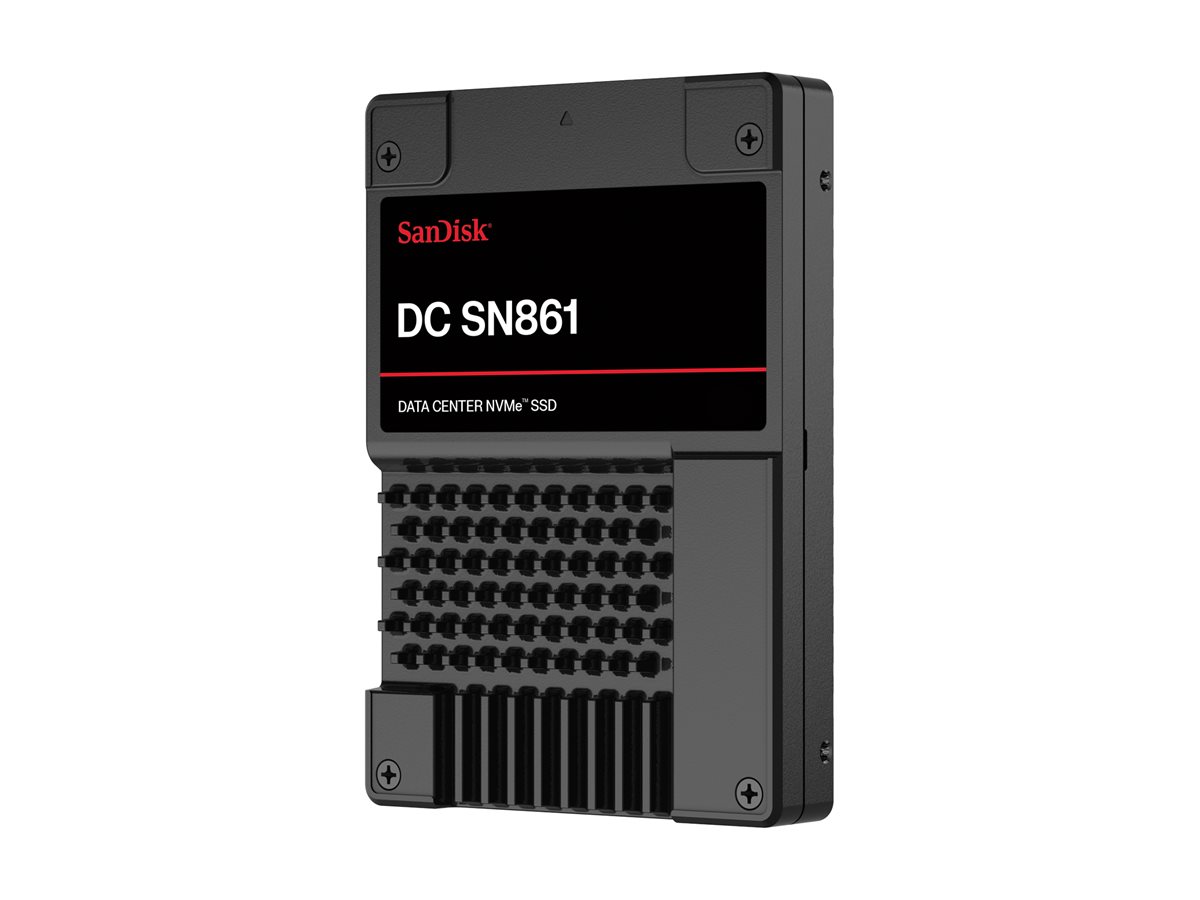

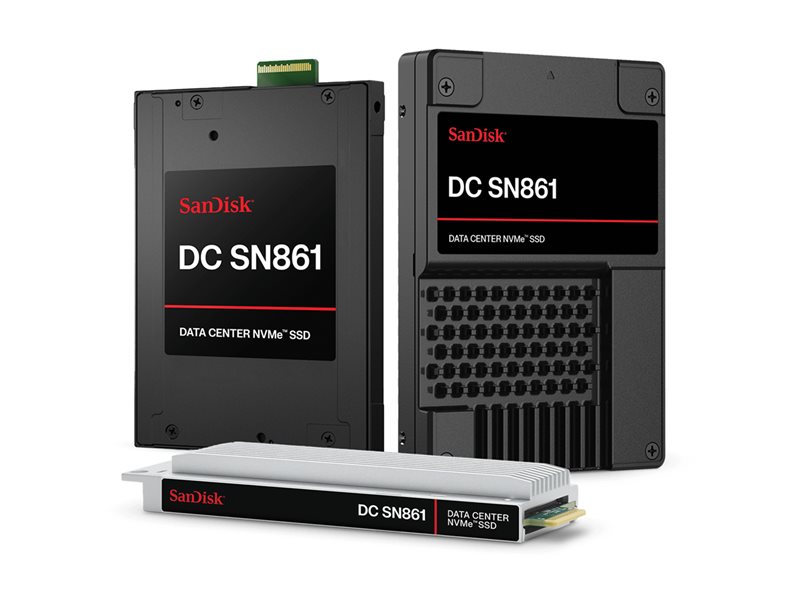

SSD - Data Center - encrypted - 7.68 TB - internal - 2.5" - U.2 PCIe 5.0 x4 (NVMe) - TCG Opal Encryption
| Main Specifications | |
|---|---|
| Product Description | WD Ultrastar DC SN861 - SSD - Data Center - 7.68 TB - U.2 PCIe 5.0 x4 (NVMe) |
| Type | Solid state drive - internal |
| Capacity | 7.68 TB |
| Hardware Encryption | Yes |
| Form Factor | 2.5" |
| Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Drive Class | Data Center |
| Features | NVM Express (NVMe) 2.0, Power Loss Protection (PLP), End-to-end data path protection, high Quality of Service (QoS) |
| Dimensions (WxDxH) | 2.7 in x 4 in x 0.6 in |
| Localization | Worldwide |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 7.68 TB |
| Hardware Encryption | Yes |
| Form Factor | 2.5" |
| Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Features | NVM Express (NVMe) 2.0, Power Loss Protection (PLP), End-to-end data path protection, high Quality of Service (QoS) |
| Width | 2.7 in |
| Depth | 4 in |
| Height | 0.6 in |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Localization | Worldwide |
| Power | |
| Power Consumption | 5 Watt (average idle) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Performance | |
| Drive Writes Per Day (DWPD) | 1 |
| Drive Class | Data Center |
| Internal Data Rate | 13700 MBps (read) / 7500 MBps (write) |
| Maximum 4KB Random Write | 430000 IOPS |
| Maximum 4KB Random Read | 3300000 IOPS |
| Reliability | |
| MTBF | 2.500.000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Expansion & Connectivity | |
| Interfaces | 1 x U.2 PCIe 5.0 x4 (NVMe) |
| Compatible Bay | 2.5" |
