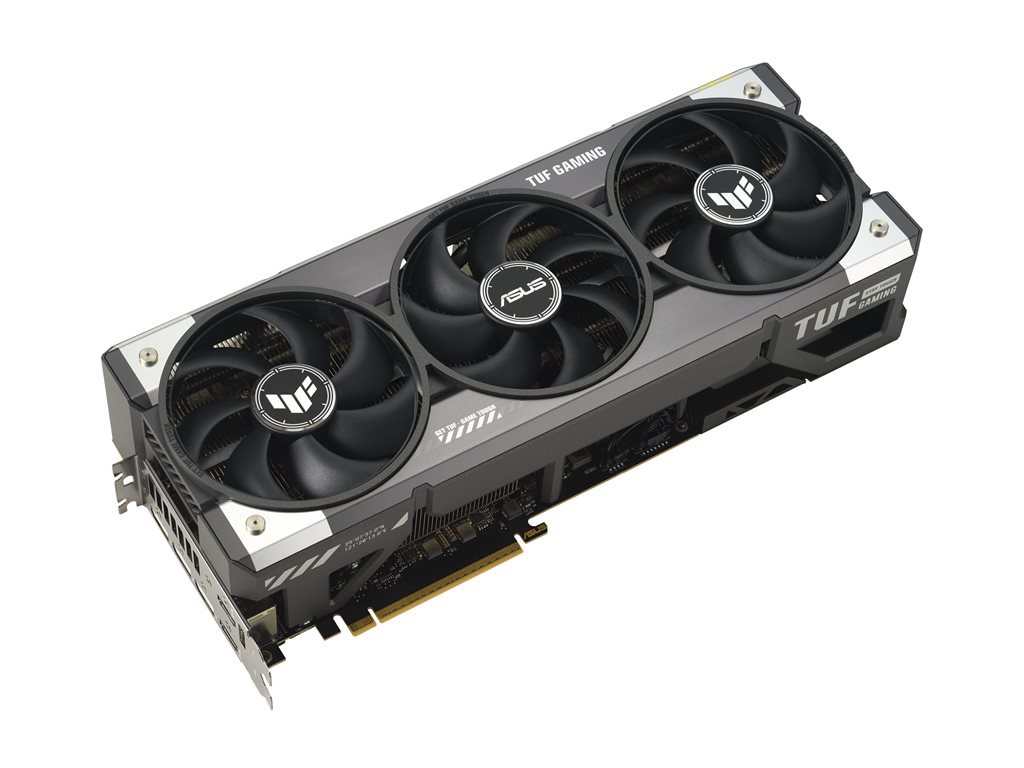

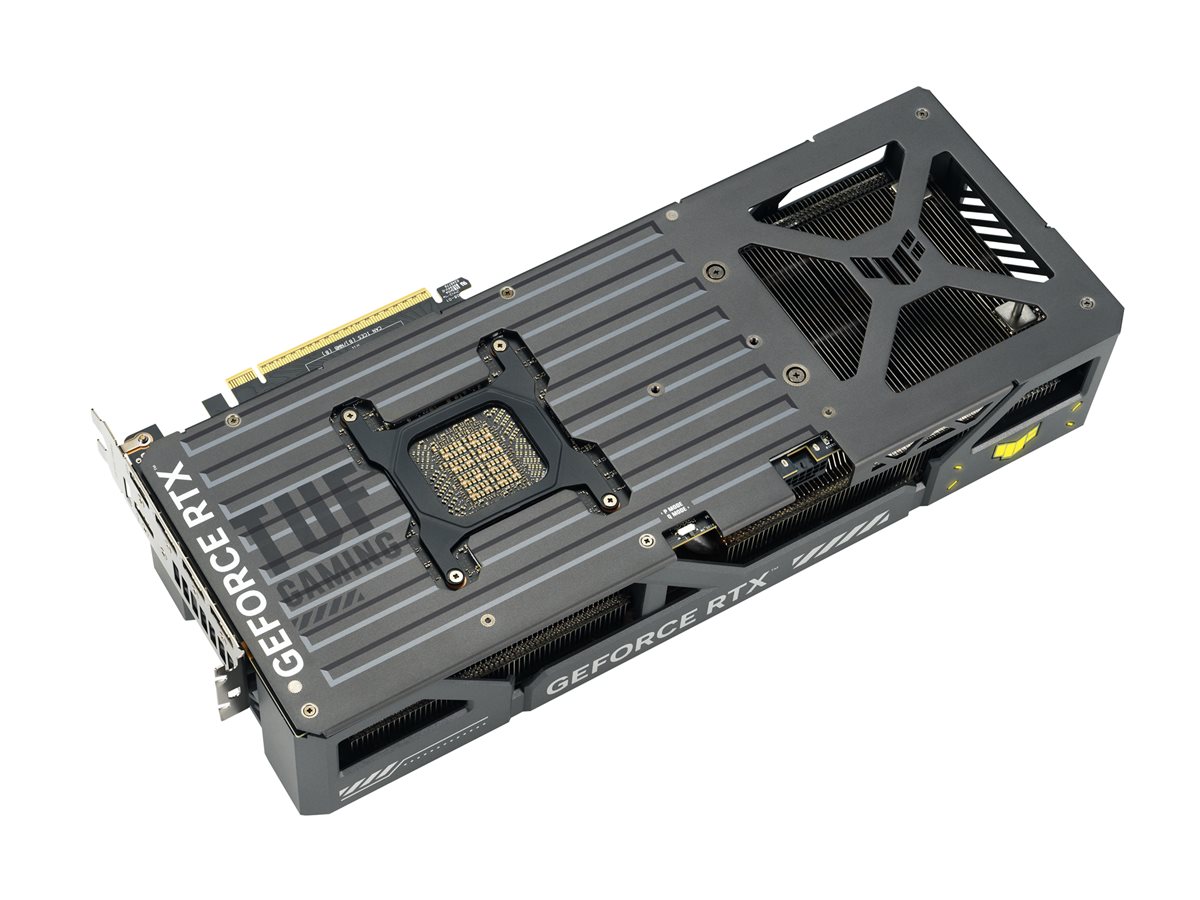

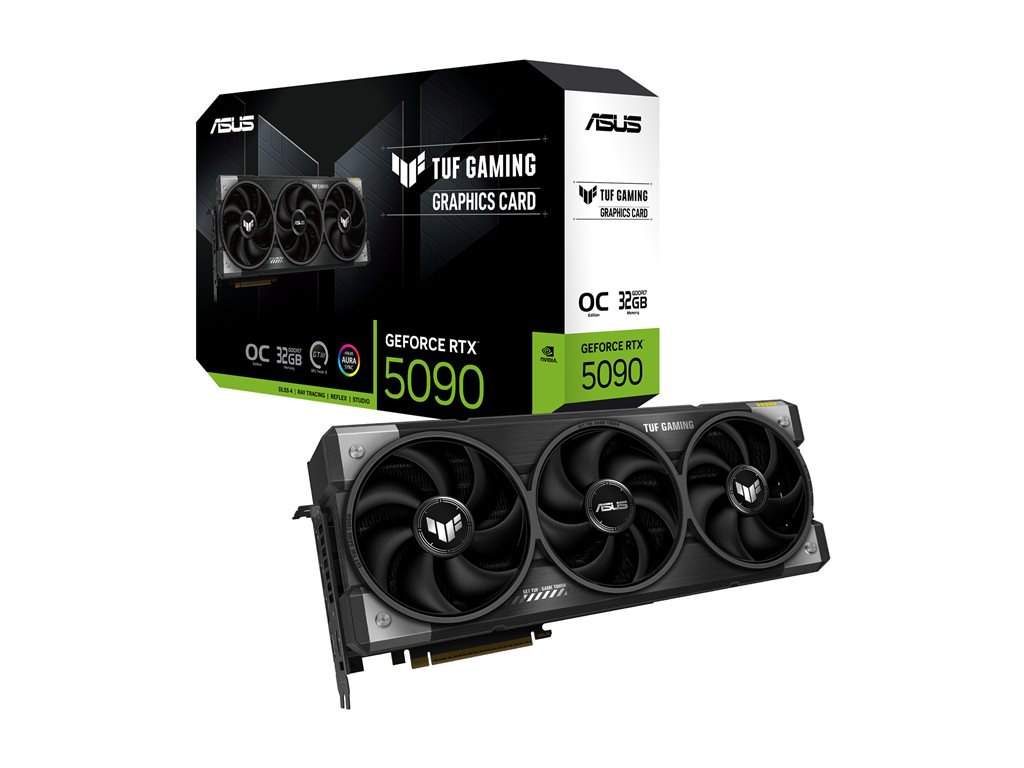

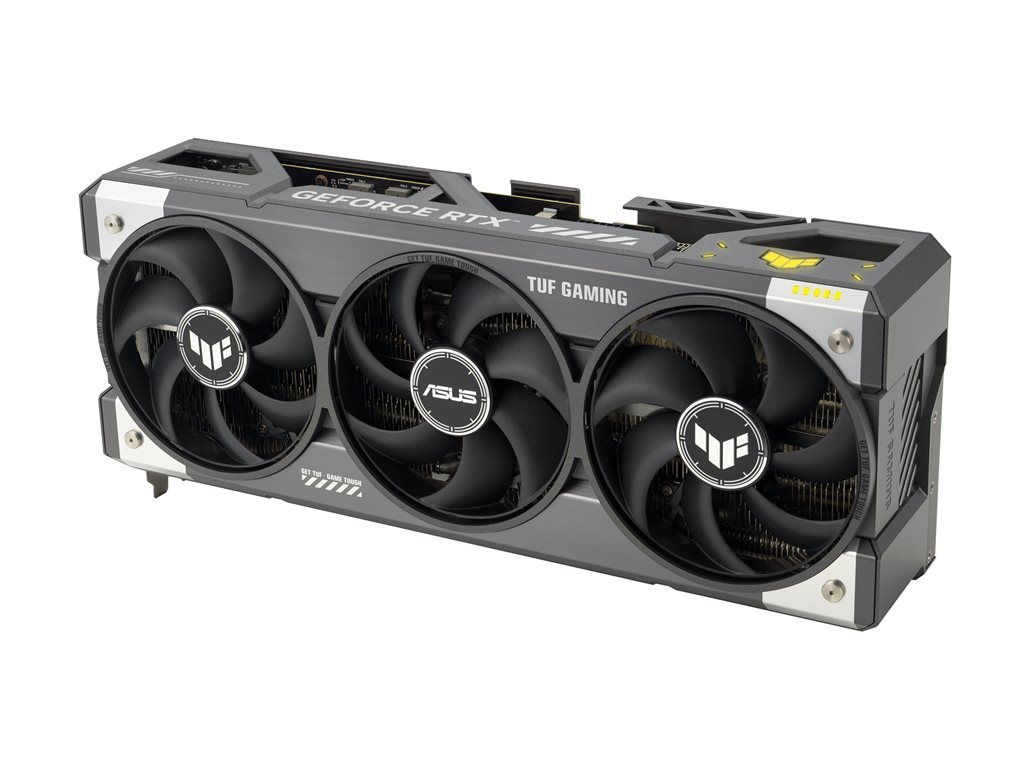

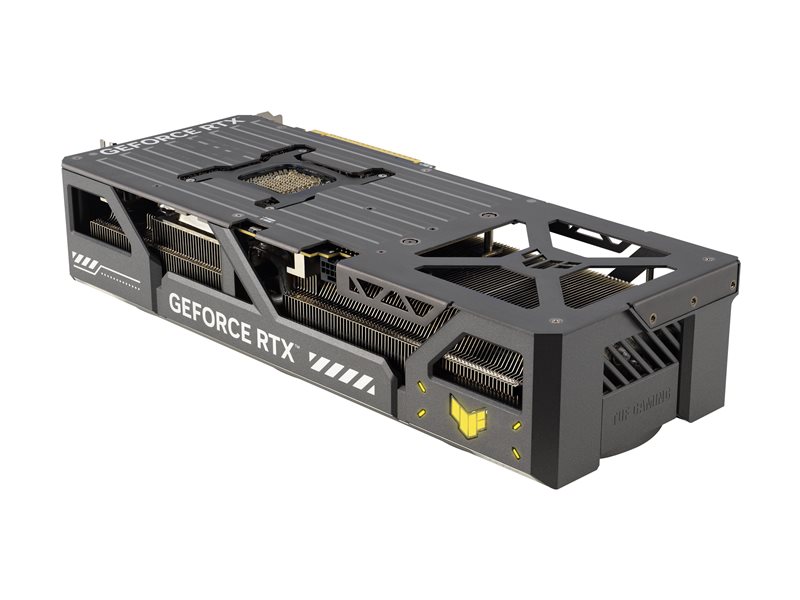

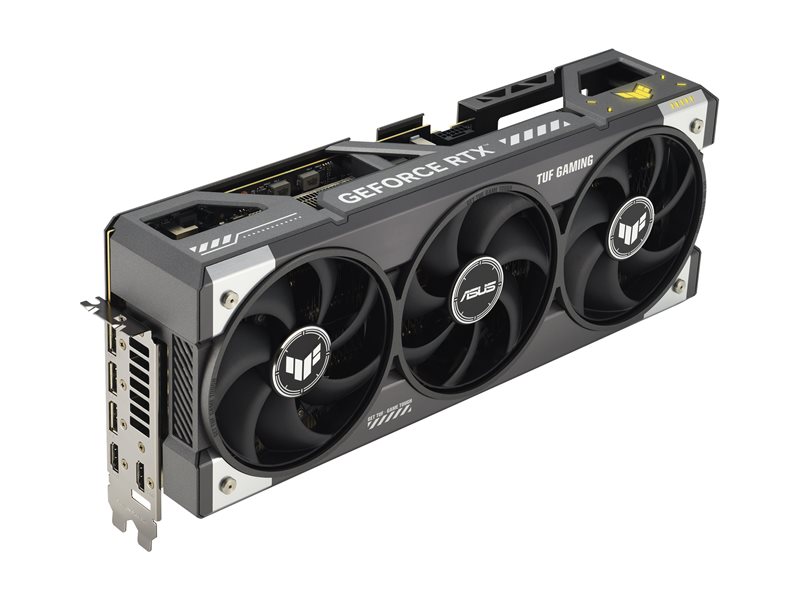

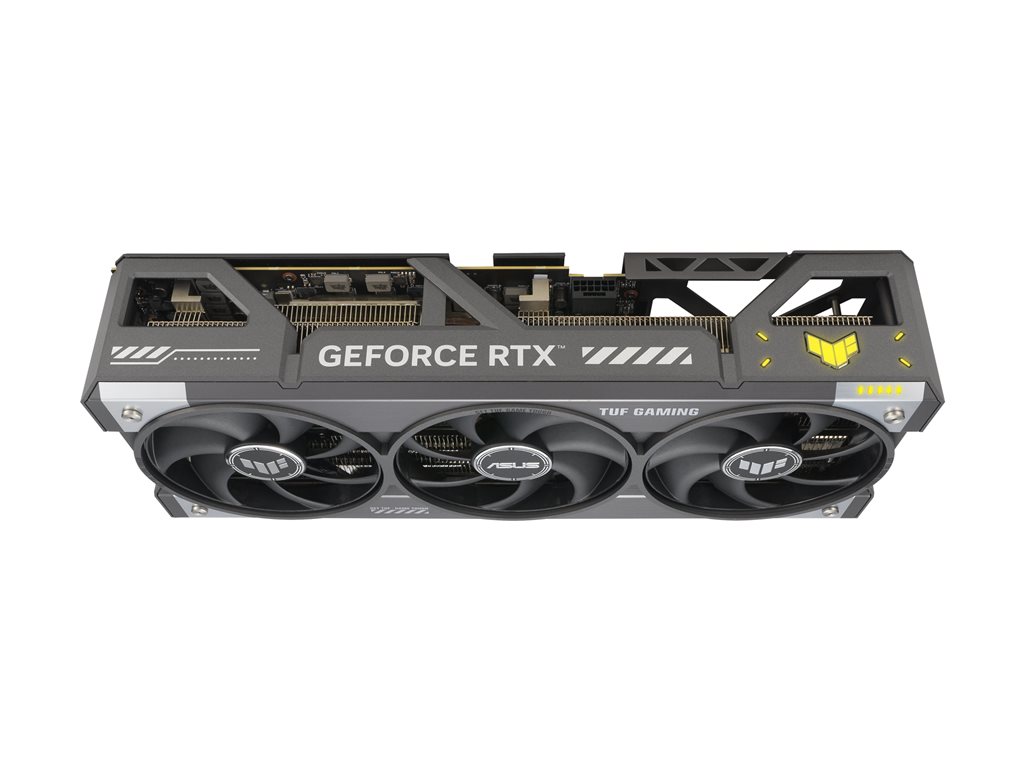

OC Edition - graphics card - GeForce RTX 5090 - 32 GB GDDR7 - PCI Express 5.0 - 2 x HDMI, 3 x DisplayPort
| Main Specifications | |
|---|---|

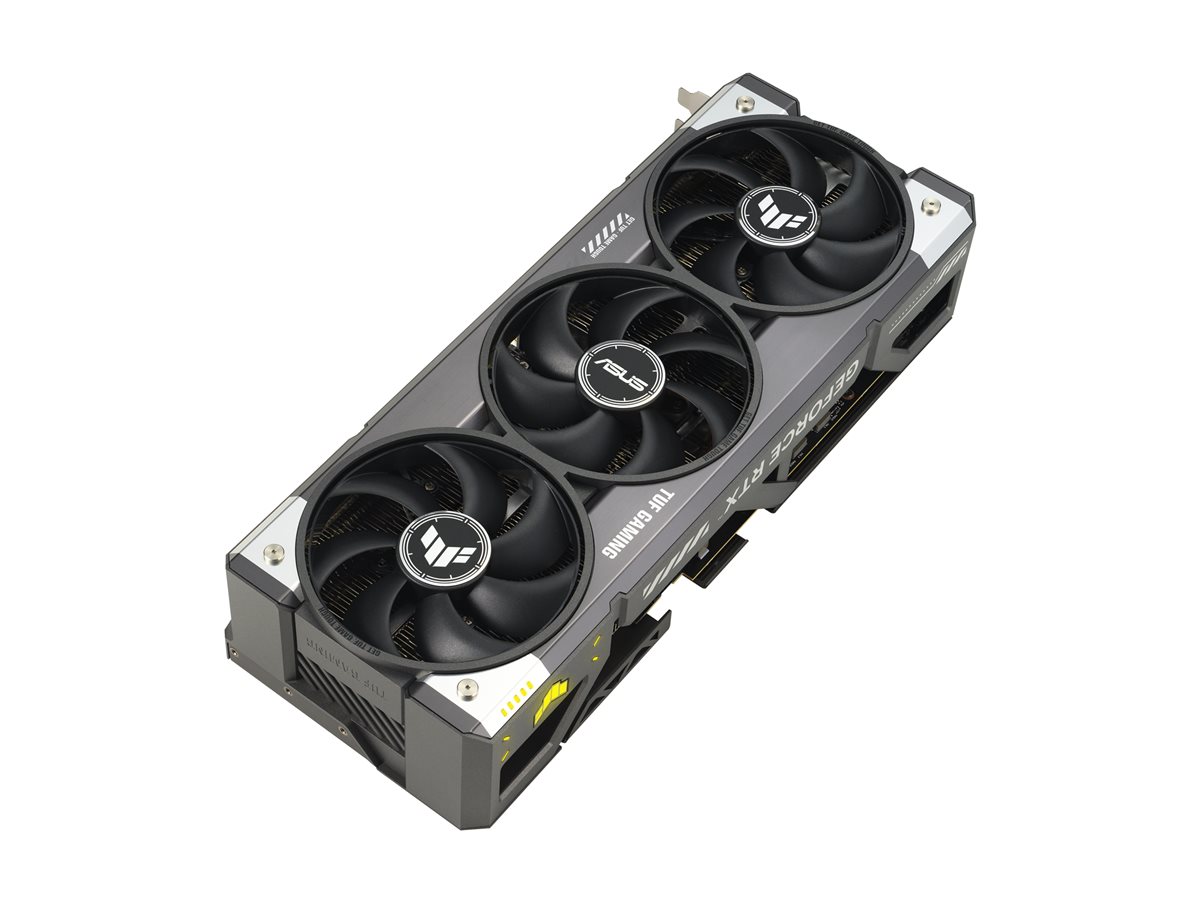

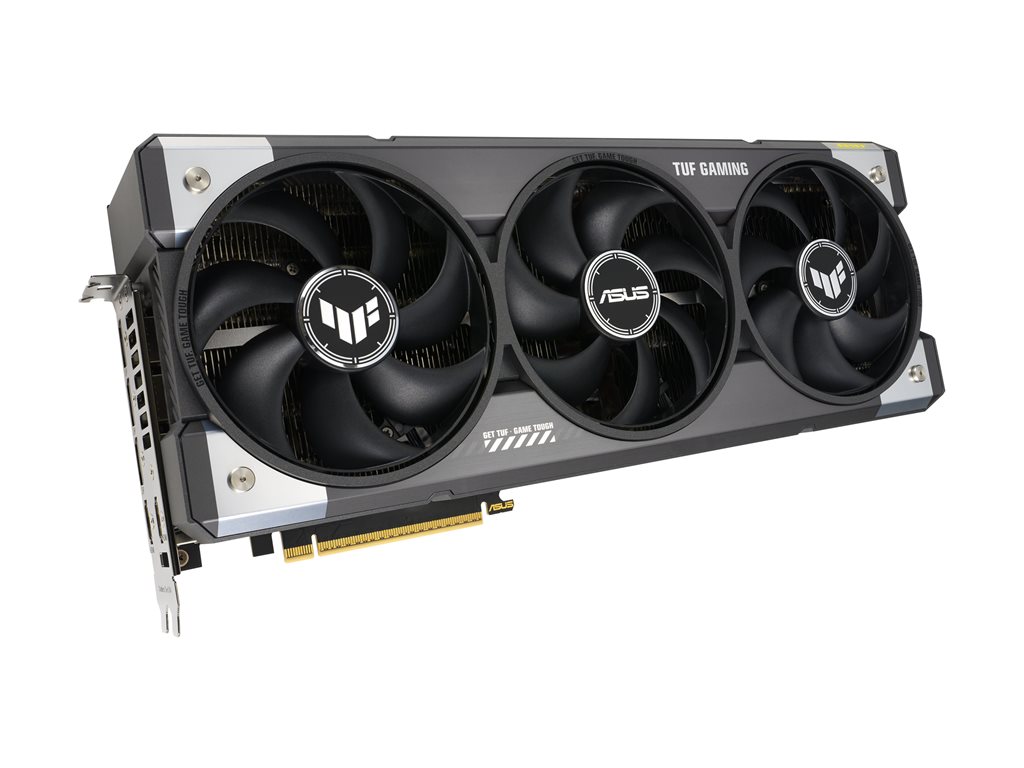

| Product Description | ASUS TUF Gaming GeForce RTX 5090 32GB - OC Edition - graphics card - GeForce RTX 5090 - 32 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | NVIDIA GeForce RTX 5090 |
| Memory | 32 GB GDDR7 |
| Memory Speed | 28 Gbps |
| Boost Clock (OC) | 2580 MHz |
| CUDA Cores | 21760 |
| Shader Clock | 2550 MHz |
| Memory Interface | 512-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |

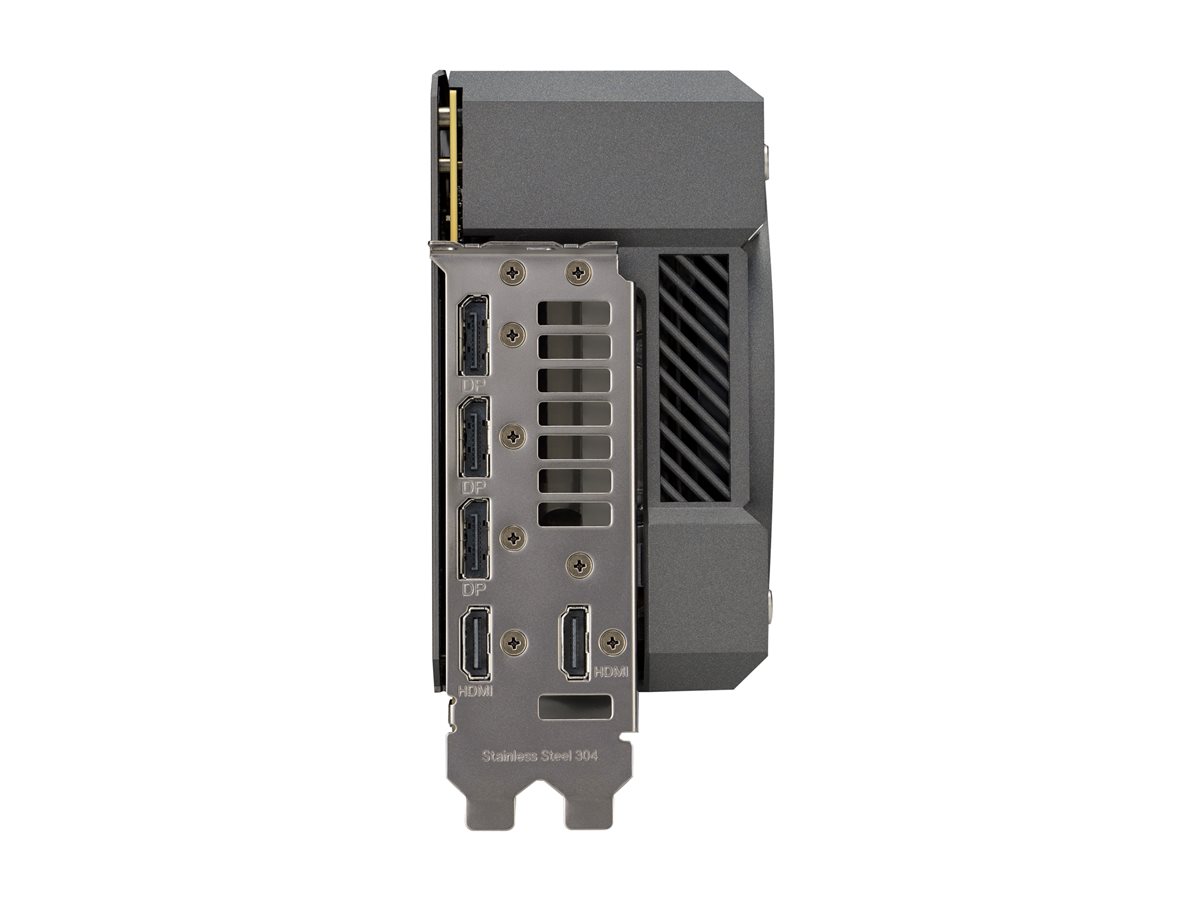

| Interfaces Details | 3 x DisplayPort ¦ 2 x HDMI |
| API Supported | OpenGL 4.6 |
| Dimensions (WxDxH) | 2.8 in x 13.7 in x 5.7 in |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | NVIDIA GeForce RTX 5090 |
| Boost Clock (OC) | 2580 MHz |
| CUDA Cores | 21760 |
| Shader Clock | 2550 MHz |
| VR Ready | Yes |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ 2 x HDMI |
| API Supported | OpenGL 4.6 |
| Features | ARGB Lighting, Vapor chamber cooling technology, Axial-tech Fan Design, 5th gen Tensor Cores, 4th gen Ray Tracing Cores, NVIDIA DLSS 4, NVIDIA Reflex 2, NVIDIA Avatar Cloud Engine (ACE), NVIDIA G-Sync ready, MaxContact technology, AUTO-EXTREME technology, HDCP |
| Memory | |
| Size | 32 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 28 Gbps |
| Bus Width | 512-bit |
| Miscellaneous | |

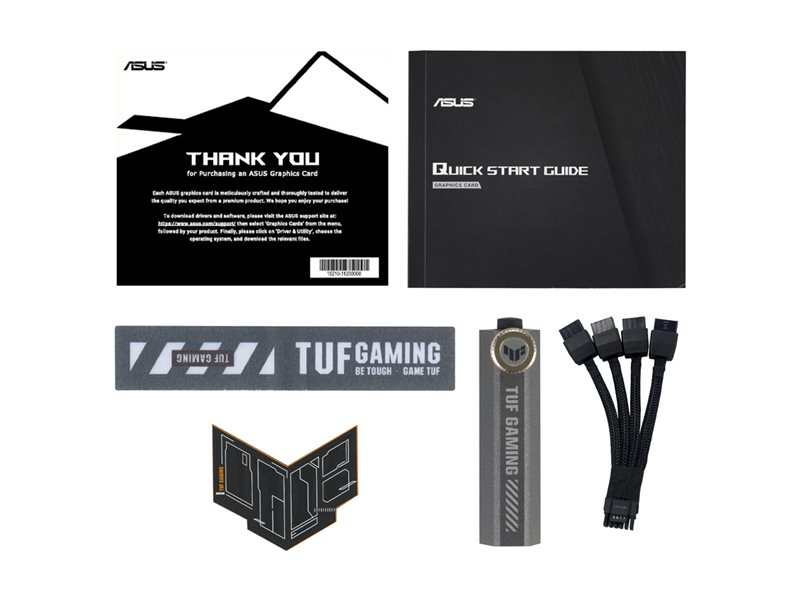

| Included Accessories | Graphics card holder, hook-and-loop fastener, thank you card, 4 x 8 pin to 12VHPWR cable |
| Software Included | ASUS GPU Tweak III |
| Width | 2.8 in |
| Depth | 13.7 in |
| Height | 5.7 in |
| System Requirements | |
| Required Power Supply | 1000 W |
| Additional Requirements | 16 pin PCI Express power connector, 3 adjacent PCI slots |
