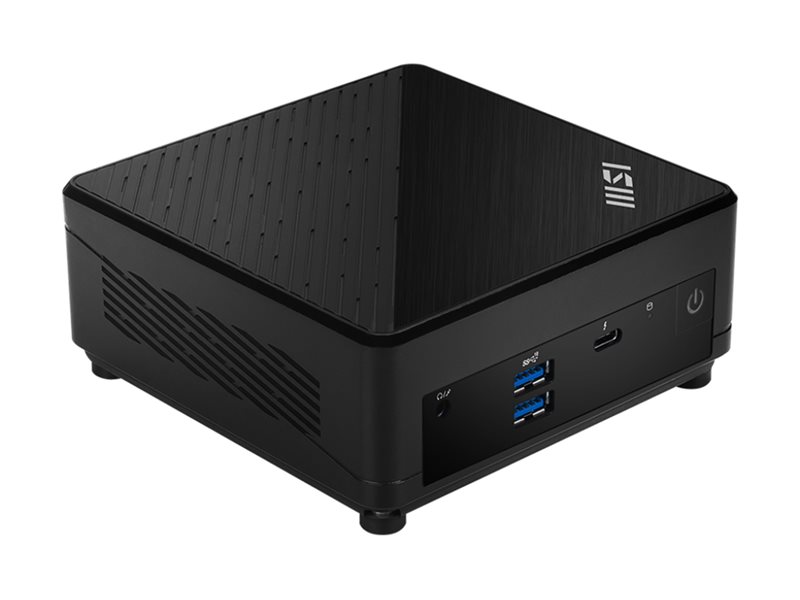

Mini PC Core i5 1235U / up to 4.4 GHz - RAM 8 GB - SSD 500 GB - NVMe - Intel Iris Xe Graphics - IEEE 802.11ax (Wi-Fi 6E), Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth - Win 11 Pro - monitor: none
| Main Specifications | |
|---|---|
| Product Description | MSI Cubi 5 12M 444US - mini PC Core i5 1235U 1.3 GHz - 8 GB - SSD 500 GB |
| Type | Personal computer - mini PC |
| Processor | Intel Core i5 (12th Gen) 1235U / 1.3 GHz (up to 4.4 GHz, (10-core) |
| Processor Main Features | Intel Smart Cache |
| Cache Memory | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | 8 GB (installed) / 64 GB (max) - DDR4 SDRAM |
| Storage Controller | SATA |
| Hard Drive | SSD 500 GB - PCI Express - M.2 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel Iris Xe Graphics |
| Networking | 802.11a, Wi-Fi 5, Wi-Fi 6E, 802.11b/g/n, 1GbE, 2.5GbE, Bluetooth |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Dimensions (WxDxH) | 4.9 in x 4.9 in x 2.1 in |
| Weight | 19.4 oz |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Personal computer |
| Product Form Factor | Mini PC |
| Embedded Security | Firmware Trusted Platform Module (TPM) Security Chip |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 0 (free) x M.2 Card |
| Interfaces | 1 x headphones/microphone (1 in front) ¦ 1 x Thunderbolt 4/DisplayPort 1.4/USB-C (1 front) ¦ 1 x HDMI output (1 rear) ¦ 1 x DisplayPort (1 rear) ¦ 4 x USB 3.2 Gen 2 (2 front, 2 rear) ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm |
| RAM | |
| Installed Size | 8 GB (installed) / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 65 watt |
| Storage Controller | |
| Type | 1 x SATA |
| Cache Memory | |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel Iris Xe Graphics |
| Video Interfaces | HDMI, DisplayPort, USB-C |
| Max Monitors Supported | 3 |
| Operating System / Software | |
| OS Provided | Windows 11 Pro |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 500 GB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe) |
| Dimensions & Weight | |
| Width | 4.9 in |
| Depth | 4.9 in |
| Height | 2.1 in |
| Weight | 19.4 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 3.09 lbs |
| Processor / Chipset | |
| CPU | Intel Core i5 (12th Gen) 1235U |
| Clock Speed | 1.3 GHz (P-core) / 900 MHz (E-core) |
| Max Turbo Speed | 4.4 GHz (P-core) / 3.3 GHz (E-core) |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
