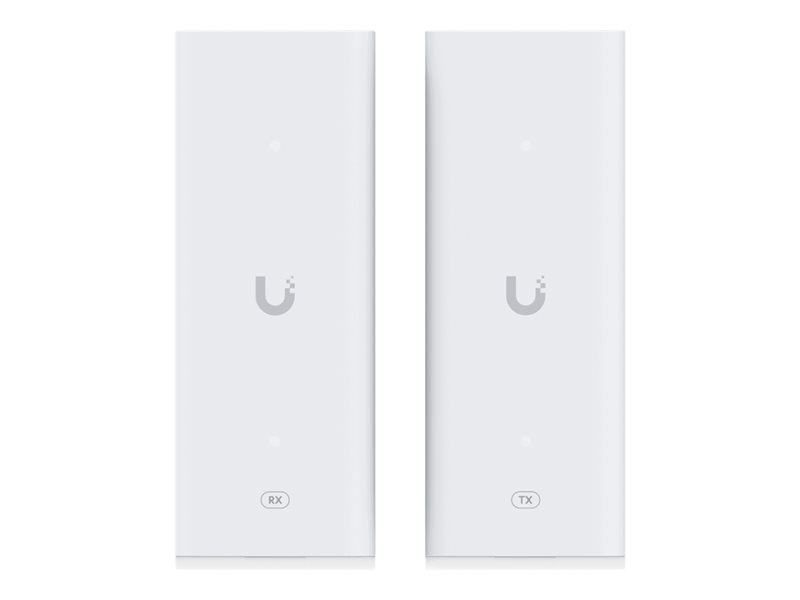

Transmitter and receiver - network/power extender - 100Mb LAN - 10Base-T, 100Base-TX
| Main Specifications | |
|---|---|
| Product Description | Ubiquiti UniFi - transmitter and receiver - network/power extender - 100Mb LAN |
| Device Type | Network/power extender |
| Form Factor | External |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Transfer Rate | 85 Mbps |
| Data Link Protocol | 100Mb LAN |
| Power Over Ethernet (PoE) | PoE++ |
| Power | DC 48 V (PoE+) / 50 V (PoE++) V |
| General | |
| Device Type | Network/power extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX (PoE++ input) - RJ-45 female ¦ 1 x power - BNC ¦ 1 x Ethernet 10Base-T/100Base-TX (PoE+ input) - RJ-45 female ¦ 1 x power - BNC |
| Miscellaneous | |
| Compliant Standards | FCC, IC |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Link Protocol | 100Mb LAN |
| Data Transfer Rate | 85 Mbps |
| Features | White LED, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), polycarbonate enclosure |
| Power | |
| Power Over Ethernet (PoE) | PoE++ |
| Voltage Required | DC 48 V (PoE+) / 50 V (PoE++) V |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 1.6 in x 1 in x 4.1 in / 2.7 oz ¦ Receiver: 1.6 in x 1 in x 4.1 in / 2.8 oz |
