Micro PC Core i7 10700T / up to 4.5 GHz - RAM 8 GB - SSD 512 GB - UHD Graphics 630 - Gigabit Ethernet - Ubuntu - monitor: none
| Main Specifications | |
|---|---|
| Product Description | DT Research 139M Medical - Micro PC Core i7 10700T 2 GHz - 8 GB - SSD 512 GB |
| Type | Personal computer - Micro PC |
| Processor | Intel Core i7 (10th Gen) 10700T / 2 GHz (up to 4.5 GHz, (8-core) |
| Cache Memory | 16 MB |
| Cache Per Processor | 16 MB |
| RAM | 8 GB (installed) / 64 GB (max) |
| Hard Drive | SSD 512 GB |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics 630 |
| Networking | 1GbE |
| OS Provided | Ubuntu |
| Dimensions (WxDxH) | 1.7 in x 9.1 in x 8 in |
| Weight | 4.63 lbs |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Personal computer |
| Product Form Factor | Micro PC |
| Expansion / Connectivity | |

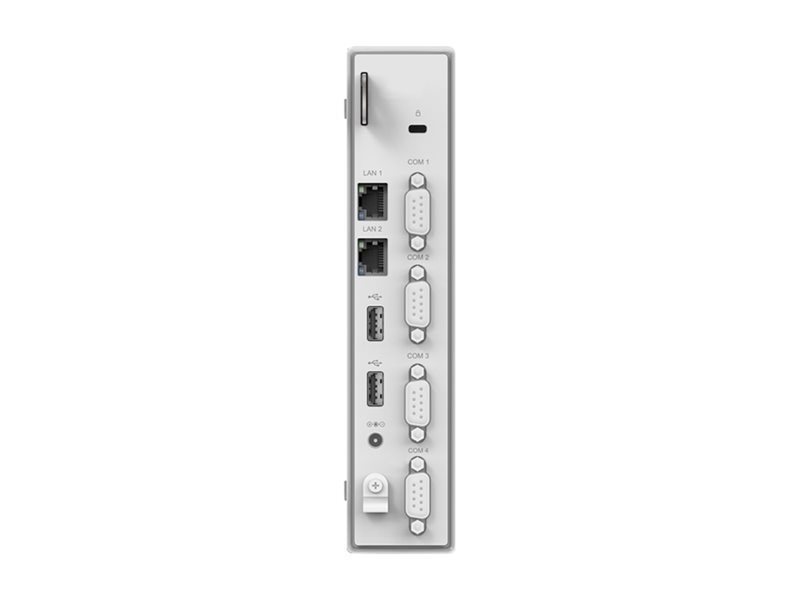

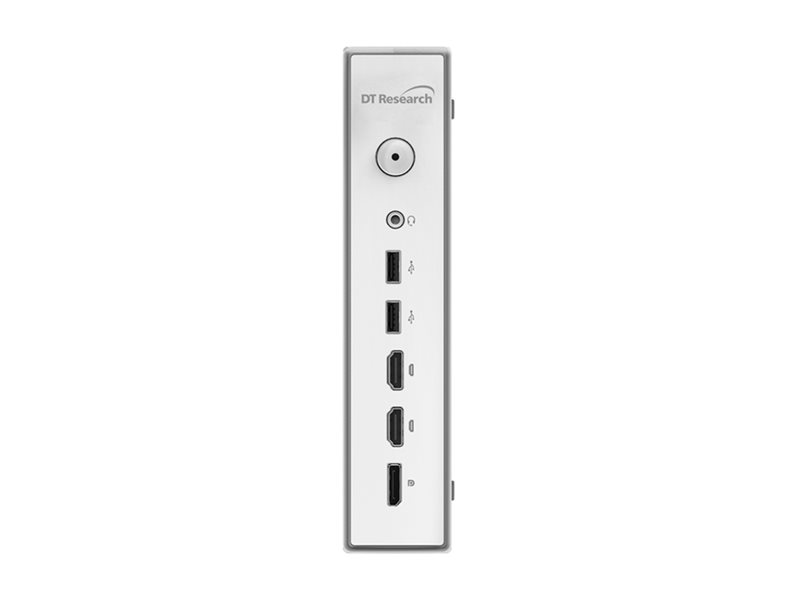

| Interfaces | 2 x HDMI (2 front) ¦ 1 x DisplayPort (1 front) ¦ 1 x audio connector (1 front) ¦ 4 x USB 3.0 (2 front, 2 rear) ¦ 4 x serial (RS-232) (4 rear) ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 (2 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Power adapter, power cable |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 75 x 75 mm, 100 x 100 mm |
| Compliant Standards | ANSI/AAMI ES60601-1, NIST, IEC 60601-1-2, FCC part 18, FCC Part 15 Class B, EMC, RED, IEC 62368-1, RCM, CCC |
| RAM | |
| Installed Size | 8 GB (installed) / 64 GB (max) |
| Slots | 2 (total) |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Storage Controller | |
| RAID Level | RAID 0, RAID 1 |
| Cache Memory | |
| Installed Size | 16 MB |
| Cache Per Processor | 16 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Monitor Features | Antimicrobial enclosure, fanless cooling, aluminum enclosure |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 630 |
| Video Interfaces | HDMI, DisplayPort |
| Operating System / Software | |
| OS Provided | Ubuntu |
| Hard Drive | |
| Type | SSD |
| Capacity | 1 x 512 GB |
| Features | RAID 0 support, RAID 1 support |
| Dimensions & Weight | |
| Width | 1.7 in |
| Depth | 9.1 in |
| Height | 8 in |
| Weight | 4.63 lbs |
| Processor / Chipset | |
| CPU | Intel Core i7 (10th Gen) 10700T |
| Clock Speed | 2 GHz |
| Max Turbo Speed | 4.5 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
