Document camera - color - 13 MP - 4096 x 3072 - audio - HDMI - USB - MJPEG, YUV - DC 5 V
| Main Specifications | |
|---|---|

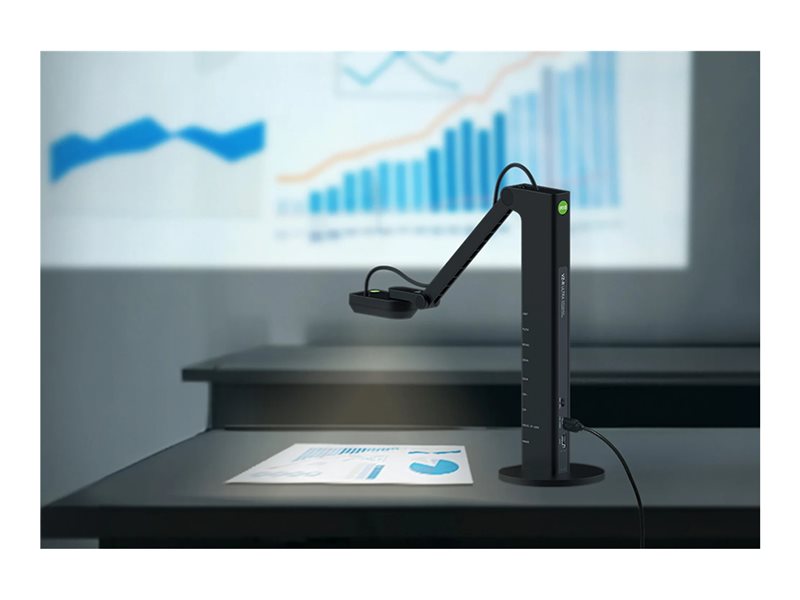

| Product Description | IPEVO VZ-R ULTRA - document camera |
| Device Type | Document camera |
| Audio | Yes: built-in microphone |
| Dimensions (WxDxH) | 1.6 in x 3.1 in x 11.9 in |
| Weight | 2.2 lbs |
| Color | Black |
| Connectivity Technology | Wired |
| Camera | Color |
| Max Resolution | 4096 x 3072 |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 3072p, 2448p, 2160p, 1080p |
| Optical Sensor Type | CMOS - 1/3.06" - 13 MP |
| Focal Length | 3.46 mm |
| Focus Adjustment | Automatic |
| Lens Iris | F/2.2 |
| Interfaces | USB, HDMI |
| Cables Included | 1 - USB-C to USB-A cable - 5 ft |
| Voltage | DC 5 V |
| Features | Omni-directional microphone, 60dB signal-to-noise ratio, Webcam Support (UVC), noise reduction, LED lamp, LED indicator, focus button, filter button, rotate button, zoom in button, zoom out button, exposure control |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | 32 °F - 104 °F; 10 - 95% relative humidity |
| General | |
| Device Type | Document camera |
| Audio Support | Yes: built-in microphone |
| Audio Formats | PCM |
| Connectivity Technology | Wired |
| Width | 1.6 in |
| Depth | 3.1 in |
| Height | 11.9 in |
| Weight | 2.2 lbs |
| Expansion / Connectivity | |
| Ports | USB-C ¦ HDMI |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Base, screwdriver, 4 screws |
| Cables Included | 1 x USB-C to USB-A cable - 5 ft |
| Compliant Standards | RoHS, WEEE, Plug and Play |
| Color | Black |
| Power | |
| Power Requirements | DC 5 V - 0.9 A |
| Software / System Requirements | |
| OS Required | Windows 8 or later, Apple MacOS X 10.13 or later, Google Chrome OS, Android 11 or later |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 10 - 95% |
| Camera | |
| Type | Color |
| Digital Video Format | MJPEG, YUV |
| Max Digital Video Resolution | 4096 x 3072 |
| Video Modes | 3072p, 2448p, 2160p, 1080p |
| Digital Zoom | 4 |
| Exposure Range | 1/7.5 sec - 1/30000 sec |
| Video Capture | 4096 x 3072 @ 15 fps ¦ 3264 x 2448 @ 30 fps ¦ 3840 x 2160 @ 30 fps ¦ 1920 x 1080 @ 30 fps ¦ 1920 x 1080 @ 60 fps |
| Features | Omni-directional microphone, 60dB signal-to-noise ratio, Webcam Support (UVC), noise reduction, LED lamp, LED indicator, focus button, filter button, rotate button, zoom in button, zoom out button, exposure control |
| Lens Construction | |
| Focal Length | 3.46 mm |
| Lens Iris | F/2.2 |
| Focus Adjustment | Automatic |
| Diagonal Field of View (degree) | 80 |
| Image Sensor | |
| Type | 13 MP CMOS 1/3.06" |
| Interfaces | |
| Video | HDMI |
| Computer Interface | USB |
