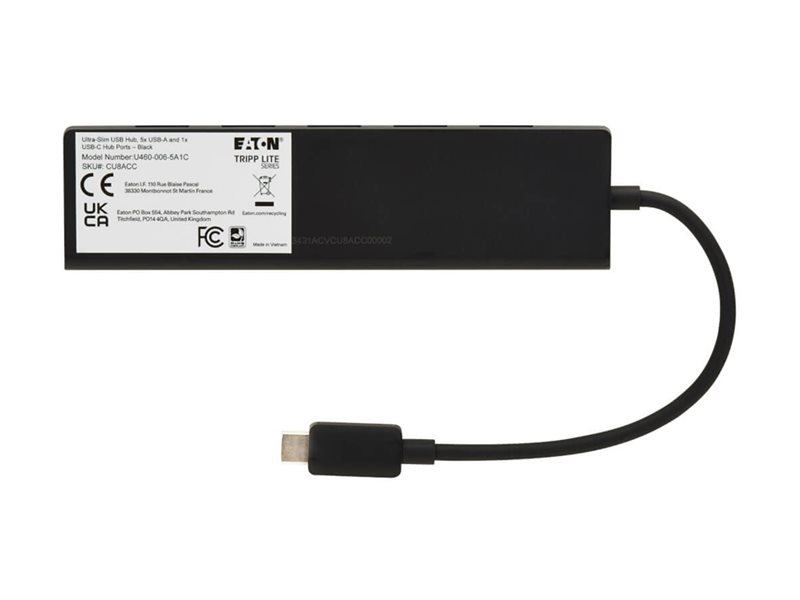

Hub - 1 x USB-C 3.2 Gen 2 + 3 x USB-A 3.2 Gen 2 + 2 x USB-A 2.0 - desktop - for P/N: GC1800L, GC3000L, U420-05M-G2
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite series 6-Port Slim USB Hub, USB 3.2 Gen 2 and USB-A 2.0 Hub Ports, USB-C Connector with USB-A Adapter, Black - hub - 6 ports |
| Device Type | Hub - 6 ports |
| Subtype | USB |
| Ports | 1 x USB-C 3.2 Gen 2 + 3 x USB-A 3.2 Gen 2 + 2 x USB-A 2.0 |
| Performance | Data transfer rate: 10 Gbps |
| Features | Aluminum housing, bus powered, nickel plated connector |
| Compliant Standards | USB 3.2 Gen 2, USB 3.1 Gen 1, USB 3.0, USB 2.0, USB 1.1 |
| Dimensions (WxDxH) | 5.3 in x 1.3 in x 0.4 in |
| Weight | 1.76 oz |
| Color | Black |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: GC1800L, GC3000L, U420-05M-G2 |
| General | |
| Device Type | Hub - 6 ports |
| Enclosure Type | Desktop |
| Subtype | USB |
| Ports | 1 x USB-C 3.2 Gen 2 + 3 x USB-A 3.2 Gen 2 + 2 x USB-A 2.0 |
| Performance | Data transfer rate: 10 Gbps |
| Features | Aluminum housing, bus powered, nickel plated connector |
| Compliant Standards | USB 3.2 Gen 2, USB 3.1 Gen 1, USB 3.0, USB 2.0, USB 1.1 |
| Expansion / Connectivity | |
| Interfaces | 3 x USB 3.2 Gen 2 Type A 0.9A charging port ¦ 1 x USB 3.2 Gen 2 Type C 1.5A charging port ¦ 2 x USB 2.0 Type A 0.9A charging port |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |
| Cables Included | 1 x USB-C 3.2 Gen 1 cable - 4.7 in ¦ 1 x USB-C to USB-A adapter |
| Compliant Standards | Plug and Play, EN 55032, EN 55035, ICES, FCC, REACH, RoHS, UKCA, WEEE |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Min Storage Temperature | 14 °F |
| Max Storage Temperature | 176 °F |
| Humidity Range Storage | 25 - 93% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 5.3 in |
| Depth | 1.3 in |
| Height | 0.4 in |
| Weight | 1.76 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.7 in |
| Shipping Depth | 3.5 in |
| Shipping Height | 0.8 in |
| Shipping Weight | 2.12 oz |
| Compatibility Information | |
| Designed For | P/N: GC1800L, GC3000L, U420-05M-G2 |
