Audio/video over IP encoder
| Main Specifications | |
|---|---|
| Product Description | ZeeVee ZyPer4K Z4KHDMIENCC3U Copper audio/video over IP encoder |
| Type | Audio/video over IP encoder |
| Dimensions (WxDxH) | 9 in - 5.7 in - 1.5 in |
| Weight | 2.36 lbs |
| Manufacturer Warranty | 3 years |
| General | |
| Type | Audio/video over IP encoder |
| Width | 9 in |
| Depth | 5.7 in |
| Height | 1.5 in |
| Weight | 2.36 lbs |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Power | |
| Voltage Required | AC 120/230 V |
| Frequency | 50/60 Hz |
| Power Consumption | 15 Watt |
| Low Voltage Power | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Kit Content | |
| Kit Content | (1) x power adapter |
| Terminals | |

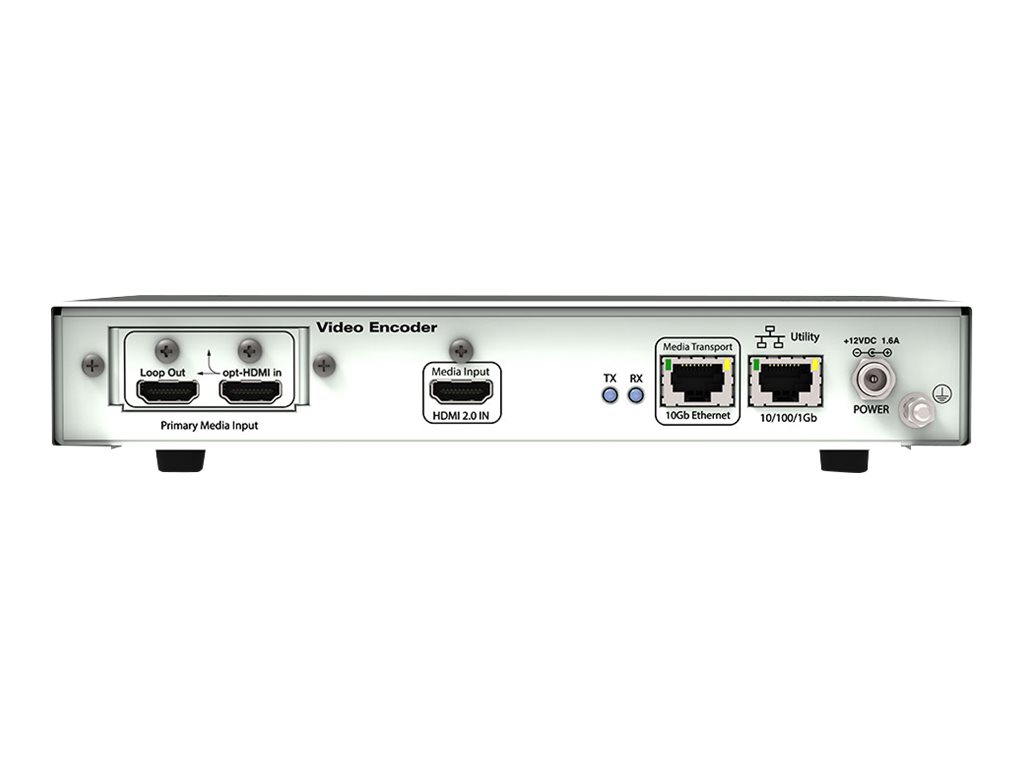

| Terminals | (2) x network - RJ-45 ¦ (1) x HDMI input - 19 pin HDMI Type A - with loop through ¦ (1) x HDMI input - 19 pin HDMI Type A ¦ (1) x unbalanced audio input - mini-phone stereo 3.5 mm ¦ (1) x infrared input - mini-phone 3.5 mm ¦ (1) x infrared output - mini-phone 3.5 mm ¦ (1) x serial - 9 pin D-Sub (DB-9) ¦ (2) x USB - 4 pin USB type A |
| Studio & Production Equipment | |
| Features | HDCP 2.2 compliant, 4K60 4:4:4 signal support |
