Motherboard - micro ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - Bluetooth, 2.5 Gigabit LAN, Wi-Fi 6E - onboard graphics (CPU required) - HD Audio (8-channel)
| Main Specifications | |
|---|---|

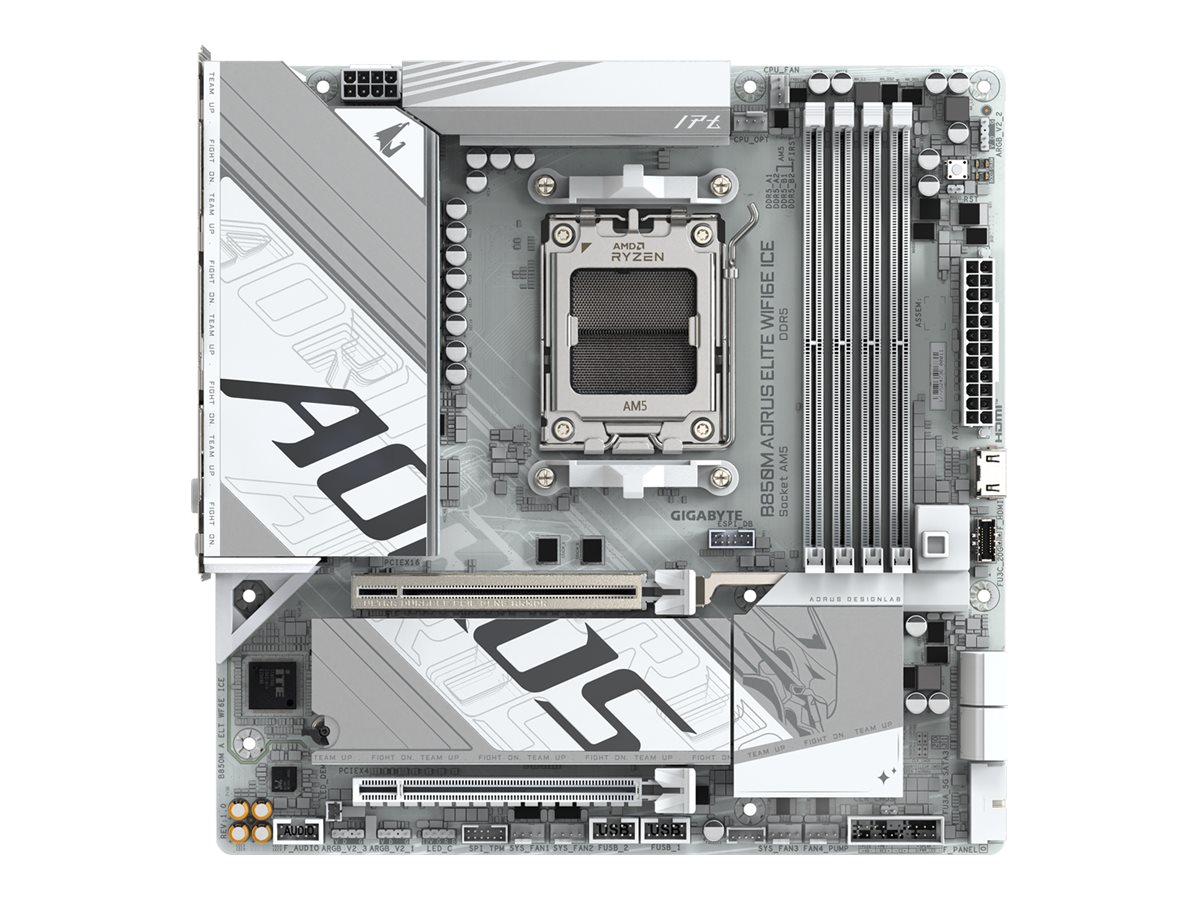

| Product Description | AORUS B850M ELITE WIFI6E ICE - motherboard - micro ATX - Socket AM5 - AMD B850 |
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B850 |
| Processor Socket | 1 x Socket AM5 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Max RAM Size | 256 GB |
| RAM Supported | 4 DIMM slots - DDR5, non-ECC, unbuffered |
| Storage Ports | 4 x SATA-600 (RAID), 2 x M.2 |
| USB / FireWire Ports | 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 5 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | Bluetooth 5.3, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| General | |
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B850 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interfaces | 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 2 ¦ 5 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x DisplayPort ¦ 2 x antenna ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ HDMI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Miscellaneous | |
| Software Included | Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control, GIGABYTE Control Center |
| Width | 9.6 in |
| Depth | 9.6 in |
| Package Details | Box |
| Audio | |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | Water cooling flow rate, temperature detection, fan speed detection, fan fail warning, system voltage, fan control |
| Hardware Features | 12+2+2 Phase Power Design, 2x Copper PCB, 6 Layer PCB, Premium Power Choke, VRM Thermal Armor Advanced, pre-mounted I/O shield, GIGABYTE Smart Fan 6, M.2 Thermal Guard Ext., High-end Audio Capacitors, RGB FUSION, DIY Friendly Design, WIFI EZ-Plug, EZ Debug LED, MultiKey, M.2 EZ Latch plus, M.2 EZ Latch click, PCIe EZ Latch Plus, Ultra Durable |
| LAN | |
| Network Controller | Realtek RTL8852CE |
| Network Interfaces | Bluetooth 5.3, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Supported RAM | |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2900 MHz (O.C.), 2800 MHz (O.C.), 2600 MHz, 2400 MHz, 2200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Intel Extreme Memory Profiles (XMP), dual channel memory architecture, AMD EXPO technology |
