Motherboard - ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen2, USB 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
| Main Specifications | |
|---|---|

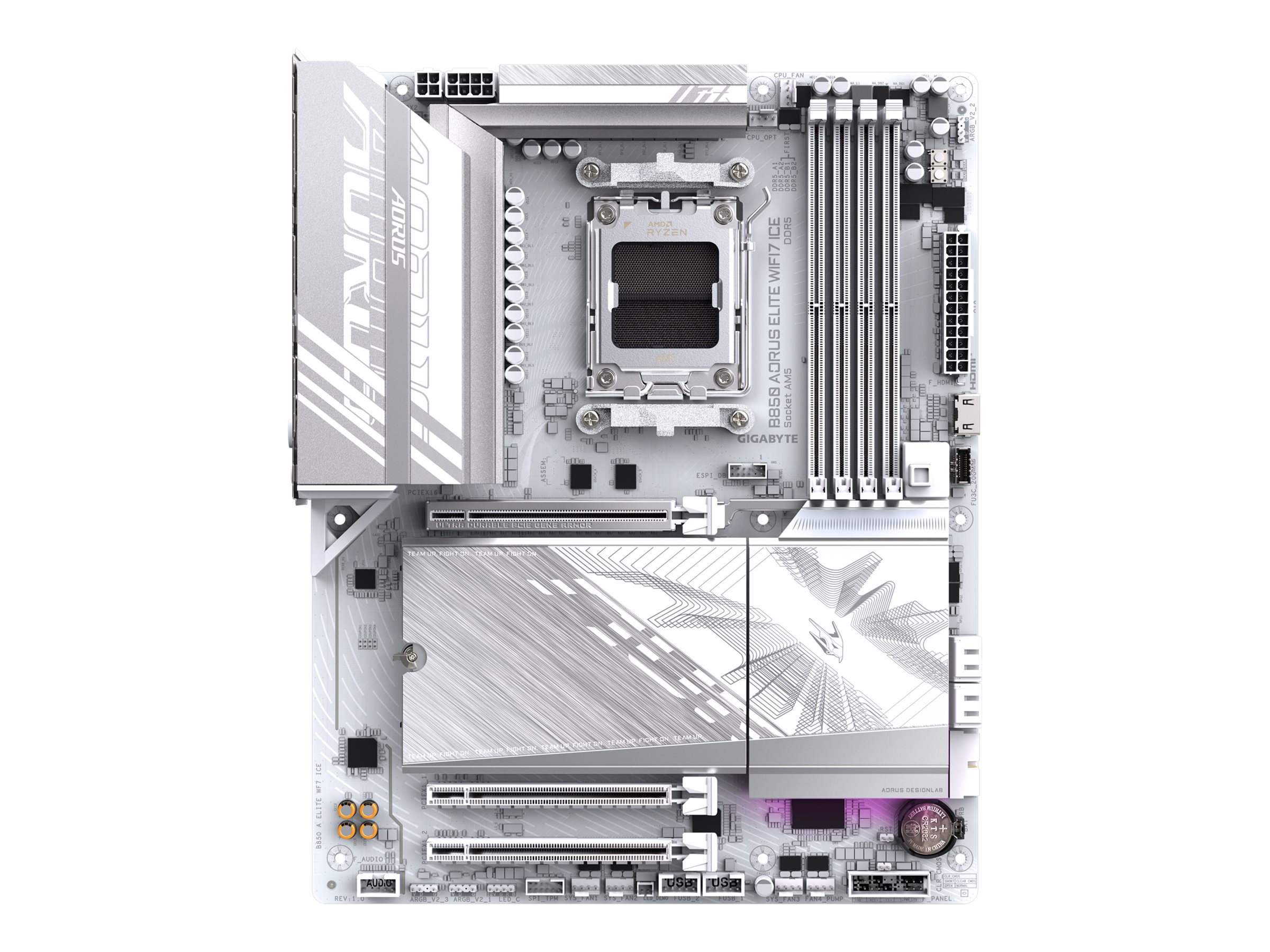

| Product Description | AORUS B850 ELITE WIFI7 ICE - motherboard - ATX - Socket AM5 - AMD B850 |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B850 |
| Processor Socket | 1 x Socket AM5 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Max RAM Size | 256 GB |
| RAM Supported | 4 DIMM slots - DDR5, non-ECC, unbuffered |
| Storage Ports | 4 x SATA-600 (RAID), 3 x M.2 |
| USB / FireWire Ports | 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 5 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4 |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B850 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 3 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 2 x M.2 |
| Interfaces | 1 x SPDIF out ¦ 1 x microphone ¦ 1 x audio line-out ¦ 2 x antenna ¦ 2 x USB 3.2 Gen 2 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 5 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x DisplayPort |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x HDMI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Miscellaneous | |
| Included Accessories | Wi-Fi antenna, G-Connector, thermal pad for M.2 SSD, 2 x M.2 SSD thick/thin rubber pad |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control |
| Width | 12 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning |
| Hardware Features | 14+2+2 Phase Power Design, Server-Grade Mid-Loss PCB, 6 Layer PCB, 2x Copper PCB, Premium Power Choke, DIY Friendly Design, GIGABYTE Smart Fan 6, WIFI EZ-Plug, M.2 EZ Latch, PCIe EZ Latch Plus, Q-Flash, RGB FUSION |
| LAN | |
| Network Controller | Realtek RTL8922AE |
| Network Interfaces | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4 |
| Supported RAM | |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2900 MHz (O.C.), 2800 MHz (O.C.), 2600 MHz, 2400 MHz, 2200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Intel Extreme Memory Profiles (XMP), AMD EXPO technology, dual channel memory architecture |
