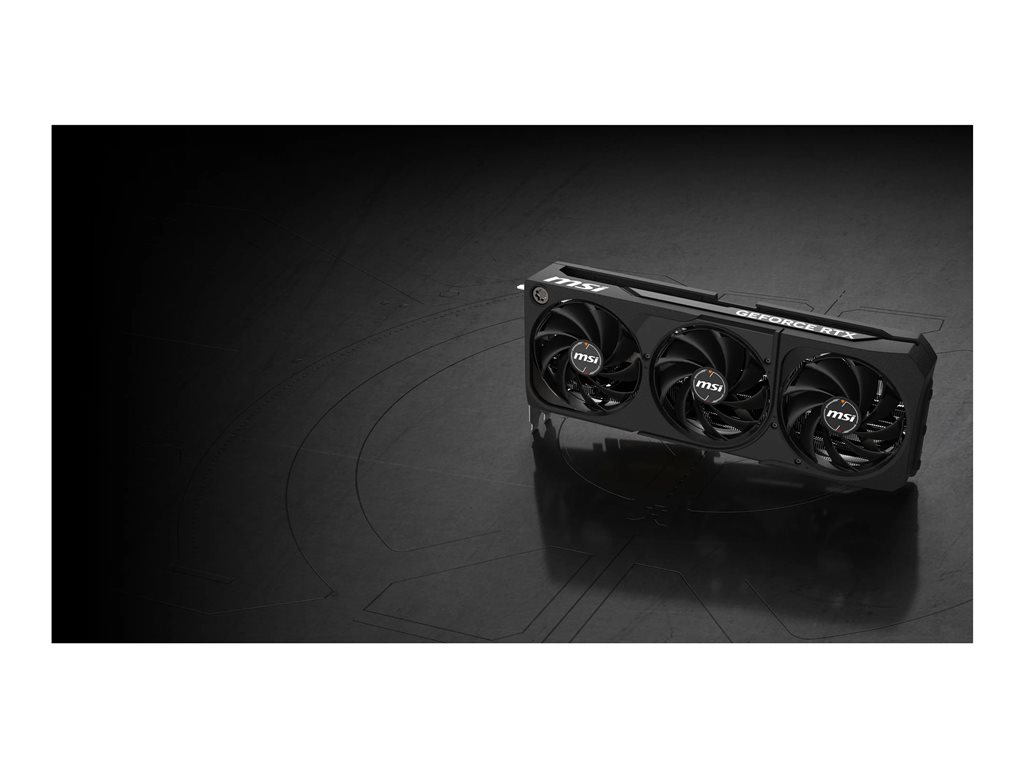

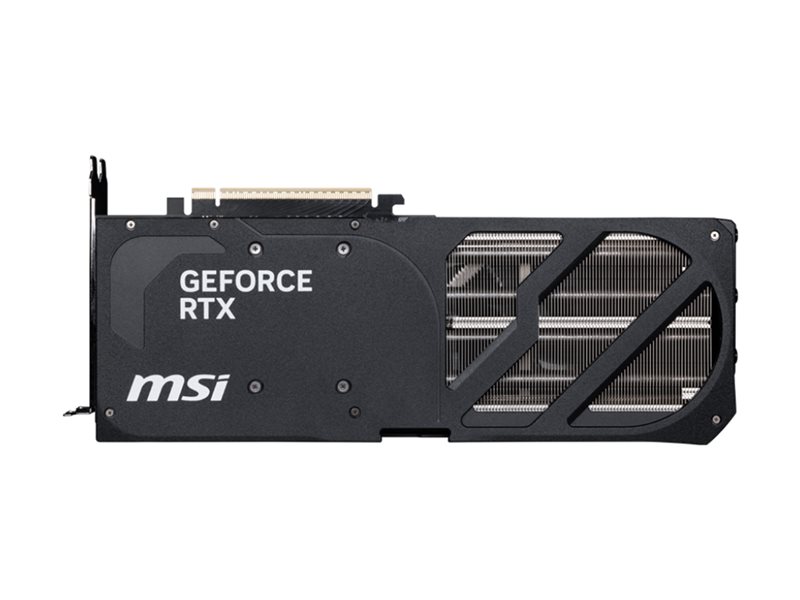

Graphics card - GeForce RTX 5080 - 16 GB GDDR7 - PCIe 5.0 x16 - 3 x DisplayPort, HDMI - box
| Main Specifications | |
|---|---|
| Product Description | MSI GeForce RTX 5080 16G SHADOW 3X OC - graphics card - GeForce RTX 5080 - 16 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 5080 |
| Memory | 16 GB GDDR7 |
| Memory Speed | 30 Gbps |
| Boost Clock | 2640 MHz |
| CUDA Cores | 10752 |
| Memory Interface | 256-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |

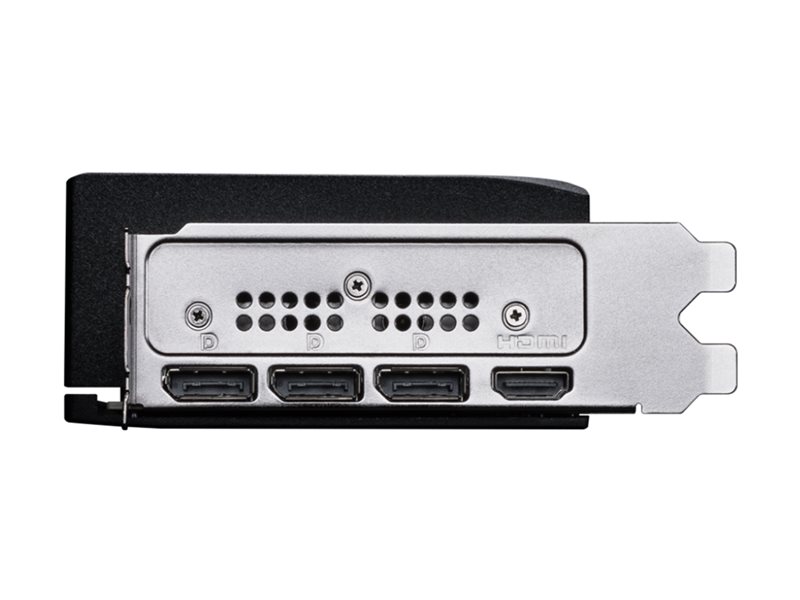

| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Dimensions (WxDxH) | 1.9 in x 11.9 in x 4.8 in |
| Package Type | Box |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 5080 |
| Boost Clock | 2640 MHz |
| CUDA Cores | 10752 |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Features | Triple Fan Design, Torx 5.0 Fans, nickel plated copper base, Core Pipe, vented backplate, MSI Zero Frozr technology, fuse protection, DrMOS, 5th gen Tensor Cores, 4th gen Ray Tracing Cores, NVIDIA Reflex 2, NVIDIA Avatar Cloud Engine (ACE), NVIDIA DLSS 4, NVIDIA Blackwell GPU architecture, Nvidia Broadcast, 9th Gen NVIDIA Encoder, Nvidia Studio, 2oz copper PCB, HDCP |
| Memory | |
| Size | 16 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 30 Gbps |
| Bus Width | 256-bit |
| Miscellaneous | |
| Power Consumption Operational | 360 watt |
| Included Accessories | Stand |
| Software Included | MSI Center, MSI Afterburner, MSI APP Player |
| Compliant Standards | DisplayPort 2.1b |
| Width | 1.9 in |
| Depth | 11.9 in |
| Height | 4.8 in |
| Weight | 2.31 lbs |
| Shipping Weight | 3.41 lbs |
| Package Details | Box |
| System Requirements | |
| Required Power Supply | 850 W |
| Additional Requirements | 16 pin PCI Express power connector |
