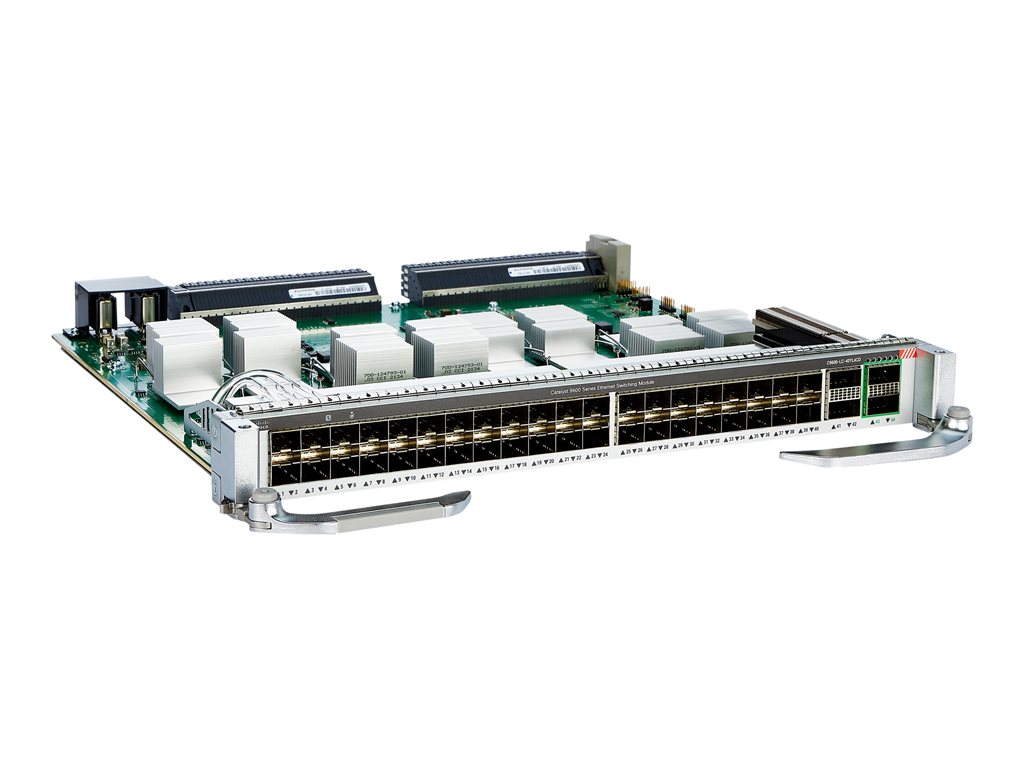

Switch - 40 x 50 Gigabit SFP56 + 2 x 200 Gigabit QSFP56 + 2 x 400 Gigabit QSFP-DD - plug-in module
| Main Specifications | |
|---|---|
| Product Description | Cisco Catalyst 9600 Series Line Card - switch - 40 ports - plug-in module |
| Device Type | Switch - 40 ports |
| Enclosure Type | Plug-in module |
| Subtype | 50 Gigabit Ethernet |
| Ports | 40 x 50 Gigabit SFP56 + 2 x 200 Gigabit QSFP56 + 2 x 400 Gigabit QSFP-DD |
| Features | IPv6 support, MACsec support, ACL support, QoS |
| Compliant Standards | IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3 |
| Dimensions (WxDxH) | 15 in x 15.7 in x 1.7 in |
| Weight | 8.88 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 40 ports |
| Enclosure Type | Plug-in module |
| Subtype | 50 Gigabit Ethernet |
| Ports | 40 x 50 Gigabit SFP56 + 2 x 200 Gigabit QSFP56 + 2 x 400 Gigabit QSFP-DD |
| Encryption Algorithm | 256-bit AES |
| Features | IPv6 support, MACsec support, ACL support, QoS |
| Compliant Standards | IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3 |
| Expansion / Connectivity | |
| Interfaces | 40 x 50Gbit LAN SFP56 ¦ 2 x 200Gbit LAN QSFP56 ¦ 2 x 400Gbit LAN QSFP-DD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day |
| Miscellaneous | |
| MTBF | 580,420 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, Laser Class 1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AES-256, EN 300 386 V1.6.1, EN 55022 Class A, EN 300 386, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317 |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 15 in |
| Depth | 15.7 in |
| Height | 1.7 in |
| Weight | 8.88 lbs |
