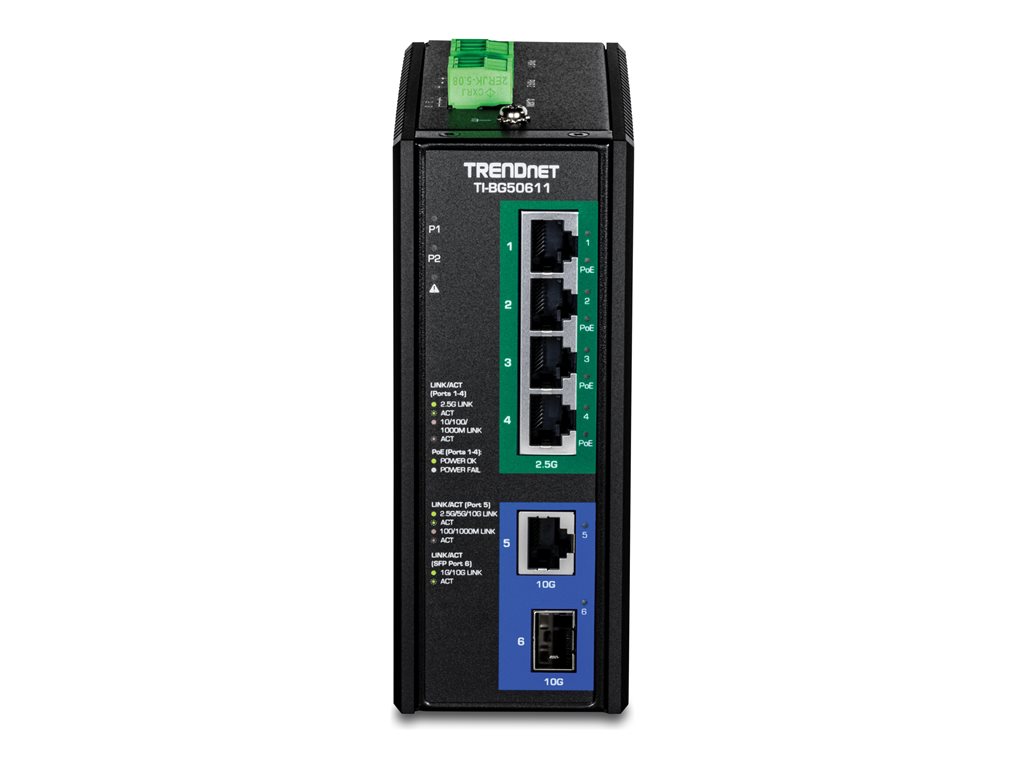

Version v1.0R - switch - industrial - 4 x 10/100/1000/2.5G (PoE++) + 1 x 1 Gigabit / 10 Gigabit SFP+ + 1 x 10/100/1000/2.5/10G - DIN rail mountable, wall-mountable - PoE++ (240 W)
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TI-BG50611 - Version v1.0R - switch - industrial - 6 ports |
| Device Type | Switch - 6 ports |
| Subtype | 10 Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Ports | 4 x 10/100/1000/2.5G (PoE++) + 1 x 1 Gigabit / 10 Gigabit SFP+ + 1 x 10/100/1000/2.5/10G |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 60 Gbps ¦ Forwarding performance (64-byte packet size): 44.64 Mpps |
| Capacity | RAM buffer: 1 MB |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 12KB |
| Features | Metal housing, LED status indicators, ground points, half duplex mode, full duplex mode, hardened, auto-negotiation, store and forward, 6KV ESD Protector, rugged, vibration-resistant, shock-resistant |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz |
| Power | AC 100-240/ DC 48-57 V (50/60 Hz) 2 A |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 1.9 in x 4.8 in x 6.1 in |
| Weight | 22.22 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 6 ports |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | 10 Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Ports | 4 x 10/100/1000/2.5G (PoE++) + 1 x 1 Gigabit / 10 Gigabit SFP+ + 1 x 10/100/1000/2.5/10G |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 60 Gbps ¦ Forwarding performance (64-byte packet size): 44.64 Mpps |
| Capacity | RAM buffer: 1 MB |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 12KB |
| Features | Metal housing, LED status indicators, ground points, half duplex mode, full duplex mode, hardened, auto-negotiation, store and forward, 6KV ESD Protector, rugged, vibration-resistant, shock-resistant |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz |
| Expansion / Connectivity | |
| Interfaces | 4 x 10/100/1000/2.5G (PoE++) RJ-45 95 W ¦ 1 x 10Gbit LAN SFP+ ¦ 1 x 10/100/1000/2.5/10G RJ-45 ¦ 1 x power input 3 pin terminal block ¦ 1 x alarm 3 pin terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| MTBF | 83,000 hours |
| Compliant Standards | IP50, FCC, IEC 60068-2-27, EN 60068-2-31, EN 60068-2-6, IEC 61000-6-2, IEC 61000-6-4, IEC 61000-4-5, EMI, ESD |
| Power | |
| Power Device | External power adapter (not included) |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Provided | 160 Watt 3.34 A |
| Voltage Required | AC 100-240/ DC 48-57 V (50/60 Hz) |
| Electric Current Required | 2 A |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 1.9 in |
| Depth | 4.8 in |
| Height | 6.1 in |
| Weight | 22.22 oz |
