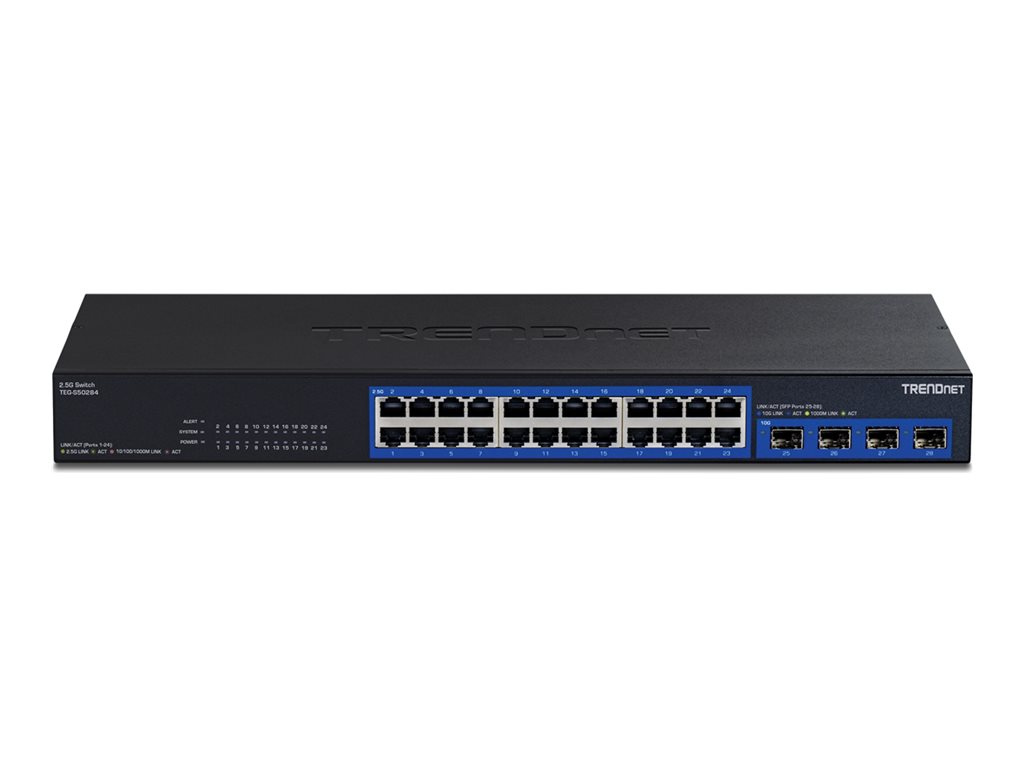

Version v1.0R - switch - smart - 24 x 10/100/1000/2.5G + 4 x 10 Gigabit SFP+ - rack-mountable - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TEG-S50284 - Version v1.0R - switch - 28 ports - smart - rack-mountable - TAA Compliant |
| Device Type | Switch - 28 ports - smart |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Ports | 24 x 10/100/1000/2.5G + 4 x 10 Gigabit SFP+ |
| Performance | Switching capacity: 200 Gbps ¦ Forwarding rate (64?byte packets): 59.52 Mpps |
| Capacity | RAM buffer: 2 MB |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 12KB |
| Features | Cat 5e, LED status indicators, full duplex mode, half duplex mode, VLAN passthrough, 6KV ESD Protector, Smart Fans, metal housing, wall mountable |
| Compliant Standards | IEEE 802.3bz, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az |
| Power | AC 90-264 V (47/63 Hz) |
| Dimensions (WxDxH) | 17.3 in x 7.7 in x 1.7 in |
| Weight | 6.37 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 28 ports - smart |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Ports | 24 x 10/100/1000/2.5G + 4 x 10 Gigabit SFP+ |
| Performance | Switching capacity: 200 Gbps ¦ Forwarding rate (64?byte packets): 59.52 Mpps |
| Capacity | RAM buffer: 2 MB |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 12KB |
| Features | Cat 5e, LED status indicators, full duplex mode, half duplex mode, VLAN passthrough, 6KV ESD Protector, Smart Fans, metal housing, wall mountable |
| Compliant Standards | IEEE 802.3bz, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az |
| Built-in Devices | 2 x fans |
| Status Indicators | Link/activity, alert, system, power |
| Expansion / Connectivity | |
| Interfaces | 24 x 10/100/1000/2.5G RJ-45 ¦ 4 x 1/10Gbit LAN SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | Power cable (1.5 m) |
| Rack Mounting Kit | Included |
| MTBF | 426,000 hours |
| Compliant Standards | NDAA, FCC, LVD |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply |
| Power Provided | DC 12 V - 5 A |
| Voltage Required | AC 90-264 V (47/63 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 7.7 in |
| Height | 1.7 in |
| Weight | 6.37 lbs |
