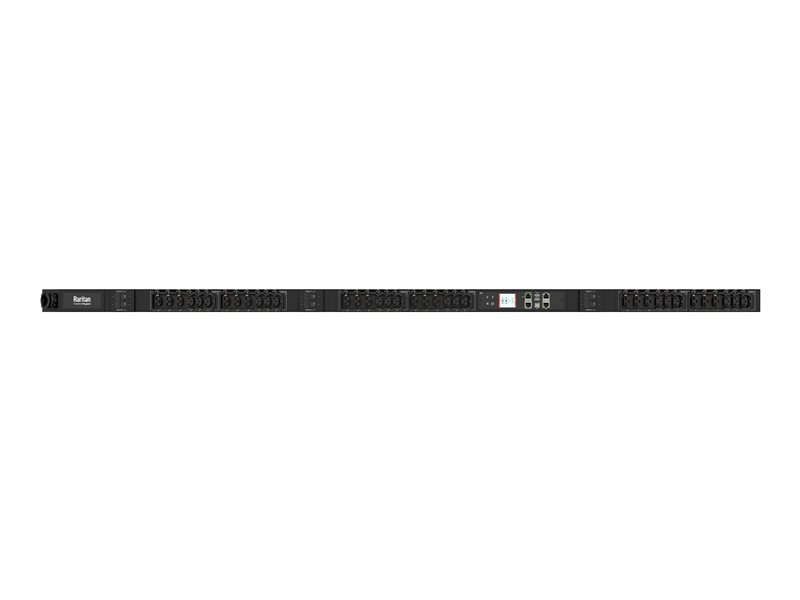

Power distribution unit (rack-mountable) - 415 V - 17300 VA - 1-phase - Ethernet 10/100/1000, RS-232, USB - input: NEMA L22-30P - output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx) - 0U - 10 ft cord - black
| Main Specifications | |
|---|---|
| Product Description | Raritan PX4-4851-E7V2 - power distribution unit - 17300 VA |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 0U |
| Weight | 16.27 lbs |
| Input Wiring | 1-phase |
| Input Voltage | 415 V |
| Output Voltage | AC 208 - 240 V |
| Power Capacity | 17300 VA |
| Power Capacity Details | 15 kVA at 360 V, 17.3 kVA at 415 V |
| Input Connectors | 1 x power NEMA L22-30P |
| Output connectors | 18 x power IEC 60320 C13 16 A ¦ 18 x power IEC 60320 Cx 16 A |
| Networking | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus TCP |
| Color | Black |
| Dimensions (WxDxH) | 2.2 in x 2.6 in x 70.1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x PDU link - RJ-45 ¦ 1 x sensor - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Features | Extruded aluminum housing, tool-less button mount, powder-coated, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, environmental sensor ready, cascadable, LCD display, 6 x J61-X0 overload protection, LED indicators, Raritan SecureLock Ready, bottom-front feed cord entry |
| Compliant Standards | UL, ICES-003, FCC Part 15 A, RoHS |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus TCP |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Power Device | |
| Input Voltage | 415 V |
| Input Voltage Range | AC 360 - 415 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L22-30P |
| Power Output Connectors Details | 18 x power IEC 60320 C13 16 A ¦ 18 x power IEC 60320 Cx 16 A |
| Output Voltage | AC 208 - 240 V |
| Max Electric Current | 24 A |
| Power Capacity | 17300 VA |
| Power Capacity Details | 15 kVA at 360 V, 17.3 kVA at 415 V |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 2.6 in |
| Height | 70.1 in |
| Weight | 16.27 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 10 in |
| Shipping Depth | 4.9 in |
| Shipping Height | 76.4 in |
| Shipping Weight | 21.72 lbs |
