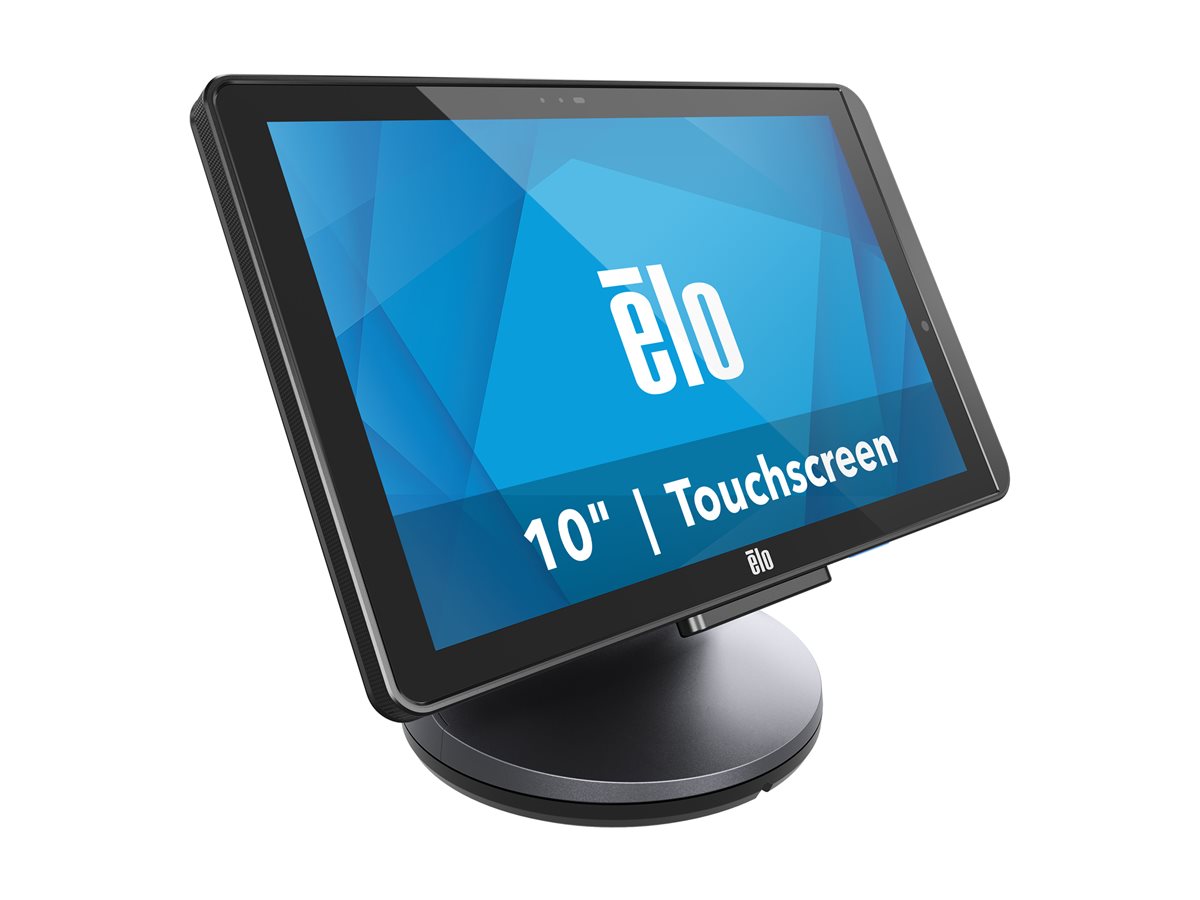

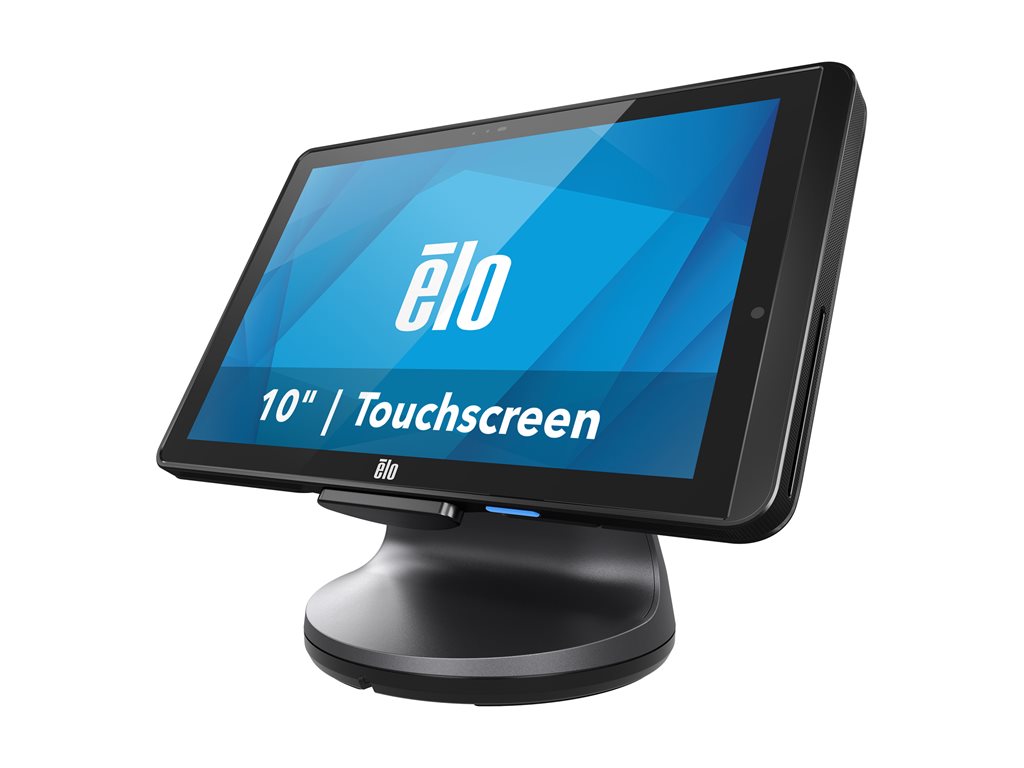

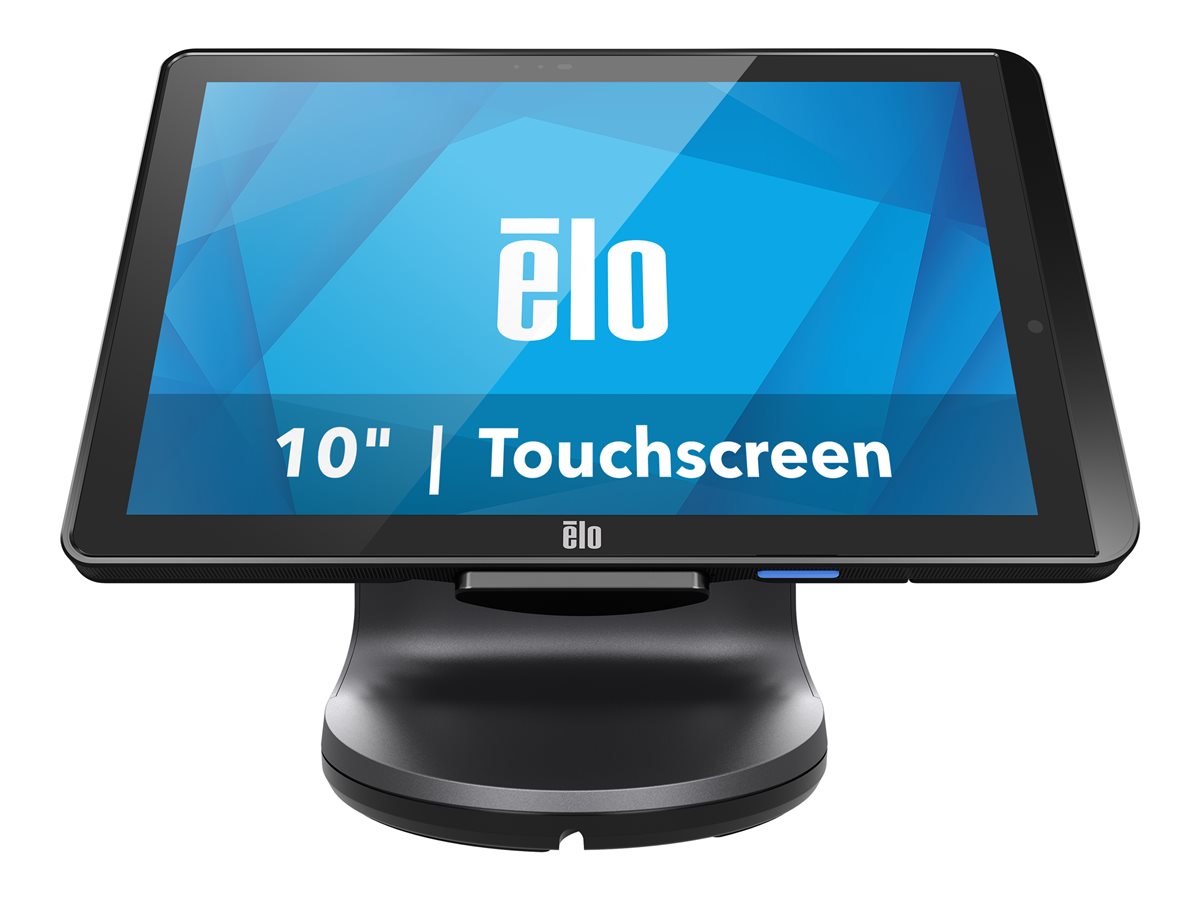

With Stand - all-in-one 1 x Snapdragon 660 - RAM 4 GB - flash 64 GB - NFC - Android 12 GMS - monitor: LCD 10.1" 1920 x 1200 (WUXGA) touchscreen - black
| Main Specifications | |
|---|---|
| Product Description | Elo Pay 10" - with Stand - all-in-one Snapdragon 660 2.2 GHz - 4 GB - flash 64 GB - LCD 10.1" |
| Type | Point of sale terminal - all-in-one |
| Processor | 1 x Qualcomm Snapdragon 660 2.2 GHz (8-core) |
| RAM | 4 GB |
| Hard Drive | Flash 64 GB |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Monitor | 10.1" - LCD - 1920 x 1200 (WUXGA) - touchscreen |
| Camera | Yes |
| Networking | 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 5.0, NFC |
| OS Provided | Android 12 GMS |
| Color | Black |
| Dimensions (WxDxH) | 10.1 in x 7.9 in x 8.5 in |
| Weight | 5.19 lbs |
| Manufacturer Warranty | Limited warranty - 1 year |
| General | |
| Type | Point of sale terminal |
| Product Form Factor | All-in-one |
| Built-in Devices | Dual speakers, EMV Chip Card Reader |
| Sensors | Accelerometer, light sensor |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | USB-C cable |
| Compliant Standards | PCI-PTS 6.2 Certified, EMV Level-1, EMV Level 2, Visa payWave, MasterCard payPass, Amex ExpressPay, Discover D-PAS, EFTPOS, JCB, Unionpay Quickpass, Interac, Mastercard TQM, Apple Pay, Google Pay, Samsung Pay, ISO 18092, MIFARE, ISO 14443 type A, ISO 14443 type B, UL, FCC Class B certified, cUL, IC, CB, Class B, IP54, PCI PTS 6.2 |
| RAM | |
| Installed Size | 4 GB |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, NFC |
| Features | Dual stream (2x2), MU-MIMO Support |
| Power | |
| Device Type | Power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LCD |
| Touchscreen | Yes |
| Diagonal Size | 10.1" |
| Native Resolution | 1920 x 1200 (WUXGA) |
| Widescreen Display | Yes |
| Image Brightness | 500 cd/m² |
| Image Contrast Ratio | 900:1 |
| Monitor Features | Optically Bonded, Projected Capacitive Touch (P-CAP) technology, Corning Gorilla glass, anti-fingerprint (AF) coating, water rejection, scratch-resistant |
| Operating System / Software | |
| OS Provided | Android 12 GMS |
| Hard Drive | |
| Type | Flash |
| Capacity | 1 x 64 GB |
| Camera | |
| Camera | Yes |
| Resolution (MP) | 8 Megapixel (rear), 5 Megapixel (front) |
| Features | Autofocus, LED flash, flashlight (torch), fixed focus, Face Authentication |
| Audio Input | |
| Type | Two microphones |
| Dimensions & Weight | |
| Width | 10.1 in |
| Depth | 7.9 in |
| Height | 8.5 in |
| Weight | 5.19 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 14.1 in |
| Shipping Depth | 11.3 in |
| Shipping Height | 10.8 in |
| Shipping Weight | 12.24 lbs |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | microSD, SDXC Memory Card |
| Processor / Chipset | |
| CPU | Qualcomm Snapdragon 660 |
| Clock Speed | 2.2 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
