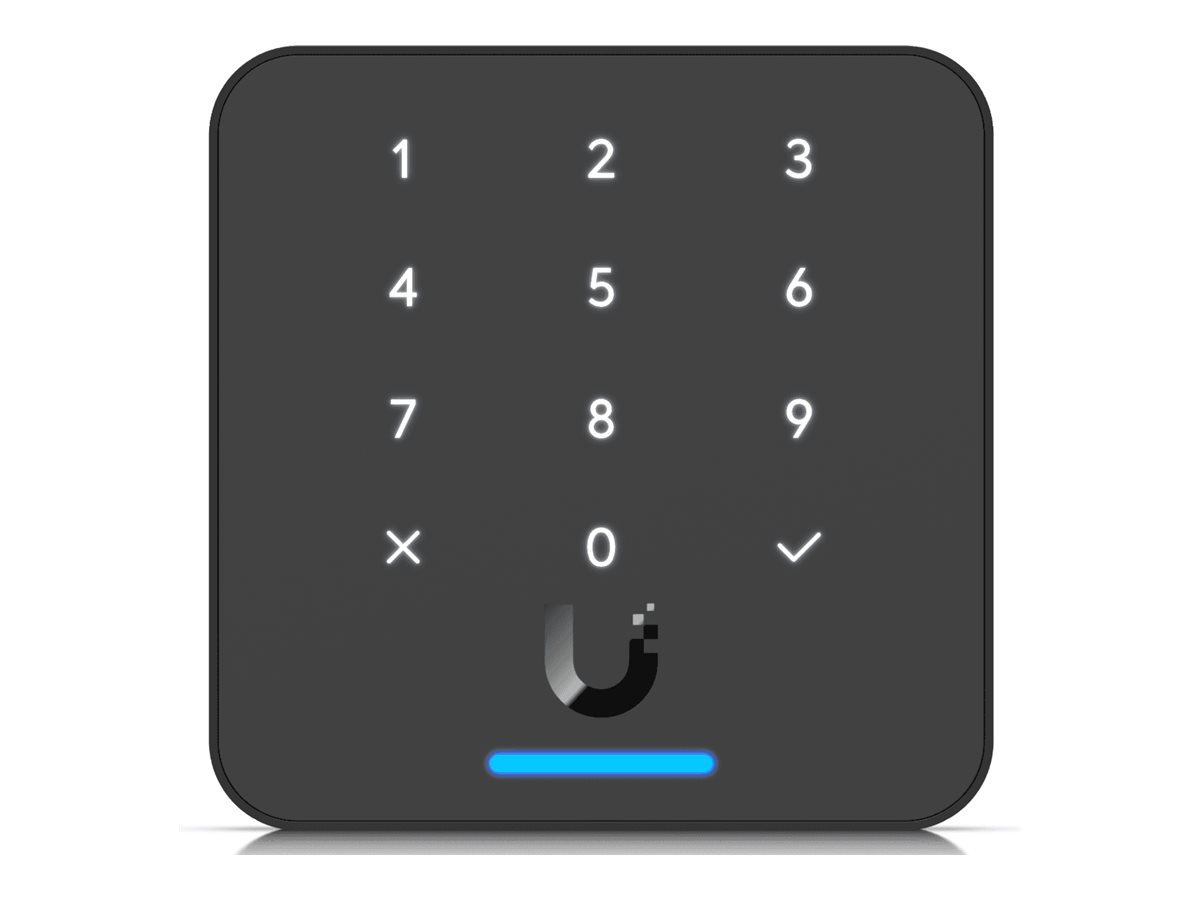

Bluetooth/NFC proximity reader - wired - NFC, Bluetooth 4.1, Mifare - 13.56 MHz - 10/100 Ethernet - black
| Main Specifications | |
|---|---|
| Product Description | Ubiquiti UniFi Reader Flex - Bluetooth/NFC proximity reader - NFC, Bluetooth 4.1, Mifare - black |
| Product Type | Bluetooth/NFC proximity reader |
| Environment | Indoor, outdoor |
| Intended For | Door access controller |
| Placing / Mounting | Wall-mounting |
| Integrated Sensors | Proximity sensor |
| Integrated Components | Speaker, touch screen keypad |
| Power Source | PoE |
| Card Technology | HID MIFARE Classic, HID MIFARE DESFire, Sony FeliCa |
| Connectivity | Wired - NFC, Bluetooth 4.1, Mifare - 10/100 Ethernet |
| Frequency Band | 13.56 MHz |
| Color | Black |
| Dimensions (WxDxH) | 3.3 in x 1.6 in x 3.3 in |
| General | |
| Product Type | Bluetooth/NFC proximity reader |
| Intended For | Door access controller |
| Environment | Indoor, outdoor |
| Integrated Components | Speaker, touch screen keypad |
| Integrated Sensors | Proximity sensor |
| Power Source | PoE |
| Placing / Mounting | Wall-mounting |
| Connectivity Technology | Wired |
| Card Technology | HID MIFARE Classic, HID MIFARE DESFire, Sony FeliCa |
| Frequency Band | 13.56 MHz |
| Features | 12 touch buttons, mobile unlock, weatherproof, RGB LED indicator, reset button, keyfob lock/unlock function, PIN code authorization 8KV ESD Protector (contact discharge), 15KV ESD Protector (air-gap discharge) |
| Miscellaneous | |
| Included Accessories | Mounting kit |
| Product Material | Polycarbonate, glass, aluminum alloy |
| Color | Black |
| Voltage Required | DC 44 - 57 V |
| Power Consumption Operational | 5 Watt |
| Compliant Standards | ISO/IEC 14443A/B, ISO/IEC 15693, ISO/IEC 18092, ECMA-340, IP55, UL 294, CAN/ULC 60839-11-1, FCC, IC |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.3 in |
| Depth | 1.6 in |
| Height | 3.3 in |
| Weight | 5.82 oz |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Compatible Application | UniFi Identity |
