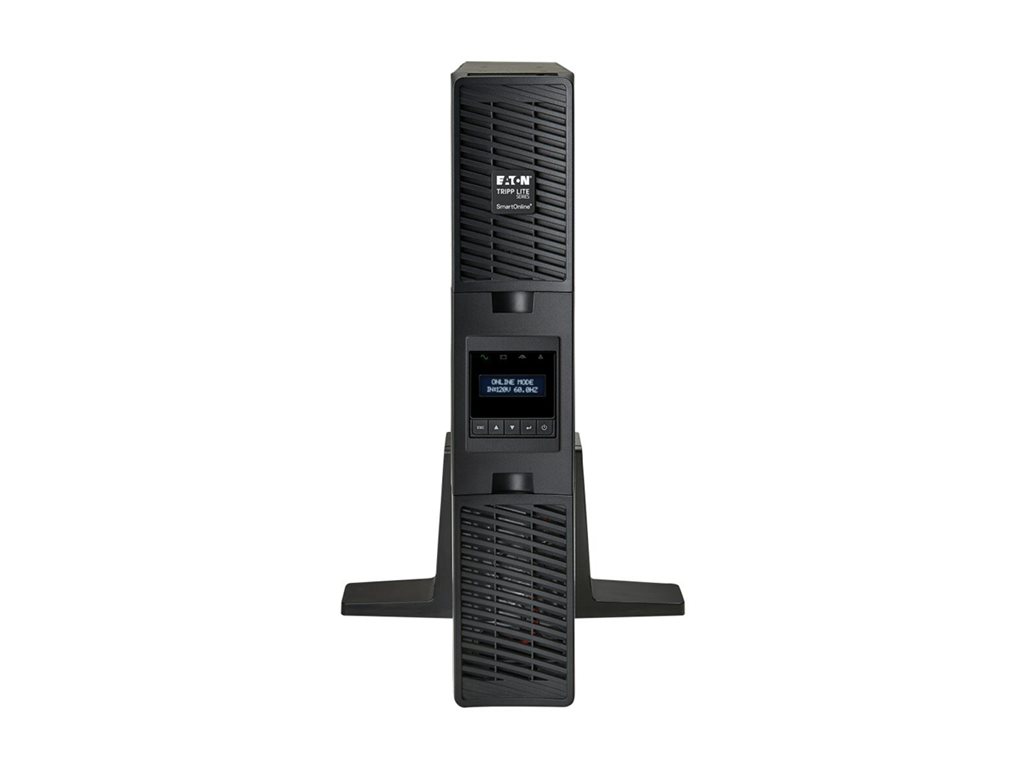

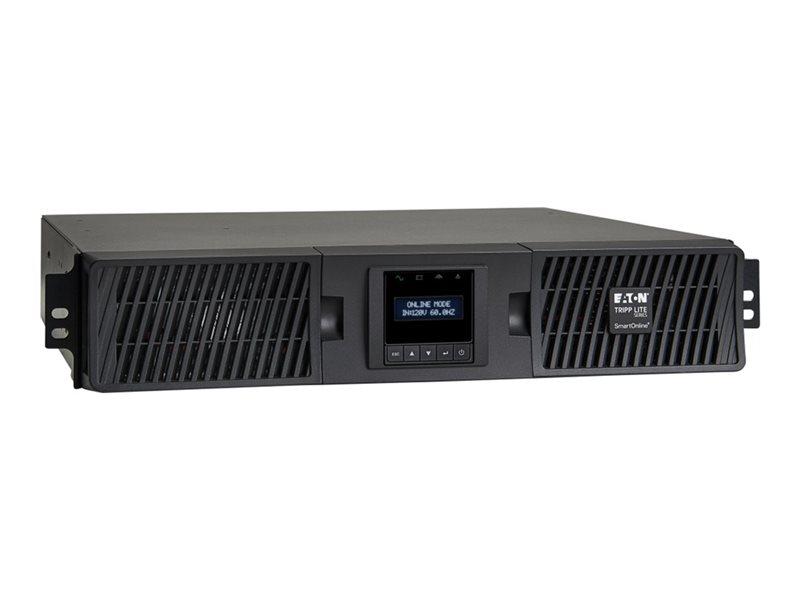

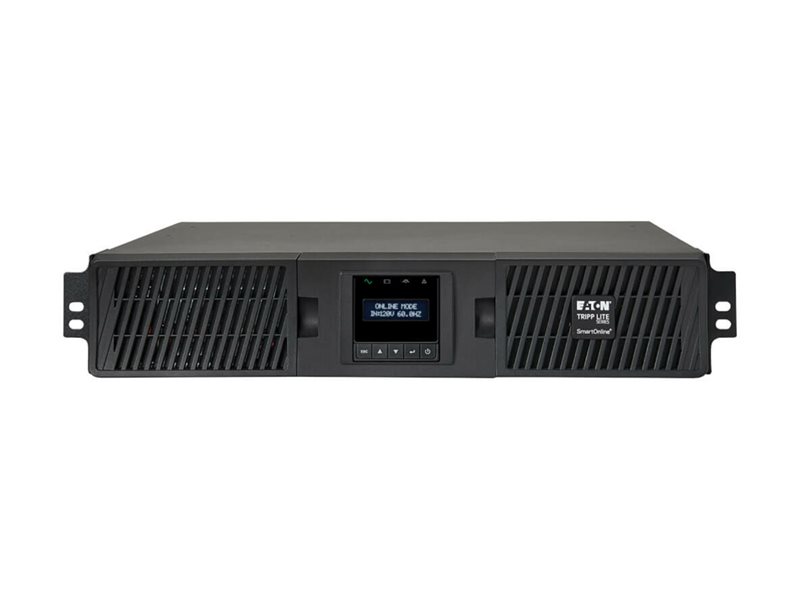

UPS (rack-mountable / external) - AC 100/110/120 V - 1800 Watt - 2000 VA - 1-phase - RS-232, USB - output connectors: 7 - 2U - 19" - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series SmartOnline UPS Smart Online 2000VA 1800W 120V Sine Wave 7 Outlets Ext Run LCD USB DB9 2U TAA - UPS - 1800 Watt - 2000 VA - TAA Compliant |
| Device Type | UPS - rack-mountable / external |
| Rack Size | 19" - 2U |
| Weight | 61.51 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 100/110/120 V |
| Output Voltage | AC 100/110/115/120/127 V ± 1% |
| Power Capacity | 1800 Watt / 2000 VA |
| Input Connectors | 1 x power NEMA 5-20P |
| Output connectors | 6 x power NEMA 5-20R (UPS and surge) ¦ 1 x power NEMA L5-20R (UPS and surge) |
| Battery | Lead acid expandable |
| Run Time (Up To) | 7.7 min at full load |
| Networking | RS-232, USB |
| Included Accessories | Tower support stands |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 23.6 in x 17.3 in x 3.4 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Expansion / Connectivity | |
| Interfaces | 1 x battery detection ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x relay output ¦ 1 x RPO/ROO ¦ 1 x USB - 4 pin USB Type B |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Tower support stands |
| Cables Included | Power cable - external - 8 ft ¦ Serial cable - external ¦ USB cable - external |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 250000 US Dollars |
| Features | EMI filtering, RFI filtering, rear access door, metal housing, double conversion, extended runtime, LCD display, Auto Probe, pure sinewave output, controllable load banks, cooling fan, LED indicators, internal bypass, audible alarm, auto power restore, remote reboot, emergency power off, cold-start function |
| Compliant Standards | GSA, UL 1778, cTUVus, FCC, REACH, RoHS |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 96% RH (non-condensing) |
| Sound Emission | 47 dB |
| Battery | |
| Type | Expandable |
| Technology | Lead acid |
| Voltage Provided | DC 72 V |
| Run Time (Up To) | 7.7 min at full load ¦ 20.2 min at half load |
| Recharge Time | 3 hours |
| Transfer Time | 0 ms |
| Features | Hot-swappable, valve-regulated |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 100/110/120 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Input Connectors | 1 x power NEMA 5-20P |
| Power Output Connectors Details | 6 x power NEMA 5-20R (UPS and surge) ¦ 1 x power NEMA L5-20R (UPS and surge) |
| Output Voltage | AC 100/110/115/120/127 V ± 1% - 50/60 Hz |
| Power Capacity | 1800 Watt / 2000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Response Time | 0 ns |
| Surge Energy Rating | 190 Joules |
| Efficiency | 91.4% at 100% Load, 96.8% at 100% Load (Eco Mode) |
| Power Factor (PF) | 0.9 |
| Dimensions & Weight | |
| Width | 23.6 in |
| Depth | 17.3 in |
| Height | 3.4 in |
| Weight | 61.51 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 30.7 in |
| Shipping Depth | 22.8 in |
| Shipping Height | 9.4 in |
| Shipping Weight | 76.28 lbs |
