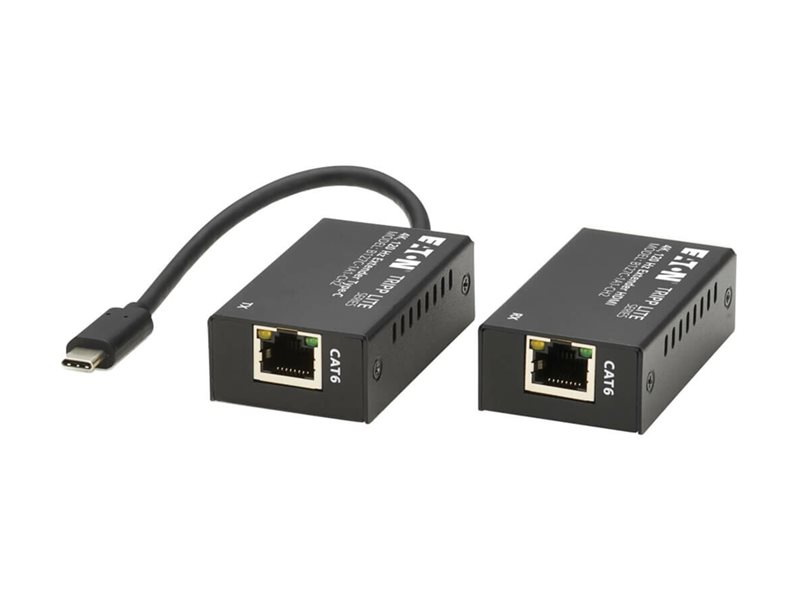

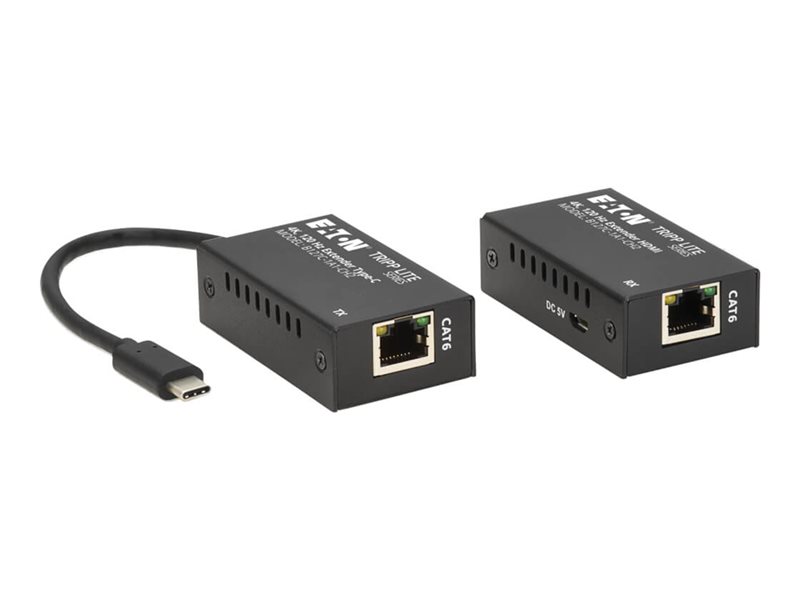

Extender Kit - video/audio extender - over CAT 6 - up to 197 ft
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series - Extender Kit - video/audio extender |
| Device Type | Video/audio extender |
| Form Factor | External |
| Transmission Medium | CAT 6 |
| Max Transfer Distance | 197 ft |
| System Requirements | Windows, Apple MacOS |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio extender |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (receiver) - Type A female ¦ 1 x USB (transmitter) - Type C male ¦ 1 x network (transmitter) - RJ-45 female ¦ 1 x network (receiver) - RJ-45 female ¦ 1 x micro-USB (power) - Type B female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | Micro-USB cable |
| Compliant Standards | Plug and Play, EDID compatible, IEC 61000-4-2, IEC 61000, FCC, REACH, RoHS, UKCA, WEEE |
| Networking | |
| Connectivity Technology | Wired |
| Max Resolution | 3840 x 2160 @ 120 Hz |
| Max Transfer Distance | 197 ft |
| Status Indicators | Activity |
| Features | HDR10 support, HDR support, zero latency, 30-bit Deep Color support, 4:4:4 chroma subsampling support, uni-directional, Pulse-Code Modulation (PCM) support, DTS support, Dolby support, ABS housing, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), multi resolution support |
| Compliant Standards | HDCP 2.2, HDCP 1.4 |
| Software / System Requirements | |
| OS Required | Windows, Apple MacOS |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 0 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 1 in x 2.8 in x 0.6 in ¦ Receiver: 1 in x 2.8 in x 0.6 in |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 4.6 in |
| Shipping Depth | 5.9 in |
| Shipping Height | 3 in |
| Shipping Weight | 10.93 oz |
