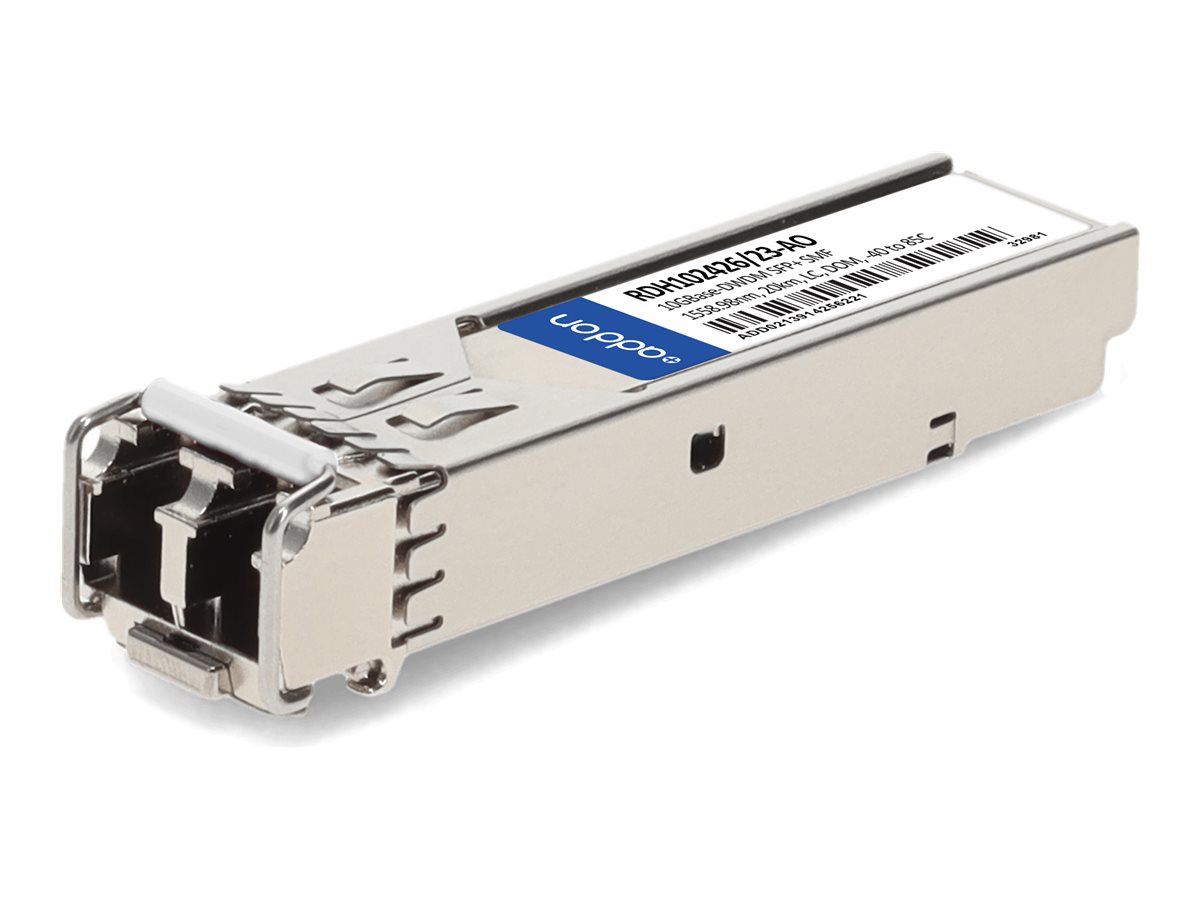

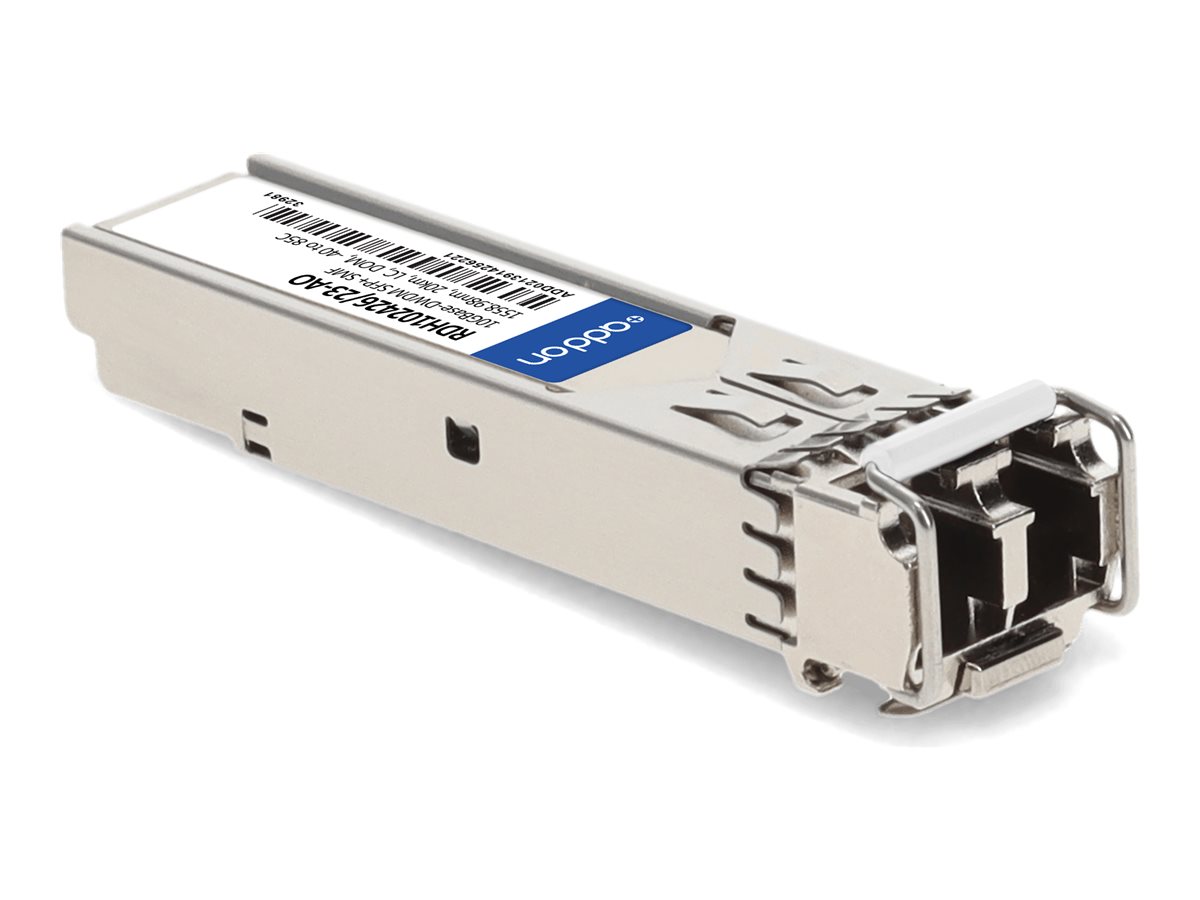

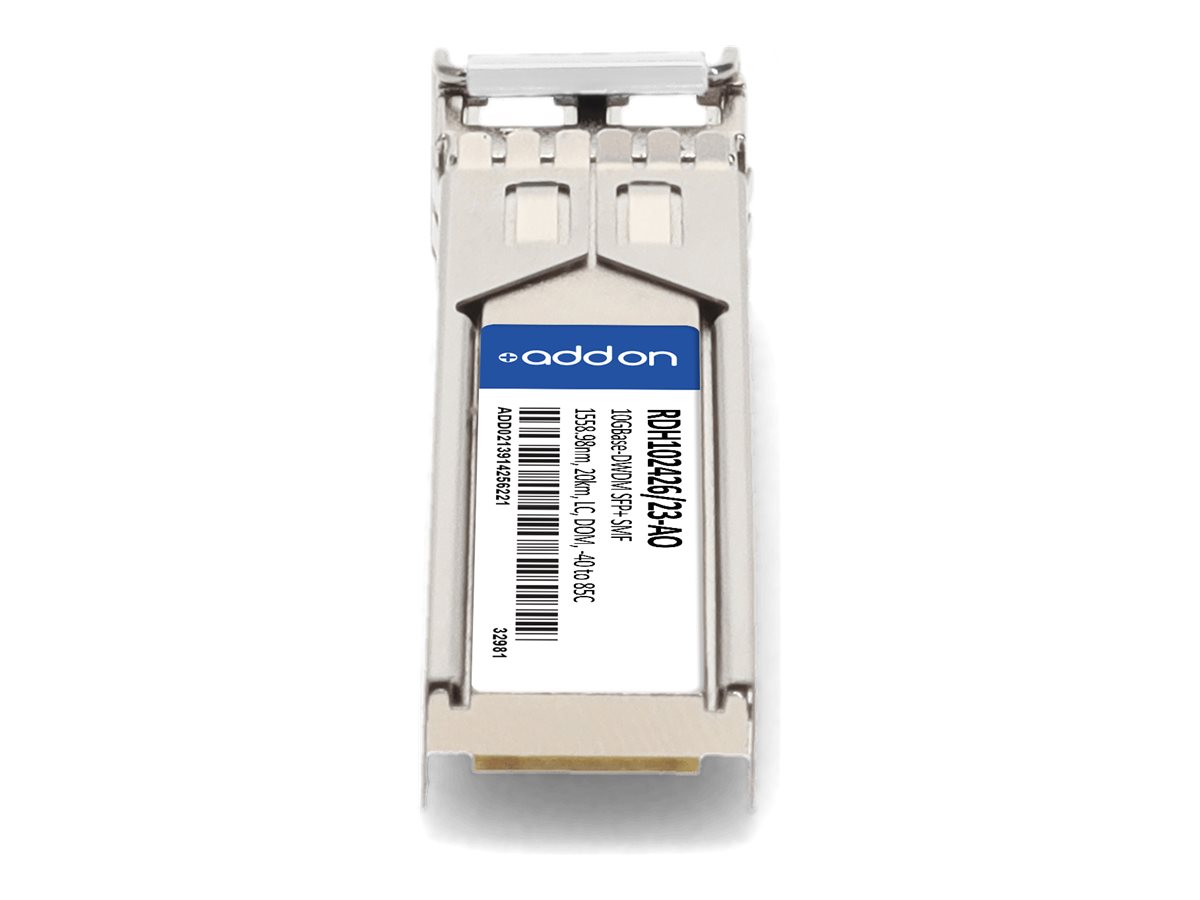

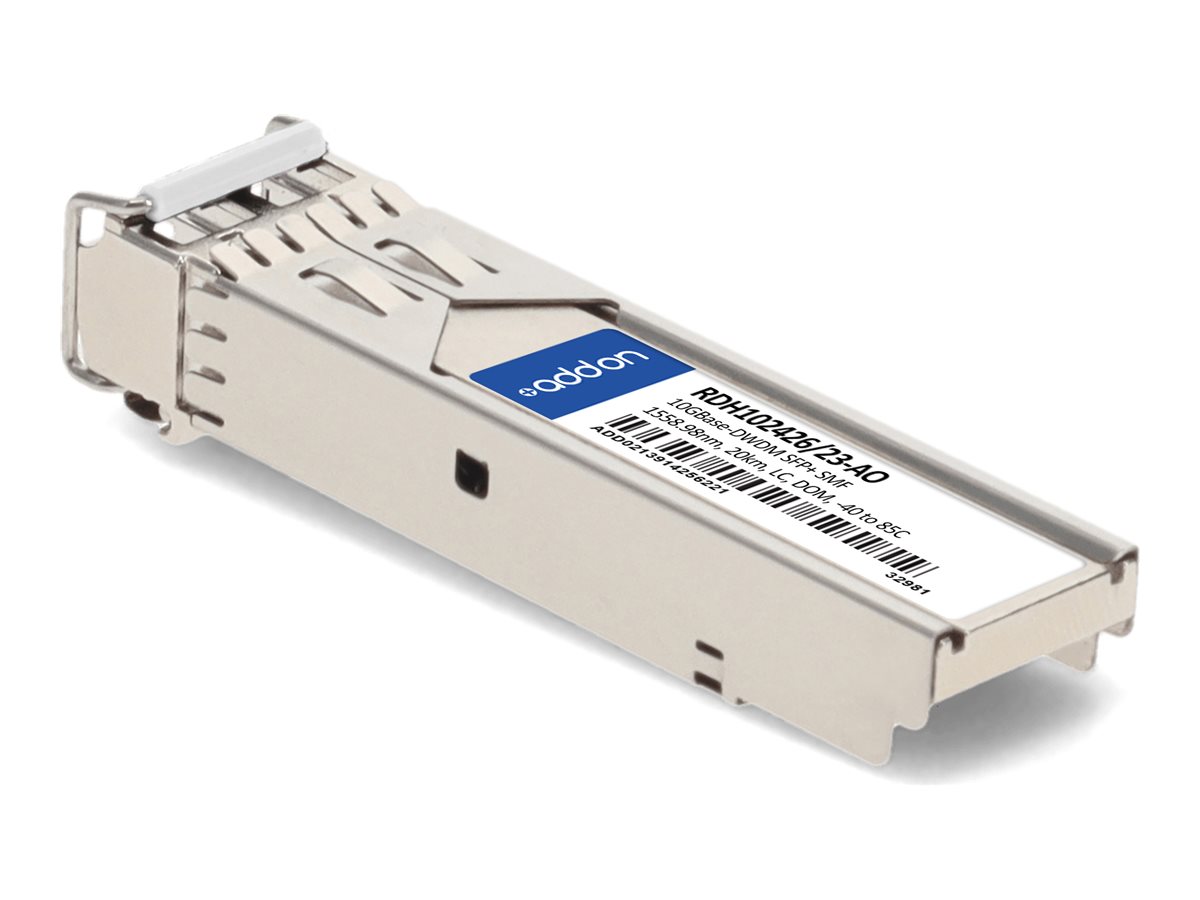

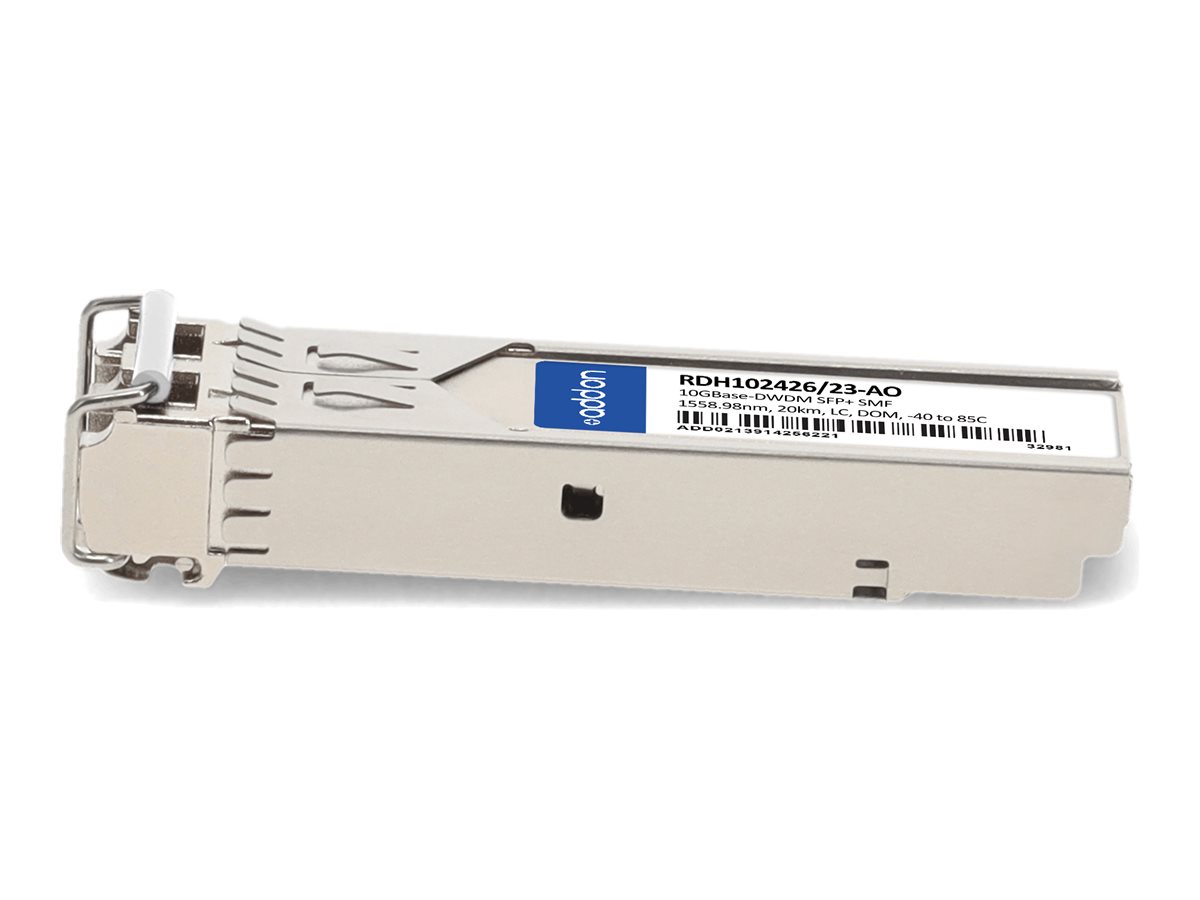

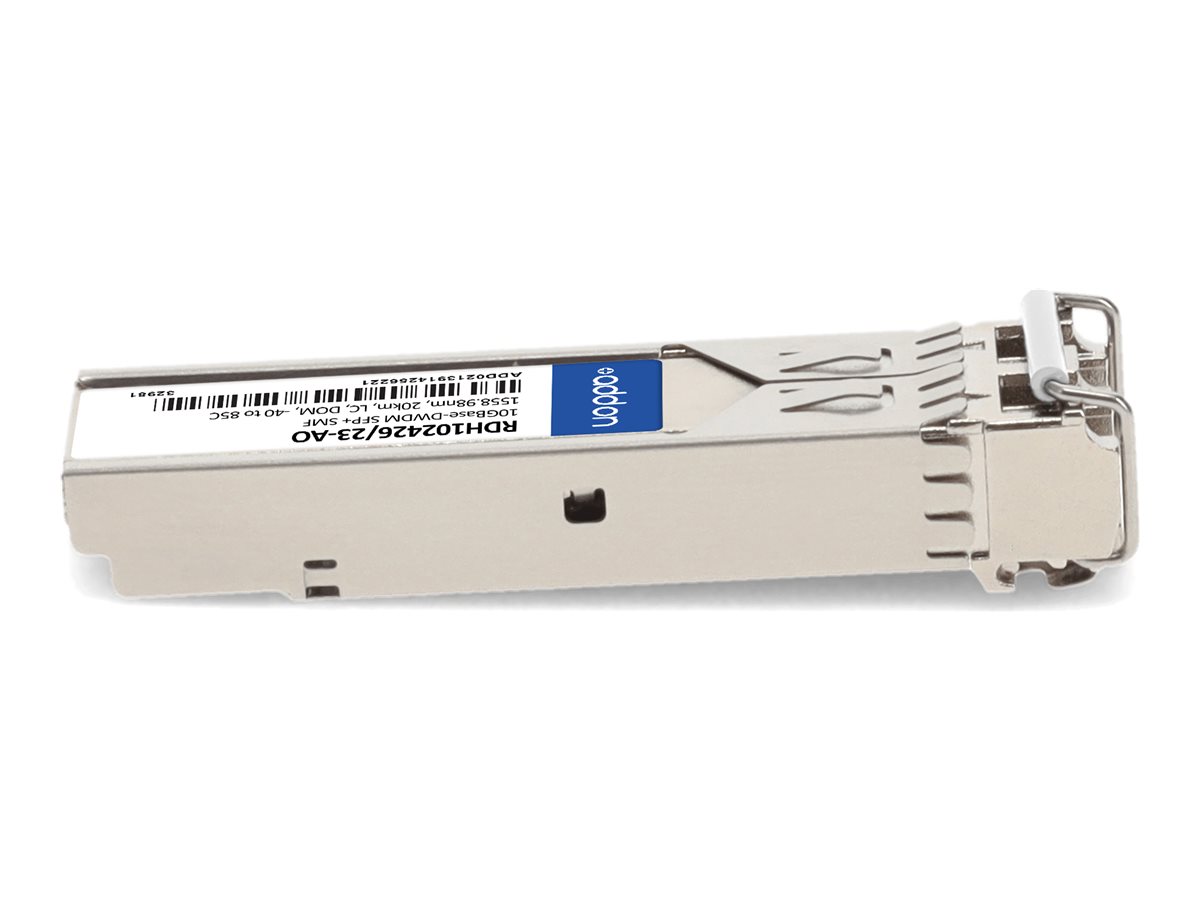

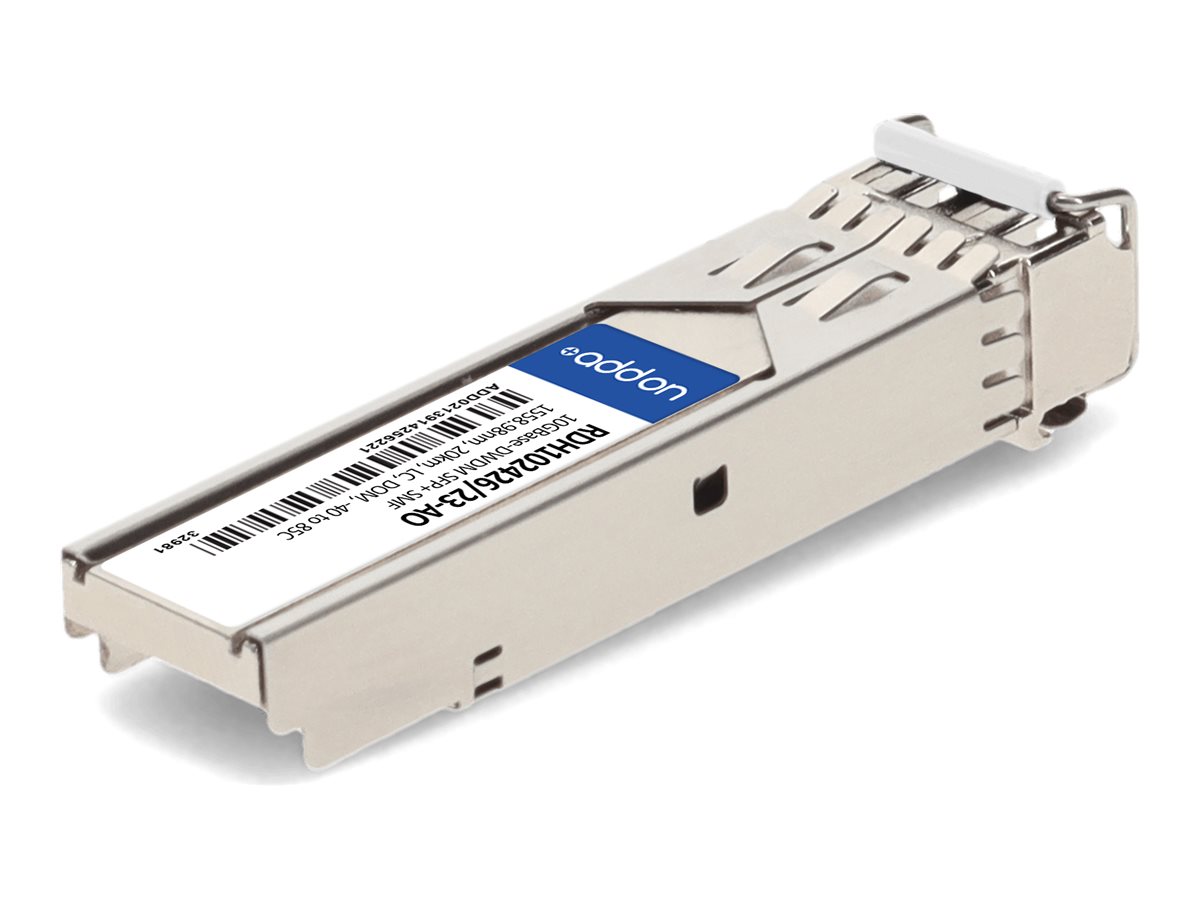

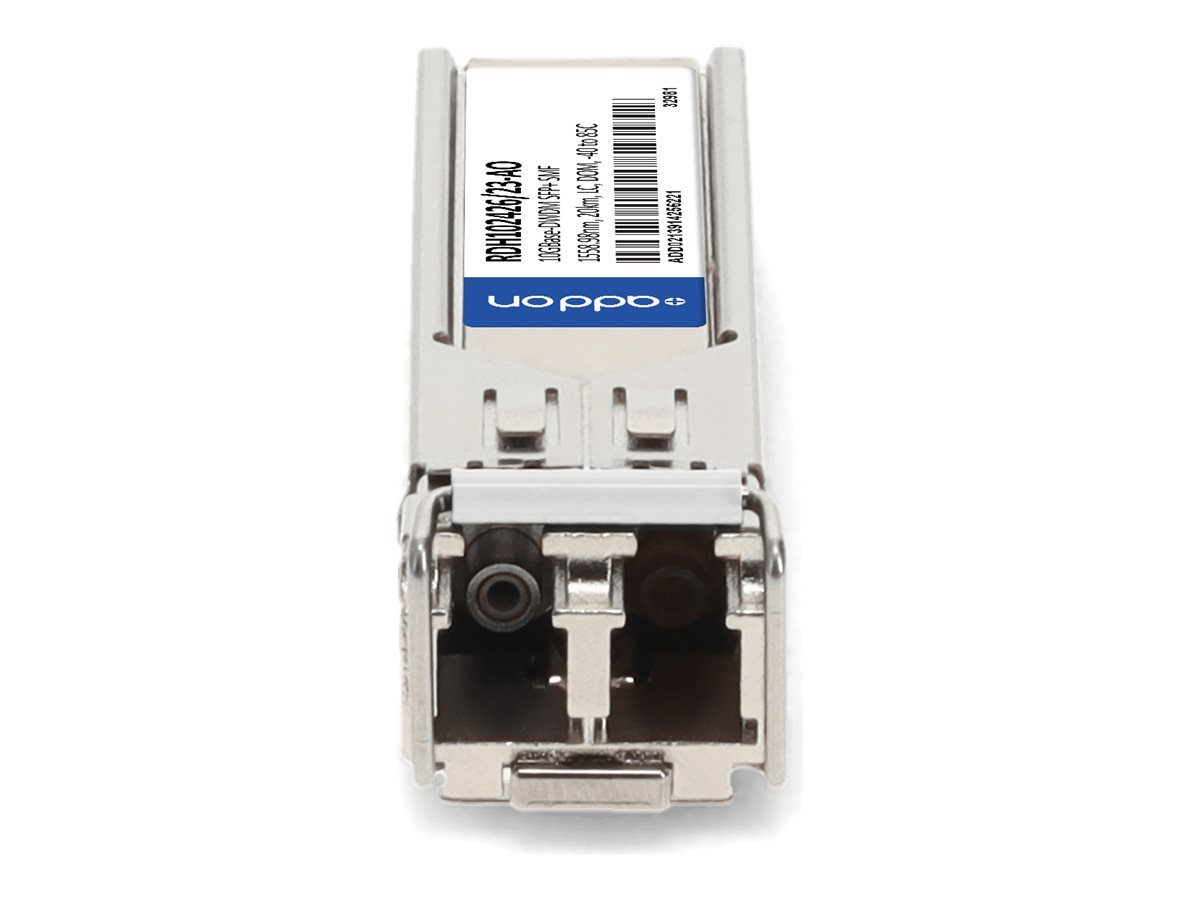

SFP+ transceiver module (equivalent to: LG-Ericsson RDH102426/23) - 10GbE - 10GBase-DWDM - LC single-mode - up to 12.4 miles - channel: 23 - 1558.98 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | AddOn - SFP+ transceiver module - 10GbE - TAA Compliant |
| Device Type | SFP+ transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 10GBase-DWDM |
| Data Transfer Rate | 10 Gbps |
| DWDM Channel | 23 |
| Optical Wave Length | 1558.98 nm |
| Data Link Protocol | 10GbE |
| Max Transfer Distance | 12.4 miles |
| OEM Manufacturer Equivalent Part Number | LG-Ericsson RDH102426/23 |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-DWDM (duplex) - LC single-mode x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | RoHS, Lead-Free, WEEE, REACH, ISO 9001:2015, SFF-8432, SFF-8472 |
| OEM Manufacturer Equivalent Part Number | LG-Ericsson RDH102426/23 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-DWDM |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| DWDM Channel | 23 |
| Optical Wave Length | 1558.98 nm |
| Max Transfer Distance | 12.4 miles |
| Features | PIN Receiver, Digital Optical Monitoring (DOM) support, 100 GHz ITU CH 21, c-band, 100GHz channel spacing, ESD Protector, 192.1 THz frequency, hot-pluggable, low EMI, temperature-stabilized EML transmitter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 2.8 in |
| Shipping Depth | 4.8 in |
| Shipping Height | 1.2 in |
| Shipping Weight | 6.38 oz |
