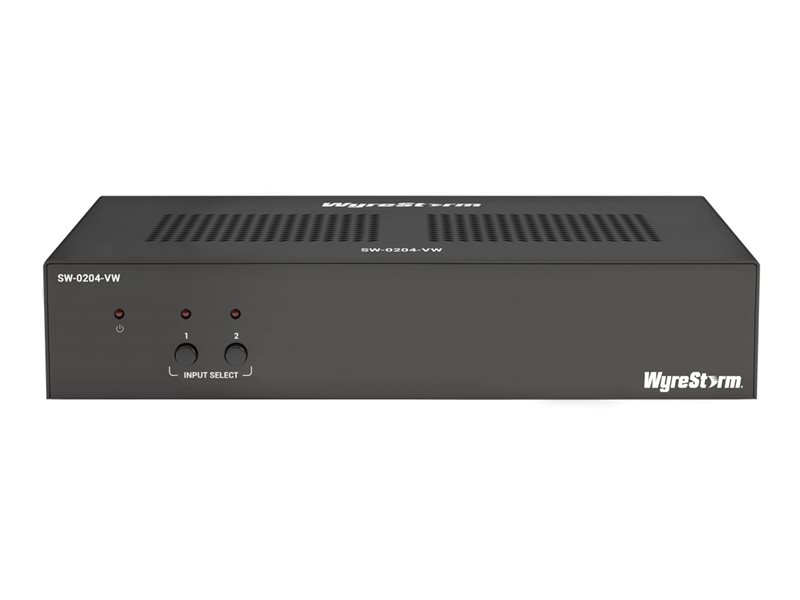

Audio/video over IP decoder / video-wall processor
| Main Specifications | |
|---|---|
| Product Description | WyreStorm SW-0204-VW audio/video over IP decoder / video-wall processor |
| Type | Audio/video over IP decoder / video-wall processor |
| Dimensions (WxDxH) | 8.5 in - 5.5 in - 1.7 in |
| Manufacturer Warranty | 5 years |
| General | |
| Type | Audio/video over IP decoder / video-wall processor |
| Width | 8.5 in |
| Depth | 5.5 in |
| Height | 1.7 in |
| Manufacturer Warranty | |
| Warranty | 5 years |
| Power | |
| Low Voltage Power | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Kit Content | |
| Kit Content | (1) x power adapter ¦ (4) x mounting bracket ¦ (1) x 3-pin terminal block ¦ (1) x 5-pin terminal block |
| Terminals | |
| Terminals | (1) x HDMI input - 19 pin HDMI Type A ¦ (1) x HDMI output - 19 pin HDMI Type A ¦ (1) x RS-232 - 3-pin terminal block ¦ (1) x audio output - 5-pin terminal block ¦ (1) x network - RJ-45 |
| Studio & Production Equipment | |
| Features | Telnet support, web interface, 4K60 4:4:4 signal support, HDCP 2.3 compliant, EDID support, CEC triggering, HDR10 support, Dolby Vision support, rack-mountable, PCM 2.0 support |
