JPEG2000 compression encoder
| Main Specifications | |
|---|---|

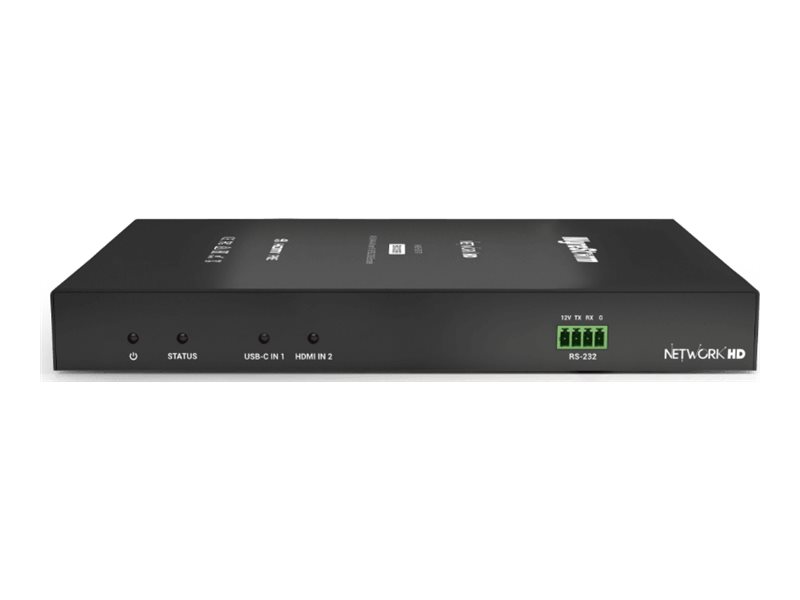

| Product Description | WyreStorm NetworkHD NHD-510-TX JPEG2000 compression encoder |
| Type | JPEG2000 compression encoder |
| Dimensions (WxDxH) | 8.5 in - 4.7 in - 1 in |
| Weight | 28 oz |
| General | |
| Type | JPEG2000 compression encoder |
| Width | 8.5 in |
| Depth | 4.7 in |
| Height | 1 in |
| Weight | 28 oz |
| Power | |
| Power Consumption | 15.4 Watt |
| Low Voltage Power | DC 20 V / PoE Plus |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Kit Content | |
| Kit Content | (1) x JPEG2000 encoder - NHD-510-TX ¦ (2) x rack mount brackets ¦ (4) x wall mounting bracket ¦ (1) x 4-pin terminal block ¦ (1) x 5-pin terminal block |
| Terminals | |
| Terminals | (1) x HDMI input - 19 pin HDMI Type A ¦ (1) x USB - USB-C - DisplayPort Alt mode ¦ (1) x USB Host - 4 pin USB type B ¦ (1) x Dante - RJ-45 - Gigabit Ethernet ¦ (1) x network - RJ-45 - PoE+ ¦ (1) x HDMI output - 19 pin HDMI Type A - with loop through ¦ (1) x optical fiber input - SFP ¦ (1) x balanced audio input/output - 5-pin terminal block ¦ (1) x RS-232 - 4-pin terminal block |
| Studio & Production Equipment | |
| Features | Dolby Vision support, HDR10 support, HLG support, 4K60 4:4:4 signal support, audio return channel (ARC) support, DTS support, HTTPS support, SSH support, TLS suport, DTS-X support, Power Over Ethernet support, rack-mountable, EDID support, HDCP 2.2 compliant, Consumer Electronics Control (CEC), HTTP support, Telnet support, Dante audio encoding, USB charging, 600 MHz signal capacity |
