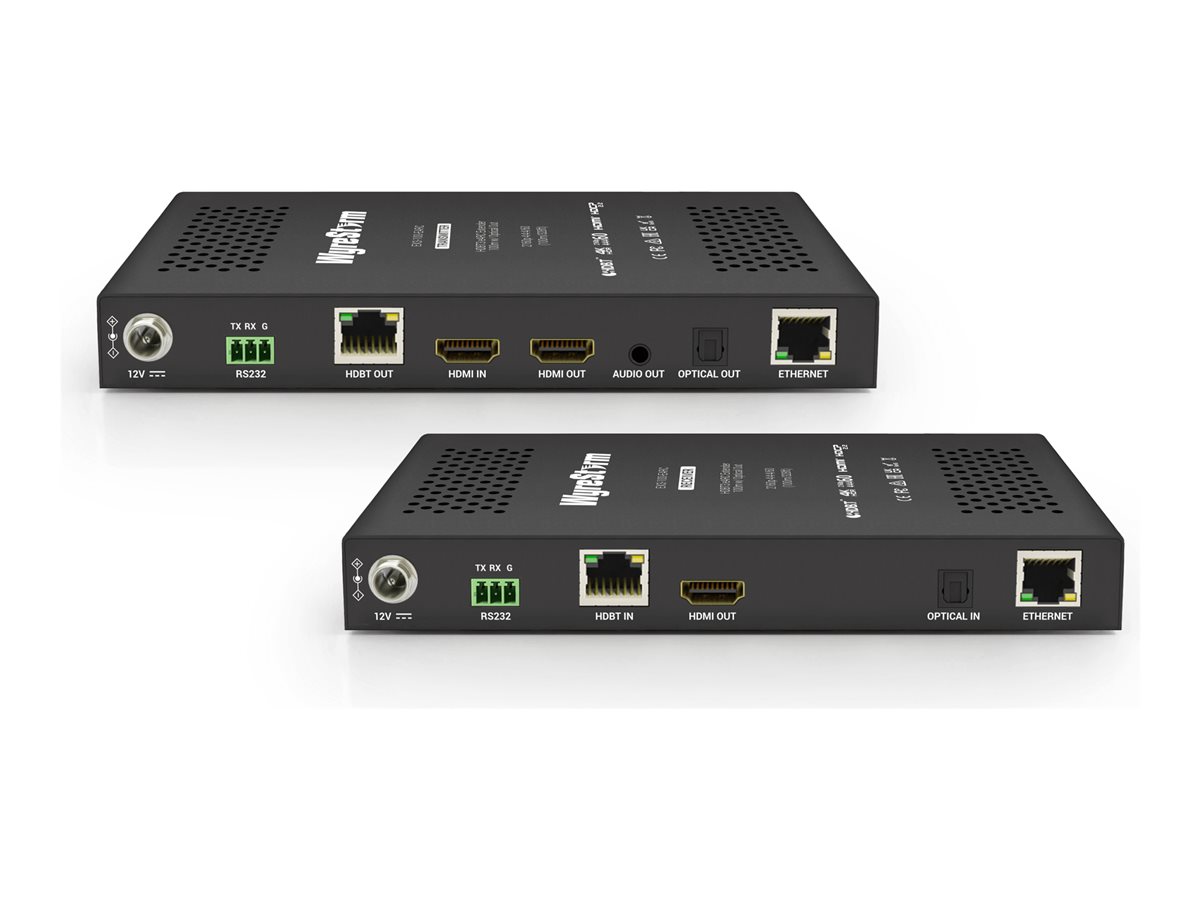

Transmitter and receiver - video/audio/serial extender - HDBaseT - up to 328 ft
| Main Specifications | |
|---|---|
| Product Description | WyreStorm - transmitter and receiver - video/audio/serial extender - HDBaseT |
| Device Type | Video/audio/serial extender |
| Form Factor | External |
| Data Link Protocol | HDBaseT |
| Max Transfer Distance | 328 ft |
| Power Over Ethernet (PoE) | PoH |
| Power | DC 12 V |
| Dimensions (WxDxH) | 7.5 in x 4.5 in x 0.9 in |
| Weight | 20.81 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Video/audio/serial extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x HDMI output (transmitter) - 19 pin HDMI Type A female ¦ 1 x HDBaseT input (transmitter) - RJ-45 ¦ 1 x audio line-out (transmitter) ¦ 1 x HDBaseT output (transmitter) - RJ-45 ¦ 1 x IR output (transmitter) - mini jack ¦ 1 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 1 x HDBaseT output (receiver) - RJ-45 ¦ 1 x RS-232 (receiver) - 3 pin Phoenix ¦ 1 x HDBaseT input (receiver) - RJ-45 ¦ 1 x IR input (receiver) - mini jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | 2 x 3-pin Phoenix connectors, 8 mounting brackets, IR emitter cable, IR receiver cable |
| Compliant Standards | RoHS, FCC, RCM, EAC, EDID compatible, UKCA |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Max Resolution | 5120 x 2160 @ 60 Hz |
| Max Video Bandwidth | 600 MHz |
| Max Transfer Distance | 328 ft |
| Status Indicators | Power, link/activity, eARC |
| Features | Dolby TrueHD support, Pulse-Code Modulation (PCM) support, DTS-HD Master Audio support, Dolby Atmos support, DTS:X support, PCM 2.0 support, Dolby Vision support, HDR10 support, HDR10+ support, Hybrid Log-Gamma (HLG) support, CEC passthrough, eARC support |
| Compliant Standards | HDCP 2.3 |
| Power | |
| Power Over Ethernet (PoE) | PoH |
| Power Device | External power adapter |
| Voltage Required | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 7.5 in |
| Depth | 4.5 in |
| Height | 0.9 in |
| Weight | 20.81 oz |
