DLP projector - laser/phosphor - 3D - 20000 ANSI lumens - WUXGA (1920 x 1200) - 16:10 - LAN
| Main Specifications | |
|---|---|
| Product Description | Christie DWU2400-JS - DLP projector - 3D - LAN |
| Device Type | DLP projector |
| 3D Capable | Yes |
| Microdisplay | DMD Chip |
| Brightness | 20000 ANSI lumens |
| Contrast Ratio | 4000000:1 / 25000:1 (dynamic) |
| Resolution | WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| Lamp Type | Laser/phosphor |
| Lamp Life Cycle | Up to 20000 hour(s) - 50% brightness |
| Video Input | LAN |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 20.5 in x 23.6 in x 7.6 in |
| Weight | 64.82 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | DLP projector |
| 3D Capable | Yes |
| Networking | Ethernet |
| Expansion / Connectivity | |

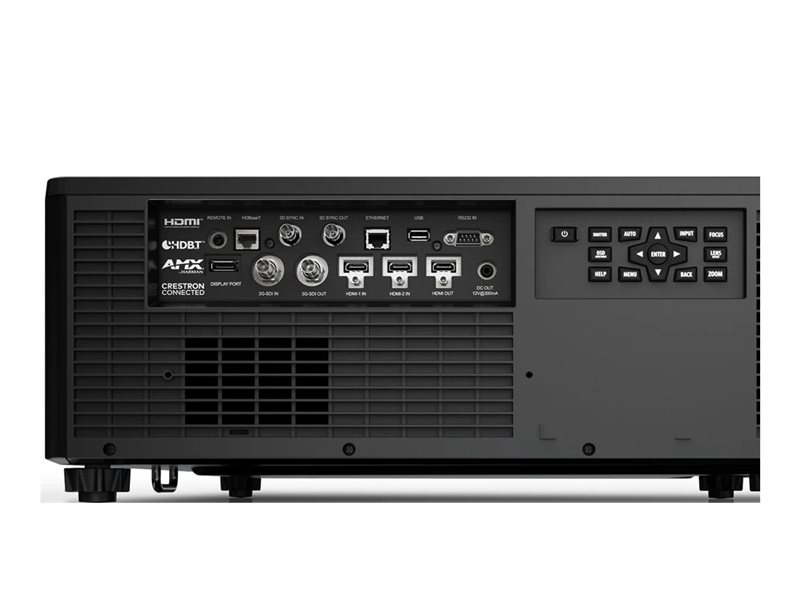

| Interfaces | 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x DisplayPort ¦ 1 x USB ¦ 1 x HDBaseT - RJ-45 ¦ 1 x 3G-SDI input - BNC ¦ 1 x HDMI output - 19 pin HDMI Type A ¦ 1 x 3G-SDI output - BNC ¦ 1 x serial RS-232 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years ¦ Limited warranty - illumination system - 5 years / 20000 hours |
| Power | |
| Power Source | AC |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 111.2 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Video Input | |
| Video Interfaces | HDMI, DisplayPort, 3G-SDI, HDBaseT |
| LAN and Wireless Image Transferring Protocols | Wired LAN |
| Dimensions & Weight | |
| Width | 20.5 in |
| Depth | 23.6 in |
| Height | 7.6 in |
| Weight | 64.82 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 31.3 in |
| Shipping Depth | 38 in |
| Shipping Height | 14.6 in |
| Shipping Weight | 94.8 lbs |
| Projector | |
| Microdisplay | DMD Chip |
| Brightness | 20000 ANSI lumens |
| Contrast Ratio | 4000000:1 / 25000:1 (dynamic) |
| Throw Ratio | 1.25 - 2.0:1 |
| Resolution | WUXGA - WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| Video Bandwidth | 600 MHz |
| Max Sync Rate (V x H) | 120 Hz x 135 kHz |
| Lamp Type | Laser/phosphor |
| Lamp Life Cycle | Up to 20000 hour(s) - 50% brightness |
| Controls & Adjustments | Offset |
| Features | RealBlack, 24/7 operation, Eco Mode, AMX Control System, Crestron Connected, Christie Twist, picture by picture, picture in picture, Christie Mystique compatible, omnidirectional operation |
