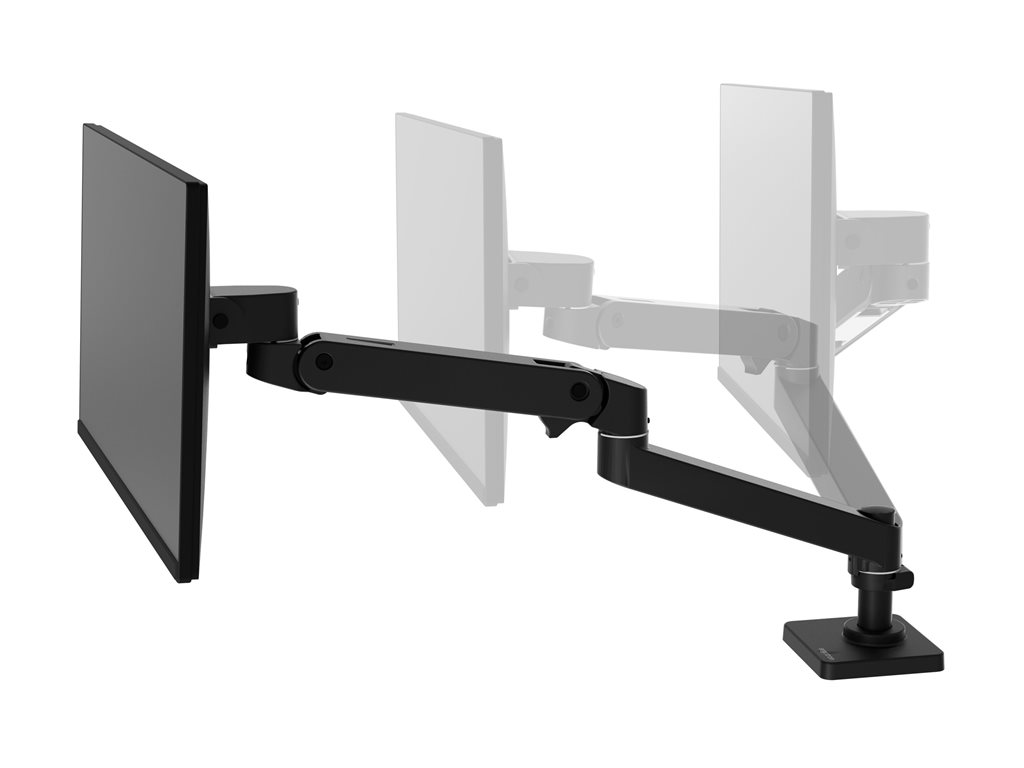

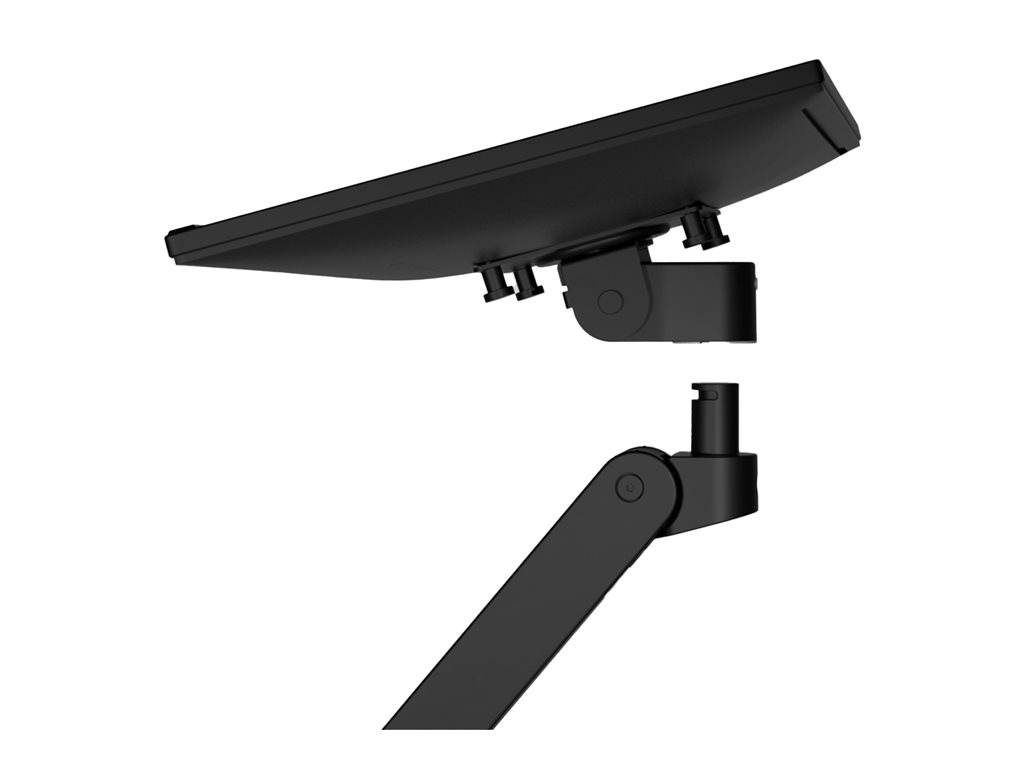

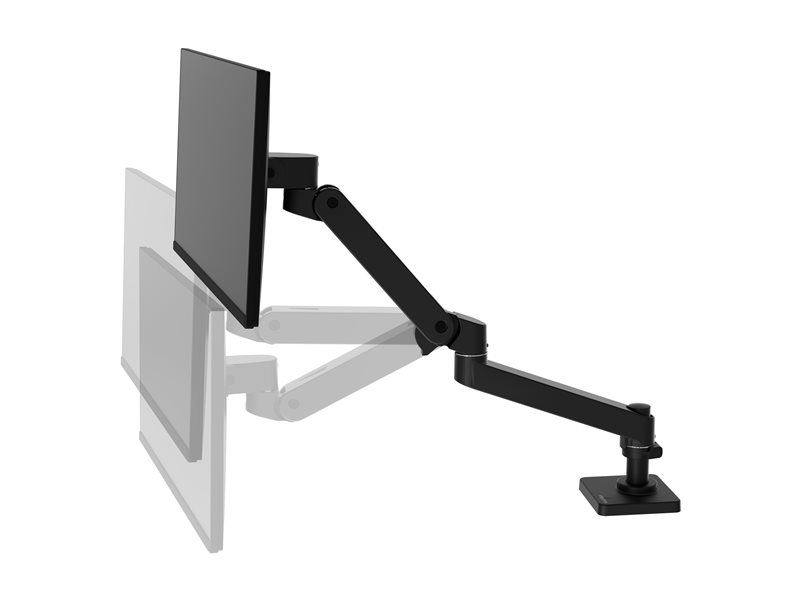

Mounting kit (articulating arm) - modular - for LCD display - black - screen size: up to 34" - desk-mountable - for P/N: 45-460-026, 50-193-200, 60-589-060, 80-107-200, 80-107-216, 97-760-009
| Main Specifications | |
|---|---|
| Product Description | Ergotron LX Pro mounting kit - modular - for LCD display - black |
| Product Type | Mounting kit (modular) - desk-mountable |
| Mounting Components | Articulating arm |
| Tilt | -15° to 70° |
| Pan | 360° |
| Lift | 12.99 in |
| Rotation | 360° |
| Adjustments | Pan, tilt, rotation, lift |
| Weight | 8.16 lbs |
| Recommended Use | LCD display |
| Recommended Display Size | Up to 34" |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Max Load Weight | 22 lbs |
| Color | Black |

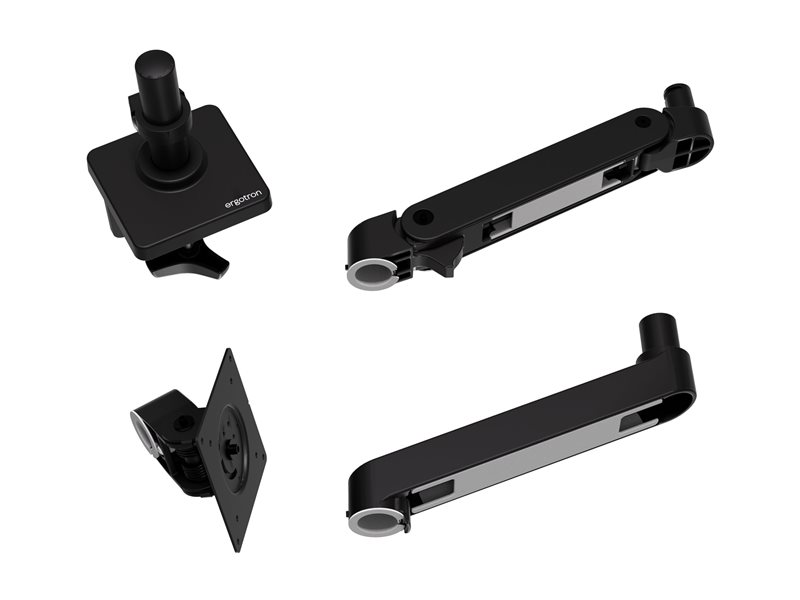

| Package Content | Arm, extension, monitor pivot, desk clamp, pole, mounting hardware |
| Manufacturer Warranty | 10-year warranty |
| Designed For | P/N: 45-460-026, 50-193-200, 60-589-060, 80-107-200, 80-107-216, 97-760-009 |
| General | |
| Weight | 8.16 lbs |
| Color | Black |
| Package Content | Arm, extension, monitor pivot, desk clamp, pole, mounting hardware |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| AV Furniture | |
| Type | Mounting kit |
| Mounting Components | Articulating arm |
| Design | Modular |
| Recommended Use | LCD display |
| Placing / Mounting | Desk-mountable |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Cable Management | Integrated cable management |
| Recommended Display Size | Up to 34" |
| Tilt | -15° to 70° |
| Pan | 360° |
| Lift | 12.99 in |
| Rotation | 360° |
| Adjustments | Pan, tilt, rotation, lift |
| Max Load Weight | 22 lbs |
| Min Load Weight | 4 lbs |
| Dimensions & Weight Details | |
| Shipping Dimensions (WxDxH) / Weight | 13.8 in x 16.3 in x 6.5 in / 11.46 lbs |
| Compliant Standards | VESA MIS-D |
| Compatibility Information | |
| Designed For | P/N: 45-460-026, 50-193-200, 60-589-060, 80-107-200, 80-107-216, 97-760-009 |
