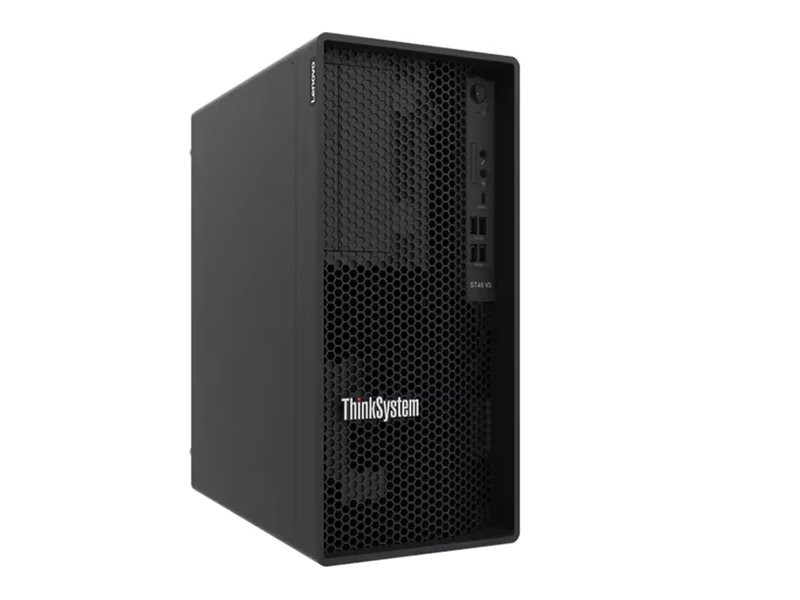

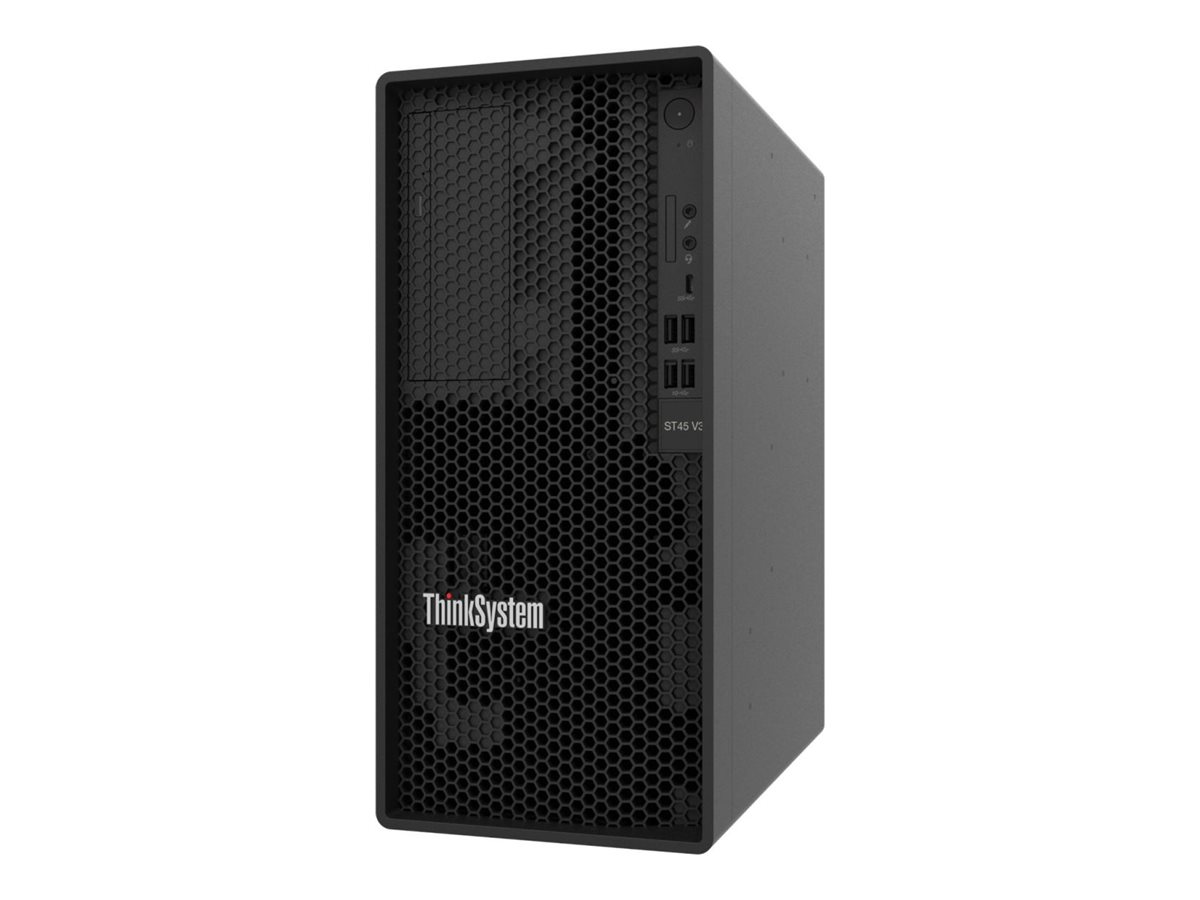

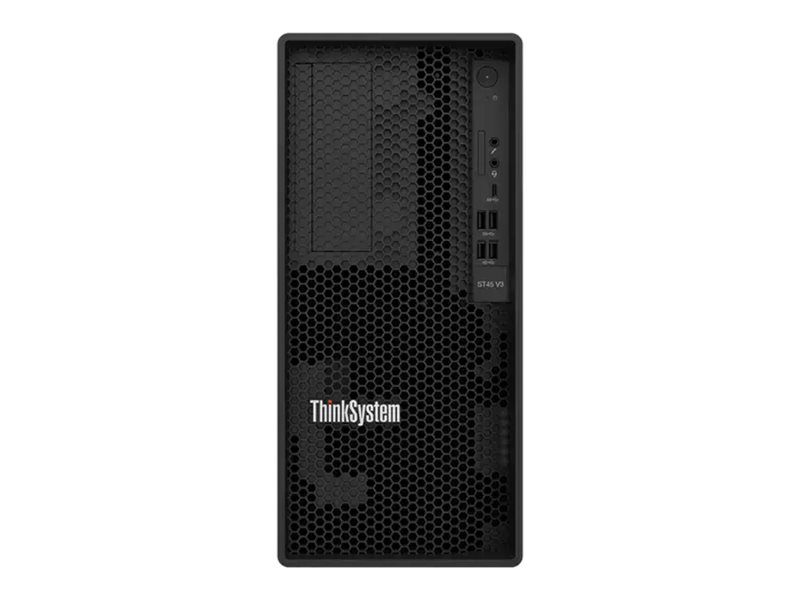

Server - tower 1-way - 1 x EPYC 4124P / up to 5.1 GHz - RAM 16 GB - non-hot-swap 3.5" bay(s) - no HDD - Gigabit Ethernet - no OS - monitor: none
| Main Specifications | |
|---|---|
| Product Description | Lenovo ThinkSystem ST45 V3 - tower EPYC 4124P 3.8 GHz - 16 GB - no HDD |
| Type | Server - tower |
| Localization | Region: EMEA |
| Server Scalability | 1-way |
| Processor | 1 x AMD EPYC 4124P / 3.8 GHz (up to 5.1 GHz, (Quad-Core) |
| Cache Memory | 16 MB L3 cache |
| Cache Per Processor | 16 MB |
| RAM | 16 GB (installed) / 64 GB (max) - DDR5 SDRAM - ECC |
| Storage Controller | SATA |
| Server Storage Bays | Non-hot-swap 3.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Networking | 1GbE |
| Power | (50/60 Hz) |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 6.7 in x 12.4 in x 14.8 in |
| Weight | 18.87 lbs |
| Environmental Standards | ENERGY STAR Qualified EPEAT Bronze |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Server |
| Product Form Factor | Tower |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 1-way |
| Localization | Region: EMEA |
| Expansion / Connectivity | |
| Slots | 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x1 - half-length, full-height |

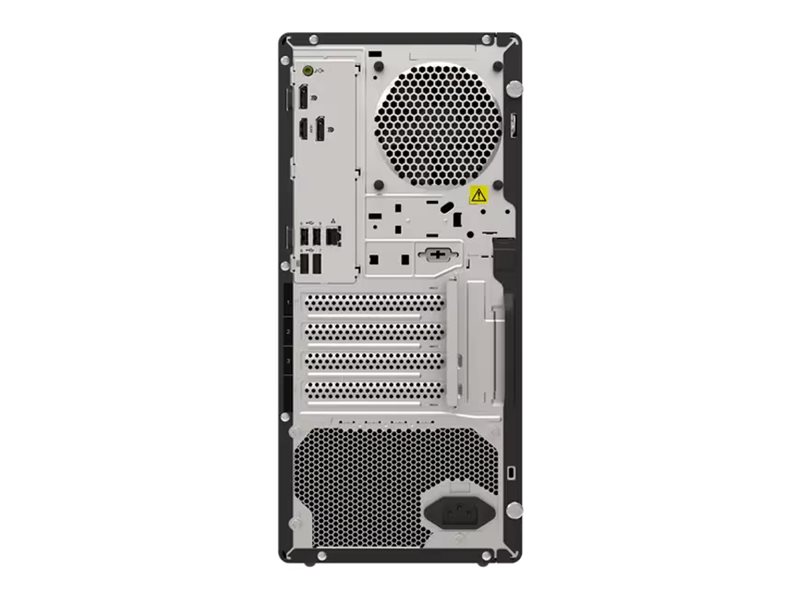

| Interfaces | 4 x USB 2.0 (4 rear) ¦ 1 x audio line-out (1 rear) ¦ 1 x LAN (Gigabit Ethernet) (1 rear) ¦ 1 x HDMI ¦ 2 x DisplayPort ¦ 2 x USB 3.2 Gen 1 (2 front) ¦ 2 x USB 3.2 Gen 2 (2 front) ¦ 1 x USB-C 3.2 Gen 1 (1 front) ¦ 1 x microphone (1 front) ¦ 1 x headphones (1 front) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch |
| Security Slot Type | Kensington security slot |
| Compliant Standards | ANSI/UL 62368-1, IEC 62368-1, CSA C22.2 No. 62368-1, IEC 60950-1, NOM-019, BIS 13252 (Part 1), GS, EN 62368-1, EK1-ITB2000, TUV-GS, INMETRO, UkrCEPRO, CMIM, TP EAC 037/2016, TP TC 004/2011, TP TC 020/2011, EN 55032 Class A, EN55024, EN55035, EN 61000-3-2, EN 61000-3-3, (EU) 2019/424, IEC/EN 63000, FCC-15 (Class A), ICES-003 issue 7 Class A, CISPR 32 Class A, CISPR 35, KN32, KN35, VCCI Class A, BSMI CNS 15936, CNS 15598-1, CNS 15663, AS/NZS CISPR 32 Class A, AS/NZS 62368.1, Energy-Related Products (ErP) Lot 9, CCC, CECP, CELP, GB 17625.1, GB 4943.1, GB/T9254, CQC3135, HJ 2507-2011 |
| RAM | |
| Installed Size | 16 GB (installed) / 64 GB (max) |
| Technology | DDR5 SDRAM - ECC |
| Effective Memory Speed | 2600 MHz |
| Rated Memory Speed | 2600 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 2 (total) / 1 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 16 GB |
| Networking | |
| Ethernet Controller | Realtek RTL8111FP |
| Data Link Protocol | Ethernet, Gigabit Ethernet, Fast Ethernet |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 300 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Storage Controller | |
| Type | 1 x SATA |
| Cache Memory | |
| Installed Size | L3 cache - 16 MB |
| Cache Per Processor | 16 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Interfaces | DisplayPort, HDMI |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 6.7 in |
| Depth | 12.4 in |
| Height | 14.8 in |
| Weight | 18.87 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11 in |
| Shipping Depth | 16.5 in |
| Shipping Height | 21.3 in |
| Processor / Chipset | |
| CPU | AMD EPYC 4124P |
| Clock Speed | 3.8 GHz |
| Max Turbo Speed | 5.1 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Chipset Type | AMD PRO 665 |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Bronze |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
