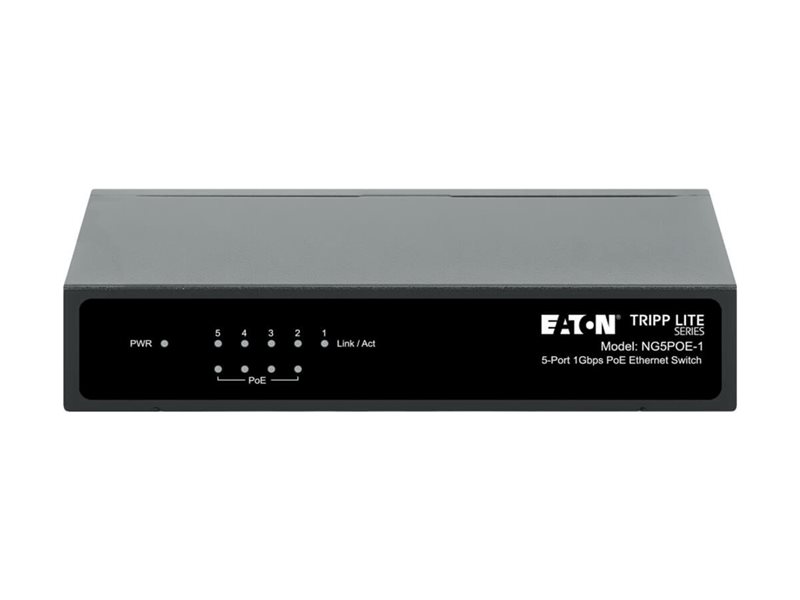

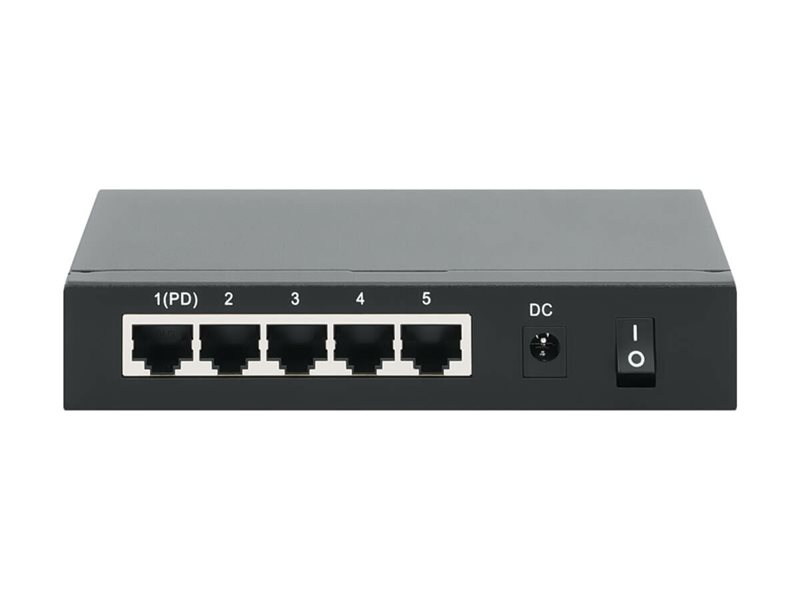

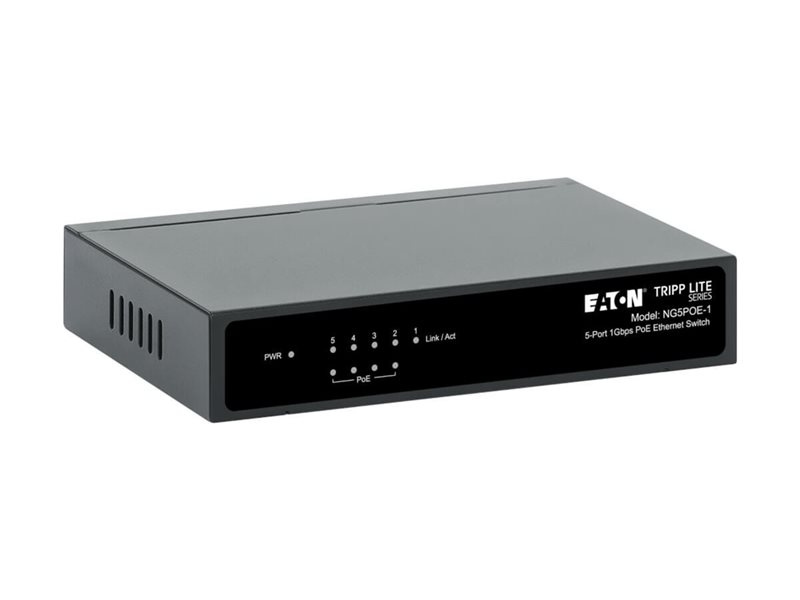

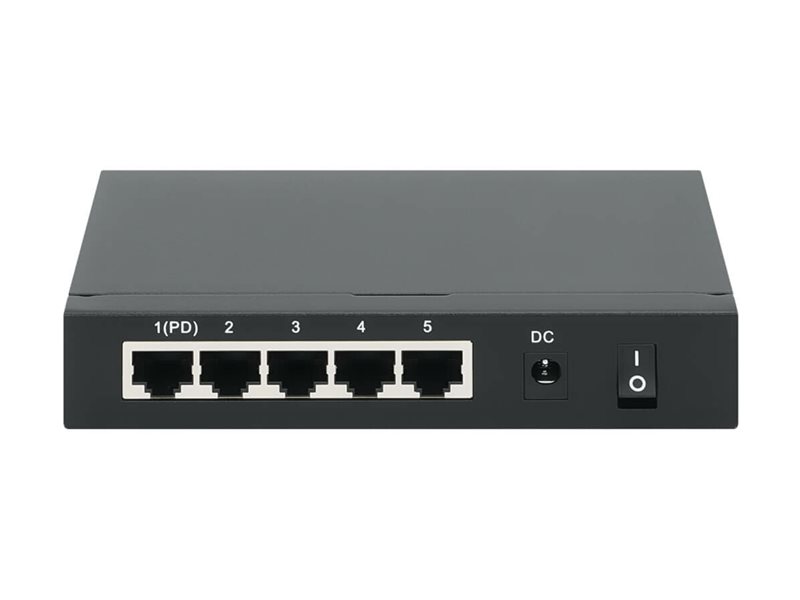

Switch - unmanaged - 5 x 10/100/1000Base-T (PoE+) - desktop, wall-mountable - PoE+ (65 W)
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite series Desktop Gigabit Ethernet Unmanaged Switch PoE+ Pass-Through 5-Port 10/100/1000 Mbps 65W - switch - 5 ports - unmanaged |
| Device Type | Switch - 5 ports - unmanaged |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000Base-T (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 65 W |
| Performance | Switching capacity: 10 Gbps ¦ Port switching capacity: 2 Gbps |
| Jumbo Frame Support | 9216 bytes |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), metal housing, flow control, full duplex mode, half duplex mode, MAC address auto-learning, MAC address auto-aging, fanless, crossover detection, PoE Pass Through |
| Compliant Standards | IEEE 802.3x, IEEE 802.3az, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 5.5 in x 3.1 in x 1.1 in |
| Weight | 26.81 oz |
| Color | Black |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000Base-T (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 65 W |
| Performance | Switching capacity: 10 Gbps ¦ Port switching capacity: 2 Gbps |
| Jumbo Frame Support | 9216 bytes |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), metal housing, flow control, full duplex mode, half duplex mode, MAC address auto-learning, MAC address auto-aging, fanless, crossover detection, PoE Pass Through |
| Compliant Standards | IEEE 802.3x, IEEE 802.3az, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at |
| Status Indicators | Link/activity, power, PoE |
| Expansion / Connectivity | |
| Interfaces | 5 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | Plug and Play, CAN/CSA-C22.2 No. 62368-1, EN 55032, EN 55035, NOM, UL 62368-1, FCC Part 15 A, FCC Part 15 B, RoHS, UKCA |
| Power | |
| Power Device | External power adapter |
| Power Provided | DC 51 V - 1.25 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 63.75 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Min Storage Temperature | 32 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 5.5 in |
| Depth | 3.1 in |
| Height | 1.1 in |
| Weight | 26.81 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.8 in |
| Shipping Depth | 3.5 in |
| Shipping Height | 7.5 in |
| Shipping Weight | 31.39 oz |
