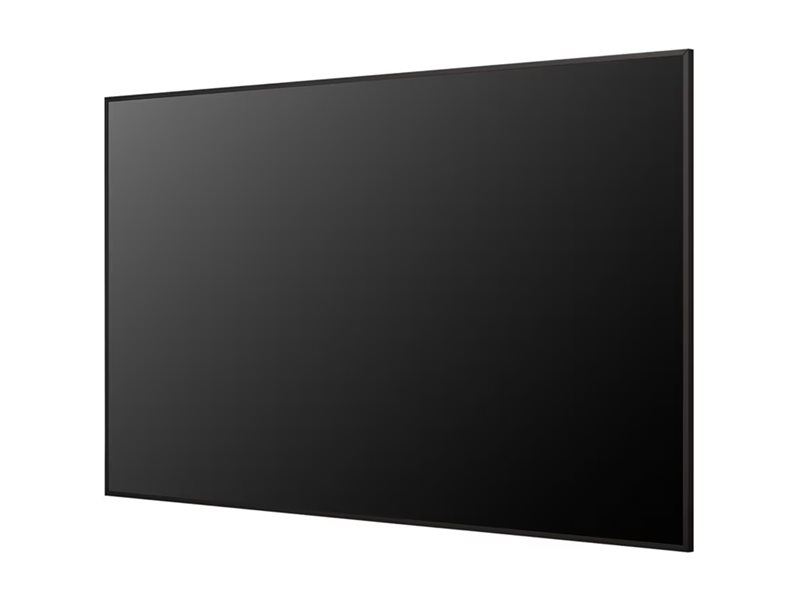

75" Diagonal Class UH7N-M Series LED-backlit LCD display - digital signage with Integrated Pro:Idiom - webOS - 4K UHD (2160p) 3840 x 2160 - Edge LED - black
| Main Specifications | |
|---|---|
| Product Description | LG 75UH7N-M UH7N-M Series - 75" with Integrated Pro:Idiom LED-backlit LCD display - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display with Integrated Pro:Idiom |
| Diagonal Class | 75" |
| Commercial Use | Yes - digital signage |
| Color | Black |
| Platform | webOS |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| PC Interface | DisplayPort |
| Technology | ADS |
| LCD Backlight Technology | LED backlight - Edge LED |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | SNMP support, No Signal image, Local Contents Scheduling, SuperSign CMS compatible, SuperSign Control+ compatible, SuperSign Control compatible, Real Time Communication (webRTC), Local Key Operation, FailOver, SuperSign WB compatible, LG ConnectedCare, 30-degrees tilting installation, Video Tag, booting logo image, Auto Set ID, SI Server Setting, play via URL, Control Manager, SuperSign Cloud, Mobile CMS, Group Manager, ISM Method |
| Settings Cloning Capability | Yes |
| Picture Enhancements | 95% BT.709 color gamut |
| Speaker System | 2 speakers |
| Storage Capacity | 16 GB |
| USB | 2 ports |
| Included Accessories | Remote control, 6 cable holders, RS232C adapter |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 160 watt |
| Power Consumption Stand by | 0.5 watt |
| Dimensions (WxDxH) - without stand | 66.1 in x 1.2 in x 37.7 in |
| Weight | 78.7 lbs |
| Environmental Standards | ENERGY STAR Qualified, EPEAT Bronze |
| General | |
| Product Type | LED-backlit LCD flat panel display with Integrated Pro:Idiom |
| Power Consumption (Max) | 247 watt |
| Power Consumption Operational | 160 watt |
| Diagonal Class | 75" |
| Commercial Use | Yes - digital signage |
| Series | UH7N-M Series |
| Platform | webOS |
| Operating System | webOS 6.0 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Temperature sensor, auto brightness sensor, acceleration sensor |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| PC Interface | DisplayPort |
| Modes | Portrait mode, landscape mode, Tiling Mode (15 x 15), PM mode |
| Picture Enhancements | 95% BT.709 color gamut |
| Dimensions | Without stand |
| Width | 66.1 in |
| Depth | 1.2 in |
| Height | 37.7 in |
| Weight | 78.7 lbs |
| Enclosure Color | Black |
| Miscellaneous | |
| Included Accessories | 6 cable holders, RS232C adapter |
| Compliant Standards | Plug and Play, FCC Class B certified, CB, EMC, CEC, EN 13501-1, KC, NRTL, IP5X, HDCP 2.2, HDCP 1.3, HDCP 1.4, BS 476 Part 7 Class 1, ISO/IEC 15408 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 watt |
| Power Consumption (Off Mode) | 0.5 watt |
| Heat Generation Details | Cabinet - typical - 546 BTU/h ¦ Cabinet - max - 843 BTU/h |
| Features | Smart energy saving, WOL (Wake on LAN) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% |
| Display | |
| LCD Display Technology | ADS |
| Color Support | 1070000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | LED backlight - Edge LED |
| Coating | Conformal, 25% haze |
| Image Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 1000000:1 |
| Brightness | 700 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 8 ms |
| Display Menu Language | Multilingual |
| Backlight Life | 50,000 hour(s) |
| Commercial Features | SNMP support, No Signal image, Local Contents Scheduling, SuperSign CMS compatible, SuperSign Control+ compatible, SuperSign Control compatible, Real Time Communication (webRTC), Local Key Operation, FailOver, SuperSign WB compatible, LG ConnectedCare, 30-degrees tilting installation, Video Tag, booting logo image, Auto Set ID, SI Server Setting, play via URL, Control Manager, SuperSign Cloud, Mobile CMS, Group Manager, ISM Method |
| Settings Cloning Capability | Yes |
| Operation Hours / Days | 24 / 7 |
| Additional Features | Crestron Connected Compatible, BEACON technology, picture in picture (no tuner), picture by picture (no tuner), 8-bit support, Cisco Certified |
| Connections | |

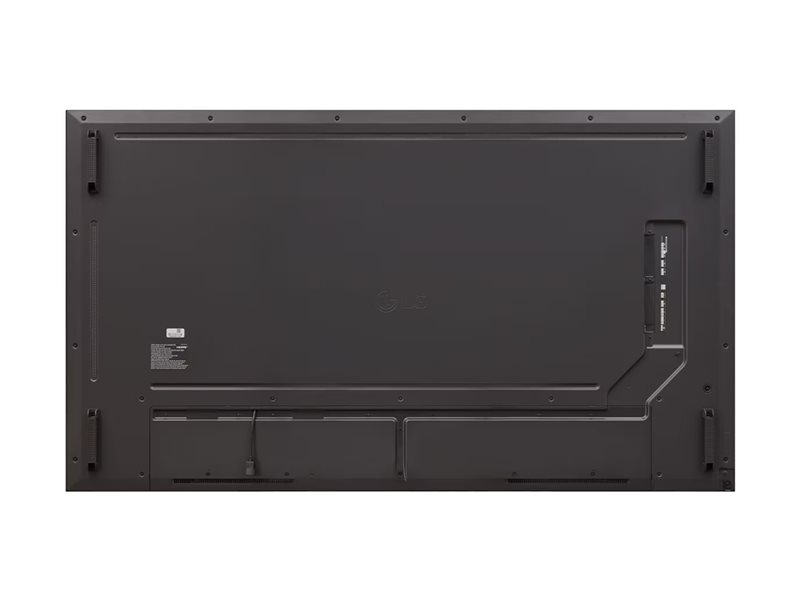

| Connector Type | 2 x HDMI input ¦ DisplayPort input ¦ RS-232C input ¦ LAN input ¦ 2 x USB 2.0 ¦ USB-C 2.0 ¦ Audio line-out ¦ RS-232C output |
| Remote Control | |
| Type | Remote control |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 20 watt |
| Additional Features | Audio Return Channel (ARC) |
| Speakers | 2 x main channel speaker - 10 watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 71.7 in |
| Depth (Shipping) | 7.9 in |
| Height (Shipping) | 43.9 in |
| Weight (Shipping) | 97 lbs |
| Network & Internet Multimedia | |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| LAN Protocol | Ethernet |
| Connect & Share | Screen Share |
| Stands & Mounts | |
| Stand | Optional |
| Flat Panel Mount Interface | 600 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Configuration | 16 GB |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Bronze |
| ENERGY STAR Certified | Yes |
