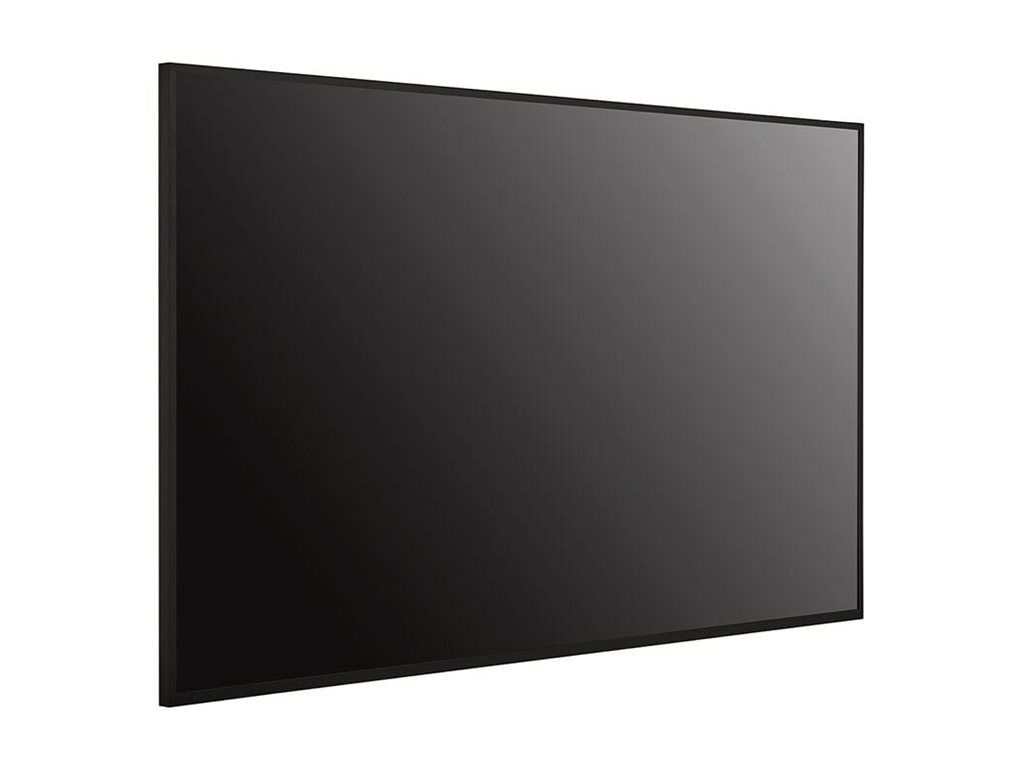

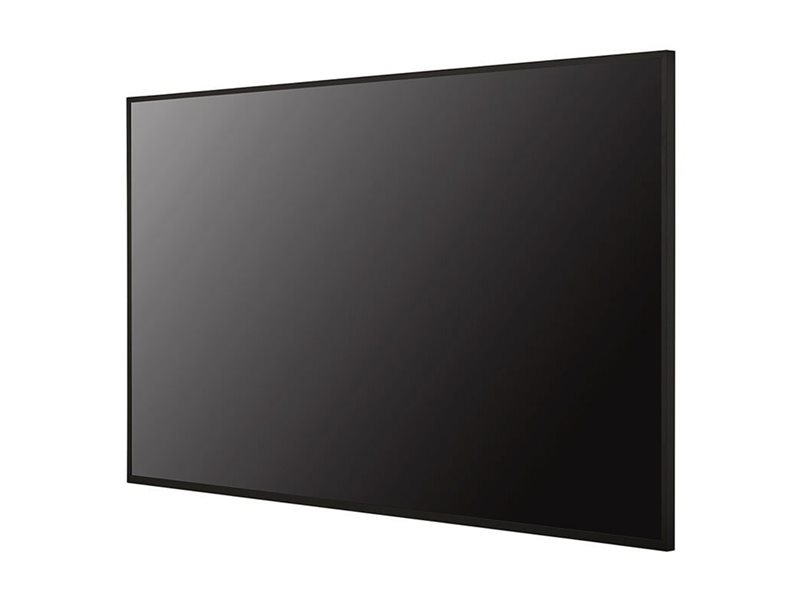

55" Diagonal Class UV5N-E Series LED-backlit LCD display - digital signage with Integrated Pro:Idiom - BrightSignOS - 4K UHD (2160p) 3840 x 2160 - Edge LED - black
| Main Specifications | |
|---|---|
| Product Description | LG 55UV5N-E UV5N-E Series - 55" with Integrated Pro:Idiom LED-backlit LCD display - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display with Integrated Pro:Idiom |
| Diagonal Class | 55" |
| Commercial Use | Yes - digital signage |
| Color | Black |
| Platform | BrightSignOS |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| PC Interface | DisplayPort |
| Technology | IPS |
| LCD Backlight Technology | LED backlight - Edge LED |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | SNMP support, No Signal image, Local Contents Scheduling, SuperSign CMS compatible, SuperSign Control+ compatible, SuperSign Control compatible, Real Time Communication (webRTC), Local Key Operation, FailOver, SuperSign WB compatible, LG ConnectedCare, 30-degrees tilting installation, Video Tag, conformal coating, booting logo image, Auto Set ID, SI Server Setting, play via URL, Control Manager, SuperSign Cloud, Mobile CMS, Group Manager, ISM Method |
| Settings Cloning Capability | Yes |
| Picture Enhancements | 95% BT.709 color gamut |
| Speaker System | 2 speakers |
| Storage Capacity | 16 GB |
| USB | Yes |
| Included Accessories | Remote control, 2 cable holders, RS232C adapter |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 110 watt |
| Power Consumption Stand by | 0.5 watt |
| Dimensions (WxDxH) - without stand | 48.5 in x 1.2 in x 27.8 in |
| Weight | 35.49 lbs |
| Environmental Standards | ENERGY STAR Qualified, EPEAT Bronze |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LED-backlit LCD flat panel display with Integrated Pro:Idiom |
| Power Consumption (Max) | 160 watt |
| Power Consumption Operational | 110 watt |
| Diagonal Class | 55" |
| Commercial Use | Yes - digital signage |
| Series | UV5N-E Series |
| Platform | BrightSignOS |
| Operating System | webOS6.0 (BrightSignOS compatible) |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Temperature sensor, auto brightness sensor, acceleration sensor |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| PC Interface | DisplayPort |
| Modes | Portrait mode, landscape mode, Tiling Mode (15 x 15), PM mode |
| Picture Enhancements | 95% BT.709 color gamut |
| Protection | Dustproof |
| Dimensions | Without stand |
| Width | 48.5 in |
| Depth | 1.2 in |
| Height | 27.8 in |
| Weight | 35.49 lbs |
| Enclosure Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 2 cable holders, RS232C adapter |
| Compliant Standards | Plug and Play, FCC Class B certified, EMC, CEC, NRTL, IP5X, HDCP 2.2, HDCP 1.3, HDCP 1.4 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 watt |
| Power Consumption (Off Mode) | 0.5 watt |
| Heat Generation Details | Cabinet - typical - 375 BTU/h ¦ Cabinet - max - 546 BTU/h |
| Features | Smart energy saving, WOL (Wake on LAN) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% |
| Display | |
| LCD Display Technology | IPS |
| Color Support | 1070000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | LED backlight - Edge LED |
| Coating | 28% haze |
| Image Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 1000000:1 |
| Brightness | 500 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 8 ms |
| Display Menu Language | Multilingual |
| Backlight Life | 50,000 hour(s) |
| Commercial Features | SNMP support, No Signal image, Local Contents Scheduling, SuperSign CMS compatible, SuperSign Control+ compatible, SuperSign Control compatible, Real Time Communication (webRTC), Local Key Operation, FailOver, SuperSign WB compatible, LG ConnectedCare, 30-degrees tilting installation, Video Tag, conformal coating, booting logo image, Auto Set ID, SI Server Setting, play via URL, Control Manager, SuperSign Cloud, Mobile CMS, Group Manager, ISM Method |
| Settings Cloning Capability | Yes |
| Operation Hours / Days | 24 / 7 |
| Additional Features | Crestron Connected Compatible, BEACON technology, Daisy Chain, 10-bit support, picture in picture (no tuner), picture by picture (no tuner), Cisco Certified |
| Connections | |
| Connector Type | 3 x HDMI input ¦ DisplayPort input ¦ RS-232C input ¦ LAN input ¦ USB 2.0 ¦ Infrared input ¦ Audio line-out ¦ HDMI output ¦ RS-232C output |
| Remote Control | |
| Type | Remote control |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 20 watt |
| Additional Features | Audio Return Channel (ARC) |
| Speakers | 2 x main channel speaker - 10 watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 53.5 in |
| Depth (Shipping) | 6 in |
| Height (Shipping) | 31.9 in |
| Weight (Shipping) | 45.19 lbs |
| Network & Internet Multimedia | |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| LAN Protocol | Ethernet |
| Connect & Share | Screen Share |
| Stands & Mounts | |
| Stand | Optional |
| Flat Panel Mount Interface | 300 x 300 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 1 |
| Configuration | 16 GB |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Bronze |
| ENERGY STAR Certified | Yes |
