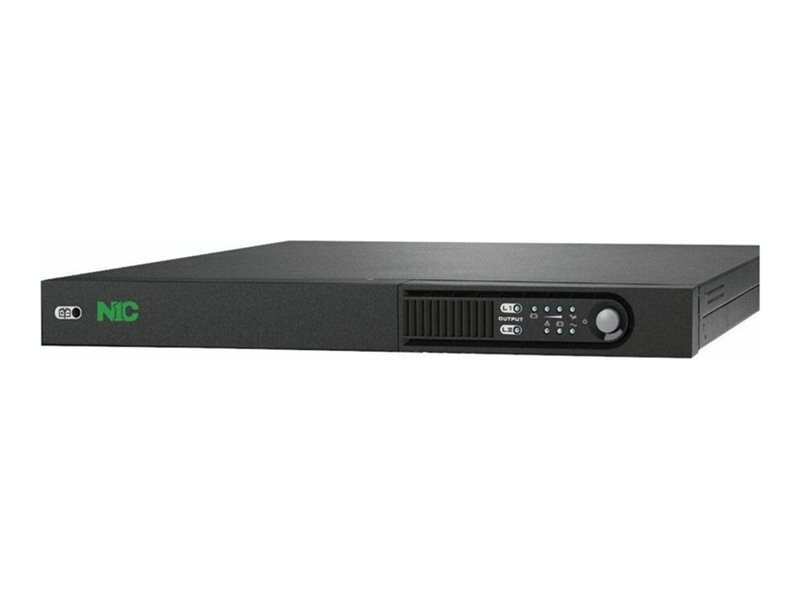

UPS (rack-mountable) - AC 120 V - 2700 watt - 3000 VA - 1-phase - lithium iron phosphate - USB, Ethernet - output connectors: 4 - 1U - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | N1C C-Series N1C.C3000 - UPS - 2700 watt - 3000 VA - LiFePO4 - TAA Compliant |
| Device Type | UPS - rack-mountable |
| Rack Size | 1U |
| Weight | 31.08 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 120 V |
| Output Voltage | AC 110/120 V |
| Power Capacity | 2700 watt / 3000 VA |
| Input Connectors | 1 x power NEMA L5-30P |
| Output connectors | 3 x power NEMA 5-15/20R ¦ 1 x power NEMA L5-30R |
| Battery | Lithium iron phosphate |
| Run Time (Up To) | 8.5 min at half load |
| Networking | USB, Ethernet |
| Remote Management Protocol | SNMP |
| Included Accessories | 2-/4-post rail kit, SNMP card |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 17.2 in x 22.8 in x 1.7 in |
| Manufacturer Warranty | 10-year warranty |
| General | |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 1U |
| Expansion / Connectivity | |
| Interfaces | LAN - RJ-45 ¦ 1 x USB ¦ 1 x EPO (emergency power off) ¦ 1 x RS-232 |
| Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Included Accessories | 2-/4-post rail kit, SNMP card |
| Cables Included | USB cable ¦ Power cable 6 ft |
| Features | 15-year battery lifespan, emergency power off, medical grade |
| Compliant Standards | CSA C22.2 No. 107.3, FCC Part 15 A, UL 1642, UL 1778, UN38.3 |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | USB, Ethernet |
| Remote Management Protocol | SNMP |
| Software / System Requirements | |
| Software Included | WiseInsight |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 90% |
| Battery | |
| Technology | Lithium iron phosphate |
| Run Time (Up To) | 8.5 min at half load ¦ 4 min at full load |
| Recharge Time | 2 hours |
| Transfer Time | 0 ms |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 87 - 145 V |
| Input Wiring | 1-phase |
| Input Connectors | 1 x power NEMA L5-30P |
| Power Output Connectors Details | 3 x power NEMA 5-15/20R ¦ 1 x power NEMA L5-30R |
| Output Voltage | AC 110/120 V |
| Power Capacity | 2700 watt / 3000 VA |
| Output Waveform | Pure sine wave |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 22.8 in |
| Height | 1.7 in |
| Weight | 31.08 lbs |
