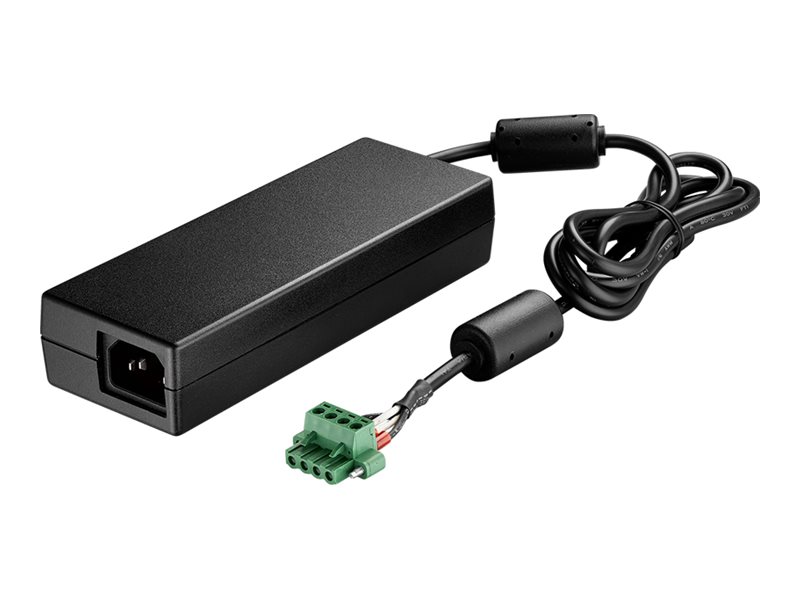

Power adapter - AC 100-240 V - 150 Watt - PFC
| Main Specifications | |
|---|---|
| Product Description | FSP - power adapter - 150 Watt |
| Device Type | Power adapter - Power Factor Correction (PFC) - external |
| Input Voltage | AC 100-240 V |
| Output Voltage | DC 19 V |
| Power Capacity | 150 Watt |
| Input Connectors | Power IEC 60320 C14 |
| Output connectors | 1 x 4 pin terminal block |
| Dimensions (WxDxH) | 3 in x 6 in x 1 in |
| Environmental Standards | ENERGY STAR |
| General | |
| Device Type | Power adapter - Power Factor Correction (PFC) - external |
| Miscellaneous | |
| Cables Included | Power cable 5 ft |
| MTBF | 100,000 hours |
| Compliant Standards | Energy-Related Products (ErP) Lot 7, EPS, CB, UL, FCC, TUV, RCM, CCC, PSE Mark, KC, BSMI, EAC, DoE Level VI, RoHS, IEC 61000-3-2 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Input Voltage Range | AC 90 - 264 V |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | Power IEC 60320 C14 |
| Power Output Connectors Details | 1 x 4 pin terminal block |
| Output Voltage | DC 19 V |
| Max Electric Current | 7.89 A |
| Power Capacity | 150 Watt |
| Efficiency | 88% |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 6 in |
| Height | 1 in |
| Sustainability Information | |
| ENERGY STAR | Yes |
