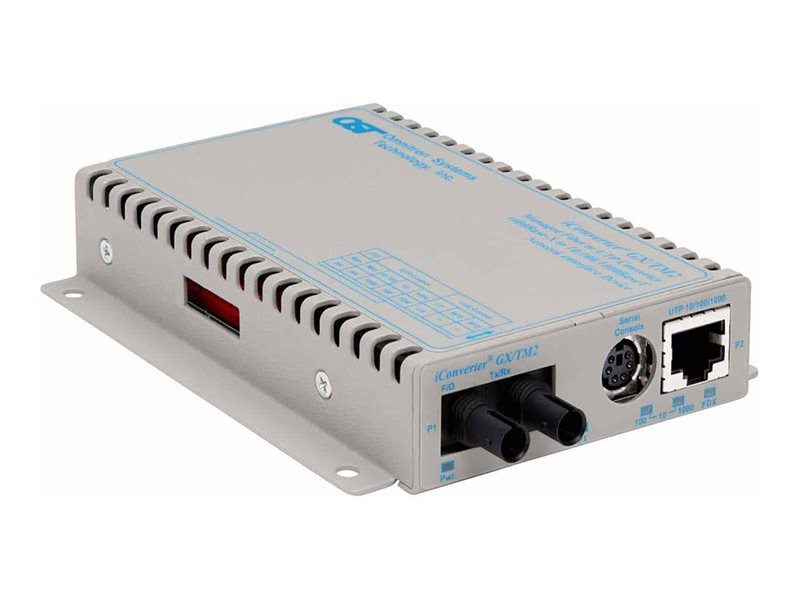

Fiber media converter - 1GbE - Ethernet 10/100/10000Base-T, 1000Base-X, 1000Base-BX - RJ-45 / ST multi-mode - up to 722 ft - 850 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Omnitron iConverter GX/TM2 - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE - TAA Compliant |
| Device Type | Fiber media converter - RJ-45 / ST multi-mode |
| Form Factor | External |
| Cabling Type | Ethernet 10/100/10000Base-T, 1000Base-X, 1000Base-BX |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Remote Management Protocol | Telnet, SNMP |
| Max Transfer Distance | 722 ft |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 3.1 in x 4.8 in x 1 in |
| Weight | 8 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10/100/10000Base-T - RJ-45 female ¦ 1 x RS-232 (management) - 6 pin mini-DIN female ¦ 1 x Ethernet 1000Base-X - SC single-mode female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 450,000 hours |
| Compliant Standards | cUL, UL, NEBS level 3, UKCA, FCC Class A certified, BAA, NDAA, RoHS, WEEE, REACH, IPv4, EIA/TIA 568A |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10/100/10000Base-T, 1000Base-X, 1000Base-BX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Remote Management Protocol | Telnet, SNMP |
| Max Transfer Distance | 722 ft |
| Features | Multimode |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ah, IEEE 802.1ad |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.1 in |
| Depth | 4.8 in |
| Height | 1 in |
| Weight | 8 oz |
