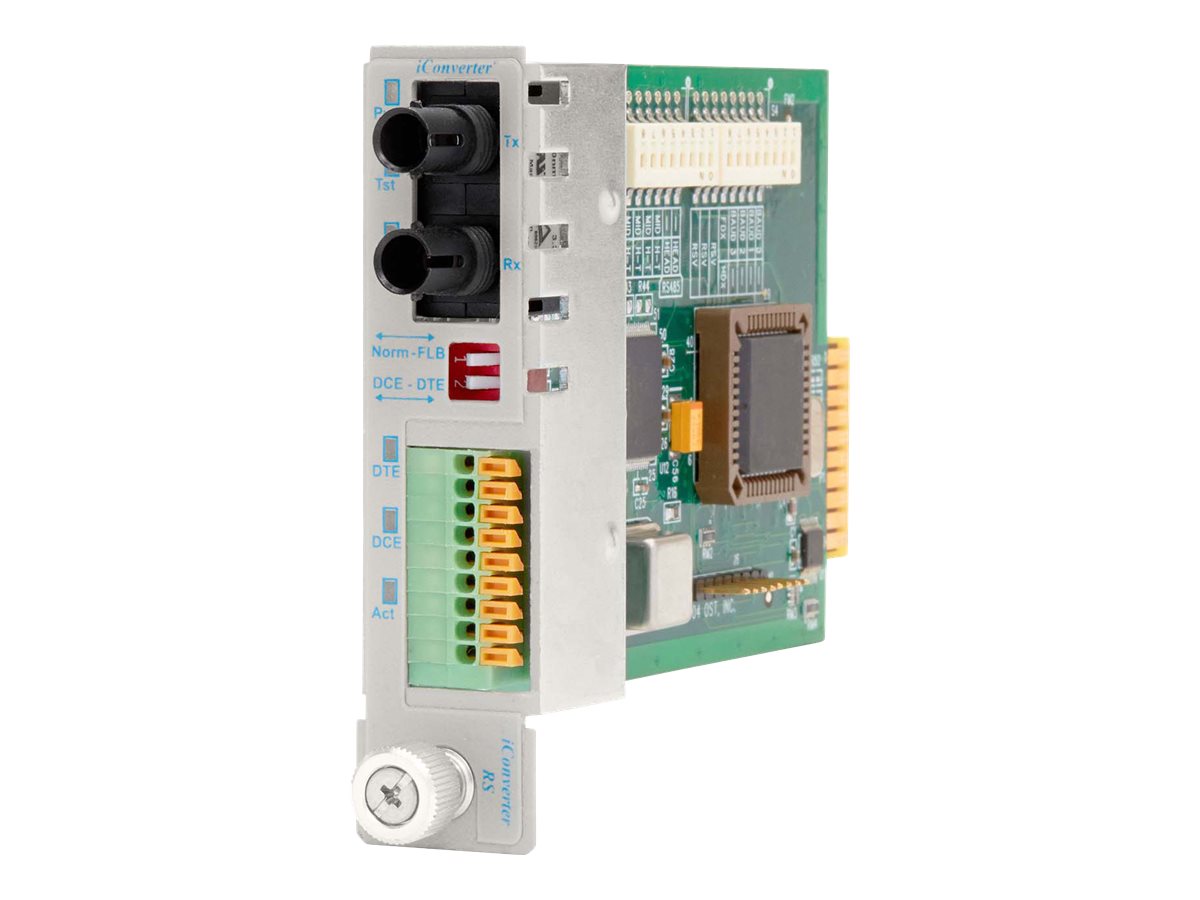

Media converter - RS-422, RS-485 - ST multi-mode / 9 pin D-Sub (DB-9) - up to 3.1 miles - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | Omnitron iConverter - media converter - RS-422, RS-485 |
| Device Type | Media converter - ST multi-mode / 9 pin D-Sub (DB-9) |
| Form Factor | Plug-in module |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | RS-422, RS-485 |
| Remote Management Protocol | SNMP, Telnet |
| Max Transfer Distance | 3.1 miles |
| Dimensions (WxDxH) | 0.9 in x 4.5 in x 2.8 in |
| Weight | 8.01 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Media converter |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x RS-422/485 - ST multi-mode female x 2 ¦ 1 x RS-422/485 - DB-9 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 850,000 hours |
| Compliant Standards | FCC Class A certified, UL |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-422, RS-485 |
| Optical Wave Length | 1310 nm |
| Remote Management Protocol | SNMP, Telnet |
| Max Transfer Distance | 3.1 miles |
| Status Indicators | Power, link/activity |
| Features | Full duplex mode |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Dimensions & Weight | |
| Width | 0.9 in |
| Depth | 4.5 in |
| Height | 2.8 in |
| Weight | 8.01 oz |
