Network surveillance camera - bullet - outdoor - color (Day&Night) - 5 MP - 2592 x 1944 - fixed iris - fixed focal - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3
| Main Specifications | |
|---|---|

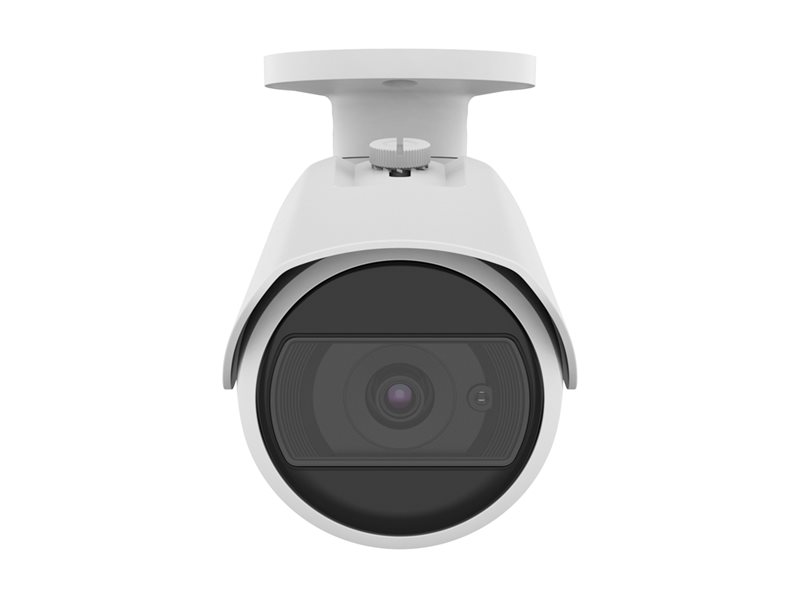

| Product Description | Hanwha Vision WiseNet Q QNO-C8013R - network surveillance camera - bullet |
| Device Type | Network surveillance camera - fixed - bullet - outdoor |
| Dimensions (WxDxH) | 3.7 in x 9.7 in x 3.7 in |
| Weight | 31.39 oz |
| Color | White, RAL 9003 |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2592 x 1944 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 1/2.8" - 5 MP |
| Minimum Illumination | 0.05 lux - color - F1.6 - 30 IRE - shutter 1/30 sec ¦ 0.005 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Focal Length Control | Fixed focal |
| Focal Length | 3 mm |
| Focus Adjustment | Fixed focus (min distance 0.2 in) |
| Lens Iris | F/1.6 - fixed iris |
| Panning Range (degree) | 0 to 360 |
| Tilting Range (degree) | 0 to 100 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 3 |
| Features | WiseStream III support, WiseNR II, 360° rotation, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, dynamic privacy masking, Gain Control, white balance, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Lens Distortion Compensation (LDC), electronic shutter, digital PTZ function, image flip, image mirror, Hallway View, Object Detection, Person Detection, Vehicle Detection, Best Shot Selector (BSS), Defocus Detection, Tampering detection, people counting, vehicle counting, queue management, Heat Map, alarm notifications, Smart Codec, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, firmware encryption, secure boot, signed firmware, digest authentication, Access Control, loitering detection, entrance / exit detection, Line Crossing Detection, hard-coated dome, color identification, clothes color detection, vehicle color recognition, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, aluminum housing |
| Environmental Parameters (operating) | -22 °F - 131 °F; 0 - 100% (condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Formats | G.711 u-law, G.726, ADPCM, AAC-LC, G.711 |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Width | 3.7 in |
| Depth | 9.7 in |
| Height | 3.7 in |
| Weight | 31.39 oz |
| Expansion / Connectivity | |
| Ports | Alarm I/O ¦ Audio line-in/microphone ¦ USB - Micro-USB Type B ¦ LAN - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2 |
| Miscellaneous | |
| Compliant Standards | FCC, cULus, EAC, NDAA, IEEE 802.1x, IEEE 802.3af, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI 32 Class A, RCM, AS/NZ CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, IEC/EN 60529 IP66, IEC/EN 62262 IK10, EN 62676-4 |
| Color | White, RAL 9003 |
| Power | |
| Power Requirements | PoE Class 3 |
| Power Device | 8.1 watt |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 100% (condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2592 x 1944 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/25000 sec |
| Minimum Illumination | 0.05 lux - color - F1.6 - 30 IRE - shutter 1/30 sec ¦ 0.005 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 82 ft |
| Digital Video Capture Resolution | 2592 x 1944, 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Frame Rate (max) | 30 frames per second |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Features | WiseStream III support, WiseNR II, 360° rotation, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, dynamic privacy masking, Gain Control, white balance, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Lens Distortion Compensation (LDC), electronic shutter, digital PTZ function, image flip, image mirror, Hallway View, Object Detection, Person Detection, Vehicle Detection, Best Shot Selector (BSS), Defocus Detection, Tampering detection, people counting, vehicle counting, queue management, Heat Map, alarm notifications, Smart Codec, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, firmware encryption, secure boot, signed firmware, digest authentication, Access Control, loitering detection, entrance / exit detection, Line Crossing Detection, hard-coated dome, color identification, clothes color detection, vehicle color recognition, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, aluminum housing |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 3 mm |
| Lens Iris | F/1.6 fixed iris |
| Focus Adjustment | Fixed focus |
| Min Focus Distance | 0.2 in |
| Horizontal Field of View (degree) | 100 |
| Vertical Field of View (degree) | 73 |
| Diagonal Field of View (degree) | 129 |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, TCP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, CDP, SRTP, MQTT |
| Panning | |
| Range (degree) | 0 to 360 |
| Tilting | |
| Range (degree) | 0 to 100 |
