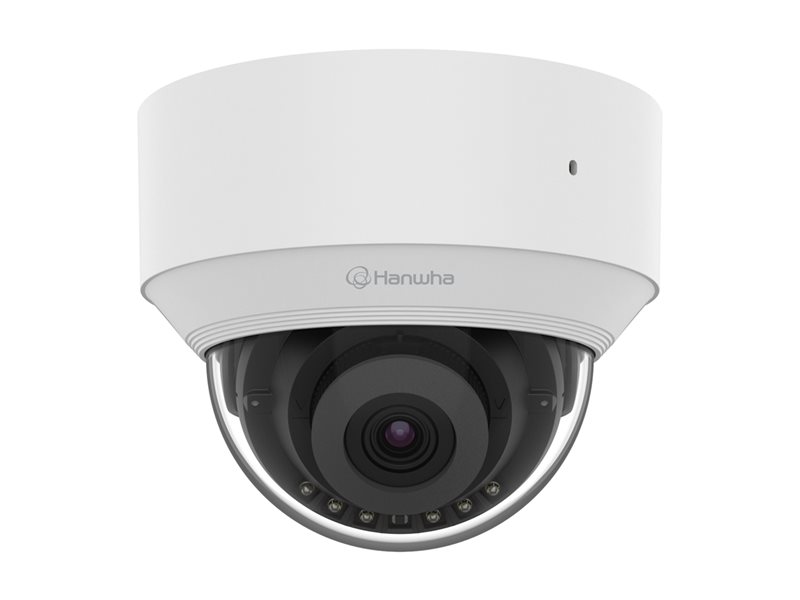

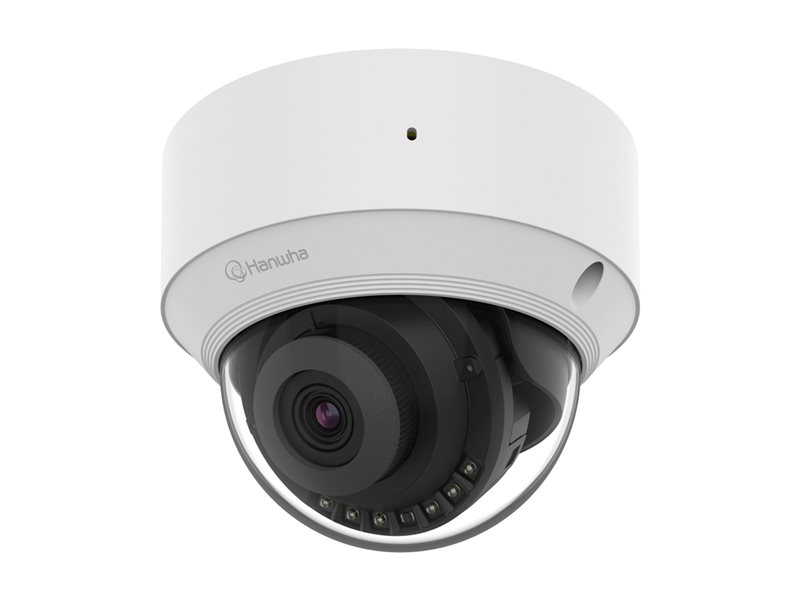

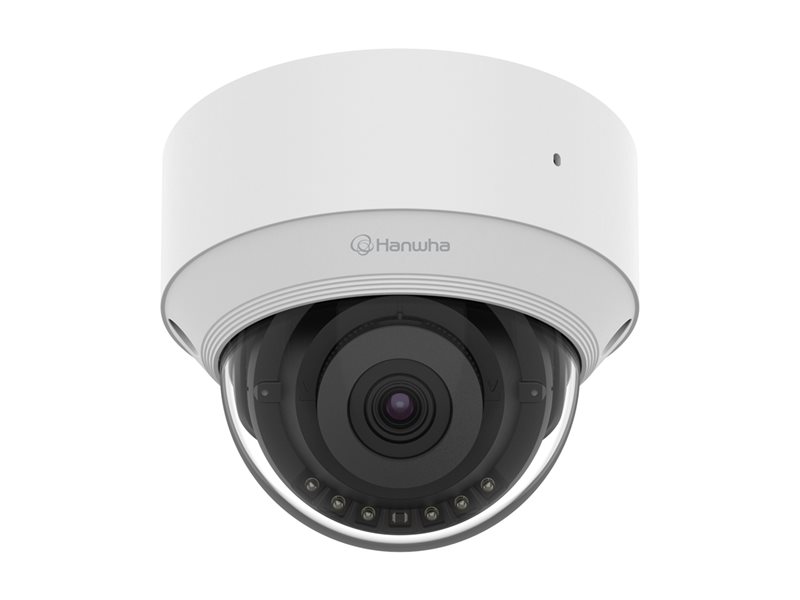

Network surveillance camera - dome - color (Day&Night) - 5 MP - 2592 x 1944 - M12 mount - fixed iris - fixed focal - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3
| Main Specifications | |
|---|---|
| Product Description | Hanwha Vision QND-C8023R - network surveillance camera - dome |
| Device Type | Network surveillance camera - fixed - dome |
| Dimensions (WxDxH) | 4.3 in x 4.3 in x 3.5 in |
| Weight | 11.18 oz |
| Color | White, RAL 9003 |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2592 x 1944 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 1/2.8" - 5 MP |
| Minimum Illumination | 0.05 lux - color - F1.6 - 30 IRE - shutter 1/30 sec ¦ 0.005 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Focal Length Control | Fixed focal |
| Focal Length | 4 mm |
| Lens Mounting | M12 mount |
| Focus Adjustment | Fixed focus (min distance 19.7 in) |
| Lens Iris | F/1.6 - fixed iris |
| Panning Range (degree) | 0 to 350 |
| Tilting Range (degree) | 0 to 75 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 3 |
| Features | AI Analytics, Object Detection, Person Detection, vehicle type classification, Virtual Line detection, entrance / exit detection, intrusion detection, loitering detection, clothes color detection, vehicle color recognition, dynamic privacy masking, 0° / 355° rotation, auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), WiseNR II, Samsung Super Noise Reduction (SSNR) V, Gain Control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Lens Distortion Compensation (LDC), Hallway View, Defocus Detection, tamper-detection, appearing / disappearing detection, people counting, vehicle counting, queue management, Heat Map, network disconnection trigger, Handover, notification picture to E-mail, notification picture to FTP, WiseStream III support, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Unicast Streaming, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, hard-coated dome |
| Environmental Parameters (operating) | 14 °F - 113 °F; 0 - 95% RH relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 4.3 in |
| Depth | 4.3 in |
| Height | 3.5 in |
| Weight | 11.18 oz |
| Expansion / Connectivity | |
| Ports | Video output - Micro-USB ¦ LAN/power - RJ-45 ¦ Alarm I/O |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Compliant Standards | FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA, EN 55032 Class A, VCCI-CISPR 32 Class A, AS/NZS CISPR 32 Class A, KS C 9832 Class A, UL 62368-1, IEC/EN 62471, IEC/EN 63000, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KS C 9835, CAN/CSA-C22.2 No. 62368-1 |
| Color | White, RAL 9003 |
| Power | |
| Power Requirements | PoE Class 3 |
| Power Device | 8.1 watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 113 °F |
| Relative Humidity (operating) | 0 - 95% RH |
| Camera | |
| Type | Color - Day&Night - fixed |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2592 x 1944 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/25000 sec |
| Minimum Illumination | 0.05 lux - color - F1.6 - 30 IRE - shutter 1/30 sec ¦ 0.005 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 98 ft |
| Digital Video Capture Resolution | 2592 x 1944, 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Frame Rate (max) | 30 frames per second |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Features | AI Analytics, Object Detection, Person Detection, vehicle type classification, Virtual Line detection, entrance / exit detection, intrusion detection, loitering detection, clothes color detection, vehicle color recognition, dynamic privacy masking, 0° / 355° rotation, auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), WiseNR II, Samsung Super Noise Reduction (SSNR) V, Gain Control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Lens Distortion Compensation (LDC), Hallway View, Defocus Detection, tamper-detection, appearing / disappearing detection, people counting, vehicle counting, queue management, Heat Map, network disconnection trigger, Handover, notification picture to E-mail, notification picture to FTP, WiseStream III support, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Unicast Streaming, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, hard-coated dome |
| Lens Construction | |
| Type | M12 mount - fixed focal |
| Focal Length | 4 mm |
| Lens Iris | F/1.6 fixed iris |
| Focus Adjustment | Fixed focus |
| Min Focus Distance | 19.7 in |
| Horizontal Field of View (degree) | 80 |
| Vertical Field of View (degree) | 59 |
| Diagonal Field of View (degree) | 102 |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, EAP, LLDP |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Panning | |
| Range (degree) | 0 to 350 |
| Tilting | |
| Range (degree) | 0 to 75 |
