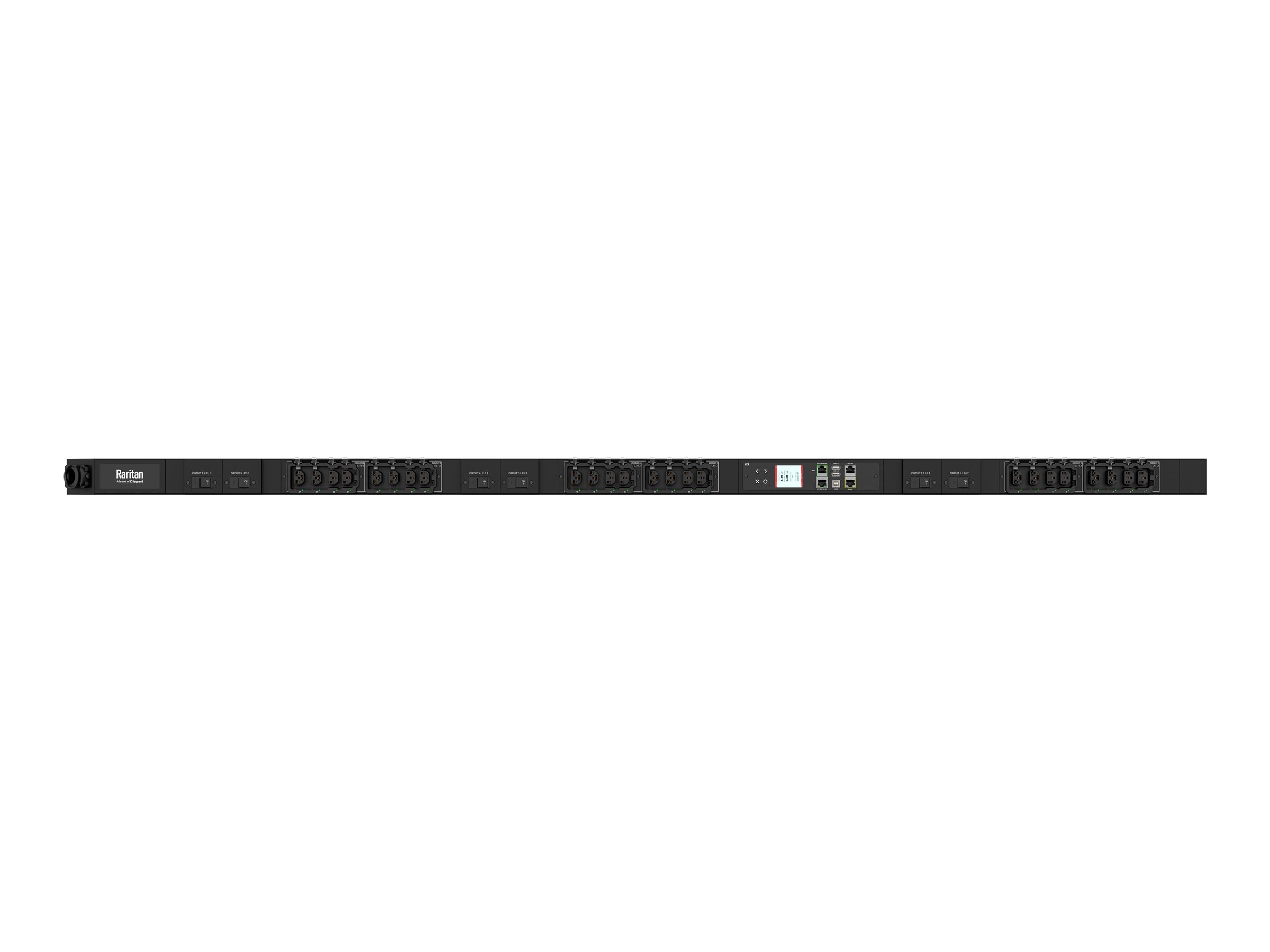

Power distribution unit (rack-mountable) - AC 208 V - 17300 VA - 3-phase WYE - Ethernet 10/100/1000, RS-232, USB - input: IEC 60309 3P+N+G - output connectors: 24 (12 x IEC 60320 C13, 12 x IEC 60320 Cx) - 10 ft cord - black
| Main Specifications | |
|---|---|
| Product Description | Raritan PX4-1551I3-E7V2 - power distribution unit - 17300 VA |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Weight | 19 lbs |
| Input Wiring | 3-phase WYE |
| Input Voltage | AC 208 V |
| Output Voltage | AC 208 V |
| Power Capacity | 17300 VA |
| Power Capacity Details | 15.8 kVA at 190 V, 17.3 kVA at 208 V |
| Input Connectors | 1 x power IEC 60309 3P+N+G |
| Output connectors | 12 x power IEC 60320 C13 12 A ¦ 12 x power IEC 60320 Cx 16 A |
| Networking | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, CLI, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus TCP |
| Color | Black |
| Dimensions (WxDxH) | 2.2 in x 2.6 in x 70.1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x serial - RS-232 ¦ 1 x cascading - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x PDU link - RJ-45 ¦ 1 x sensor - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Rack Mounting Kit | Included |
| Features | Powder-coated, extruded aluminum housing, tool-less button mount, Branch Current Monitoring, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, metering per input line, metering per branch circuit breaker, replaceable controller, monitored, cascadable, environmental sensor ready, LCD display, locking outlets, bottom-front feed cord entry, Raritan SecureLock Ready, 6 x J62-X0 overload protection |
| Compliant Standards | UL, cULus, ICES-003, FCC Part 15 A, RoHS |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, CLI, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus TCP |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 190 - 208 V |
| Input Wiring | 3-phase WYE |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+G |
| Power Output Connectors Details | 12 x power IEC 60320 C13 12 A ¦ 12 x power IEC 60320 Cx 16 A |
| Output Voltage | AC 208 V |
| Max Electric Current | 48 A |
| Power Capacity | 17300 VA |
| Power Capacity Details | 15.8 kVA at 190 V, 17.3 kVA at 208 V |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 2.6 in |
| Height | 70.1 in |
| Weight | 19 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 4.9 in |
| Shipping Depth | 10 in |
| Shipping Height | 76.4 in |
