Video/audio/infrared/serial/network extender - 1GbE, GigE (optical) - up to 328 ft
| Main Specifications | |
|---|---|

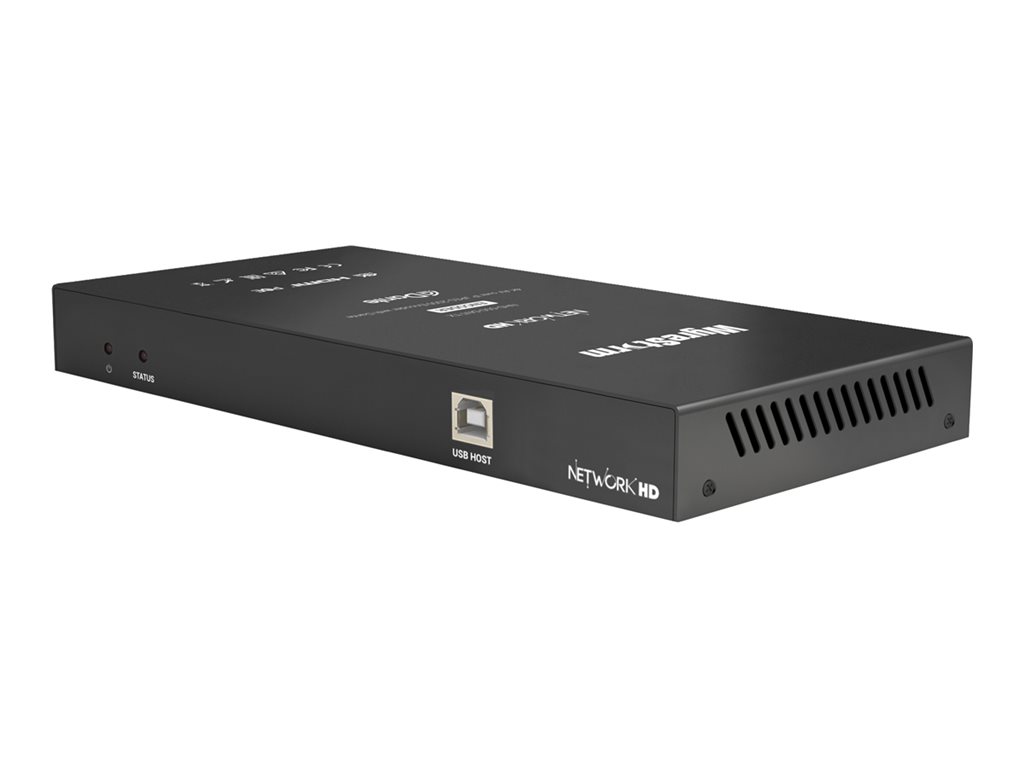

| Product Description | NetworkHD 500 Series NHD-500-DNT-TX - video/audio/infrared/serial/network extender - 1GbE, GigE (optical) |
| Device Type | Video/audio/infrared/serial/network extender |
| Form Factor | External |
| Data Transfer Rate | 850 Mbps |
| Data Link Protocol | 1GbE, GigE (optical) |
| Remote Management Protocol | HTTPS, SSH |
| Max Transfer Distance | 328 ft |
| Power Over Ethernet (PoE) | PoE |
| Power | DC 12 V / PoE V |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Video/audio/infrared/serial/network extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A ¦ 1 x Dante network - RJ-45 ¦ 1 x 1Gb Ethernet - SFP ¦ 1 x RS-232 - 3 pin Phoenix ¦ 1 x IR (input) - mini jack ¦ 1 x IR (output) - mini jack ¦ 1 x USB 2.0 (host) - Type B ¦ 1 x 1Gb Ethernet (PoE) - RJ-45 ¦ 1 x audio line-in - mini jack ¦ 1 x audio line-out - 5 pin Phoenix ¦ 1 x TOSLINK (output) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | IR receiver, IR transmitter, 4 wall mount brackets, 2 rack mount brackets, 3-pin terminal block, 5-pin terminal block |
| Mounting Kit | Included |
| Compliant Standards | IEEE 802.3af |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | 1GbE, GigE (optical) |
| Data Transfer Rate | 850 Mbps |
| Remote Management Protocol | HTTPS, SSH |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Max Video Bandwidth | 600 MHz |
| Max Transfer Distance | 328 ft |
| Status Indicators | Power, link/activity |
| Features | Dante audio network, 4K60 8-bit 4:4:4 compatible, CEC support, Adaptive Rate Control (ARC), EDID mode, HDR10 support, 4K resolution support, DTS:X support, Dolby Atmos support, scaling function, 2 channels, 1080p resolution support, AES67 audio network |
| Encryption Algorithm | 256-bit AES |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Over Ethernet (PoE) | PoE |
| Power Device | External power adapter |
| Voltage Required | DC 12 V / PoE V |
| Power Consumption Operational | 15.4 Watt |
