Fanless - barebone - DIN-rail / wall mount 1 x Celeron N6210 / up to 2.6 GHz - UHD Graphics - Gigabit Ethernet
| Main Specifications | |
|---|---|
| Product Description | Advantech ARK-1221L - fanless - DIN-rail / wall mount Celeron N6210 1.2 GHz - no HDD |
| Type | PC barebone - DIN-rail / wall mount |
| Processor | 1 x Intel Celeron N6210 / 1.2 GHz (up to 2.6 GHz, (Dual-Core) |
| Processor Main Features | Intel Turbo Boost Technology |
| Cache Memory | 1.5 MB L2 cache |
| Cache Per Processor | 1.5 MB |
| RAM | 32 GB (max) - DDR4 SDRAM - non-ECC |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics |
| Networking | 1GbE |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 2.4 in x 4.5 in x 6.2 in |
| Weight | 3.31 lbs |
| General | |
| Type | PC barebone |
| Product Form Factor | DIN-rail / wall mount |
| Built-in Devices | Watchdog timer |
| Embedded Security | Trusted Platform Module (TPM) Security Chip |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Type E ¦ 1 (total) / 1 (free) x M.2 Type B (with SIM holder) ¦ 1 (total) / 1 (free) x Mini PCIe/mSATA (full-size) |

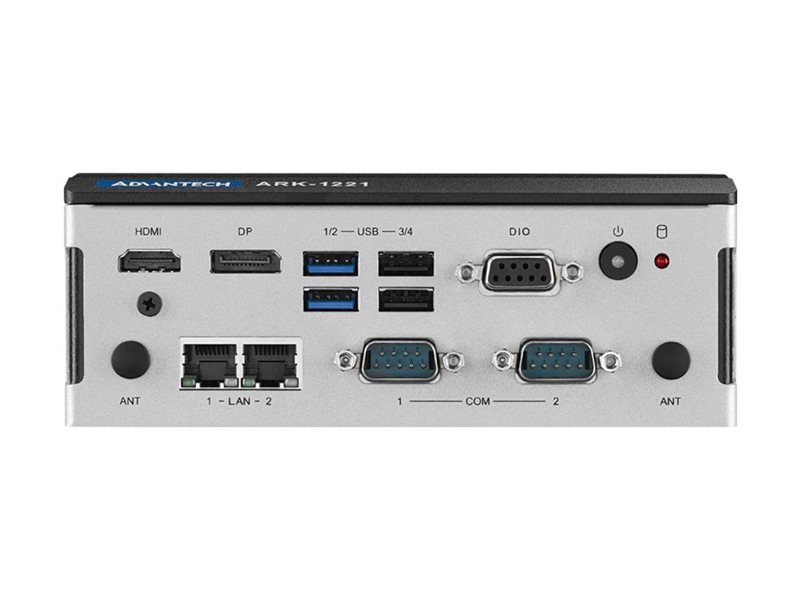

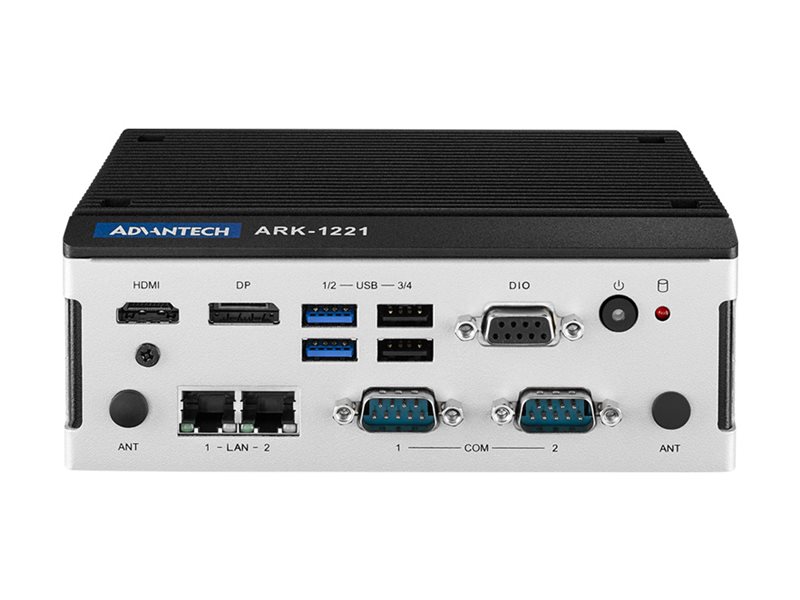

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 3.2 ¦ 2 x USB 2.0 ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 2 x serial (RS-232/422/485) |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, CCC, BSMI, UKCA, UL, CB |
| RAM | |
| Installed Size | 32 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Effective Memory Speed | 1600 MHz |
| Rated Memory Speed | 1600 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | 2 x Intel I225-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL) |
| Power | |
| Device Type | Power supply |

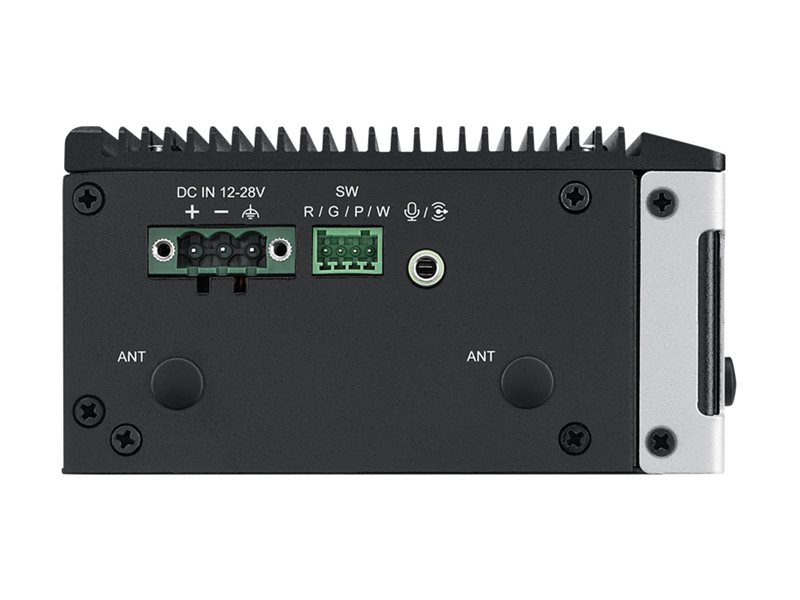

| Voltage Required | DC 12 - 28 V |
| Power Consumption Operational | 18.96 watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Cache Memory | |
| Installed Size | L2 cache - 1.5 MB |
| Cache Per Processor | 1.5 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI, DisplayPort |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | No operating system |
| OS Certified | Windows 10 Enterprise, Ubuntu 20.04 |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 2.4 in |
| Depth | 4.5 in |
| Height | 6.2 in |
| Weight | 3.31 lbs |
| Processor / Chipset | |
| CPU | Intel Celeron N6210 |
| Clock Speed | 1.2 GHz |
| Max Turbo Speed | 2.6 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Turbo Boost Technology |
