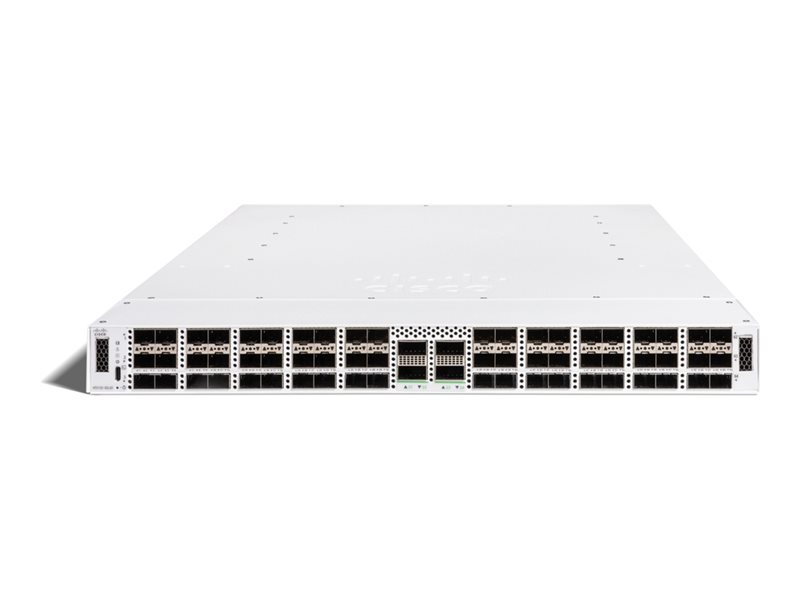

Switch - managed - 60 x 10/25/50 Gigabit Ethernet SFP28 + 4 x 400 Gigabit QSFP-DD - front to back airflow - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Cisco Nexus HyperFabric HF6100-60L4D - switch - 64 ports - managed - rack-mountable |
| Device Type | Switch - 64 ports - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 50 Gigabit Ethernet |
| Ports | 60 x 10/25/50 Gigabit Ethernet SFP28 + 4 x 400 Gigabit QSFP-DD |
| Performance | Switching capacity: up to 9.2 Tbps ¦ Forwarding rate: 8 Bpps ¦ Baud rate: 115200 bits/s |
| Capacity | Indirect IPv4 routes: up to 2000000 ¦ IPv4 hosts: up to 256000 ¦ Indirect IPv6 routes: up to 1000000 ¦ IPv6 hosts: up to 128000 ¦ IPv4 routes (Multicast): up to 32000 ¦ IPv6 routes (Multicast): up to 16000 ¦ IPv4 QoS ACL scale: up to 8000 ¦ IPv6 QoS ACL scale: up to 4000 ¦ IPv4 security ACL scale: up to 8000 ¦ IPv6 security ACL scale: up to 4000 ¦ VLANs supported: 4094 |
| MAC Address Table Size | 256K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing, BGP-4, BGP-6, VRF |
| Remote Management Protocol | IPv4, IPv6 |
| Features | ZTP, image signing, secure boot, Cisco Trust Anchor module, ACL support, QoS, SPQ, unicast mode, static multicast routing, EVPN, LACP support, NetFlow, IPFIX, API support, breakout capability, remote firmware upgrade, built-in ASIC, reset button |
| Power | AC 90-264 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.5 in x 21.8 in x 1.7 in |
| Weight | 28.11 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Switch - 64 ports - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 50 Gigabit Ethernet |
| Ports | 60 x 10/25/50 Gigabit Ethernet SFP28 + 4 x 400 Gigabit QSFP-DD |
| Performance | Switching capacity: up to 9.2 Tbps ¦ Forwarding rate: 8 Bpps ¦ Baud rate: 115200 bits/s |
| Capacity | Indirect IPv4 routes: up to 2000000 ¦ IPv4 hosts: up to 256000 ¦ Indirect IPv6 routes: up to 1000000 ¦ IPv6 hosts: up to 128000 ¦ IPv4 routes (Multicast): up to 32000 ¦ IPv6 routes (Multicast): up to 16000 ¦ IPv4 QoS ACL scale: up to 8000 ¦ IPv6 QoS ACL scale: up to 4000 ¦ IPv4 security ACL scale: up to 8000 ¦ IPv6 security ACL scale: up to 4000 ¦ VLANs supported: 4094 |
| MAC Address Table Size | 256K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing, BGP-4, BGP-6, VRF |
| Remote Management Protocol | IPv4, IPv6 |
| Features | ZTP, image signing, secure boot, Cisco Trust Anchor module, ACL support, QoS, SPQ, unicast mode, static multicast routing, EVPN, LACP support, NetFlow, IPFIX, API support, breakout capability, remote firmware upgrade, built-in ASIC, reset button |
| Processor | 1 x Intel: 2.3 GHz |
| RAM | 32 GB DDR4 SDRAM |
| Flash Memory | 32 GB |
| Built-in Devices | 6 x fans |
| Status Indicators | Status |
| Expansion / Connectivity | |
| Interfaces | 60 x 10/25/50GBase-X SFP28 ¦ 4 x 400Gbase-X QSFP-DD ¦ 1 x USB Type C console ¦ 1 x USB 3.0 Type A host ¦ 1 x management RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year - response time: 10 days |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | WEEE, UL 60950-1, CAN/CSA-C22.2 No. 60950-1, IEC 60950-1, AS/NZS 60950-1, EN 62368-1, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC 62368-1, AS/NZS 62368-1, CNS13438:2006 Class A, EN 300 386 V1.6.1, EN 61000-3-2:2014, EN 61000-3-3:2013, ICES-003:2016 issue 6 Class A, KS C 9832:2019, CISPR32:2015:Ed:2, EN 55032:2012/AC:2013 Class A, EN 55032:2015 Class A, CISPR 32 Second Edition Class A, VCCI-CISPR 32:2016, CISPR 24:2010+A1:2015, EN 55024:2010+A1:2015, KS C 9835:2019, EN 55035:2017+A11:2020, 47 CFR Part 15:2016 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 1500 Watt - DC 12 V - 125 A |
| Voltage Required | AC 90-264 V (50/60 Hz) |
| Features | Front-to-rear airflow |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 21.8 in |
| Height | 1.7 in |
| Weight | 28.11 lbs |
