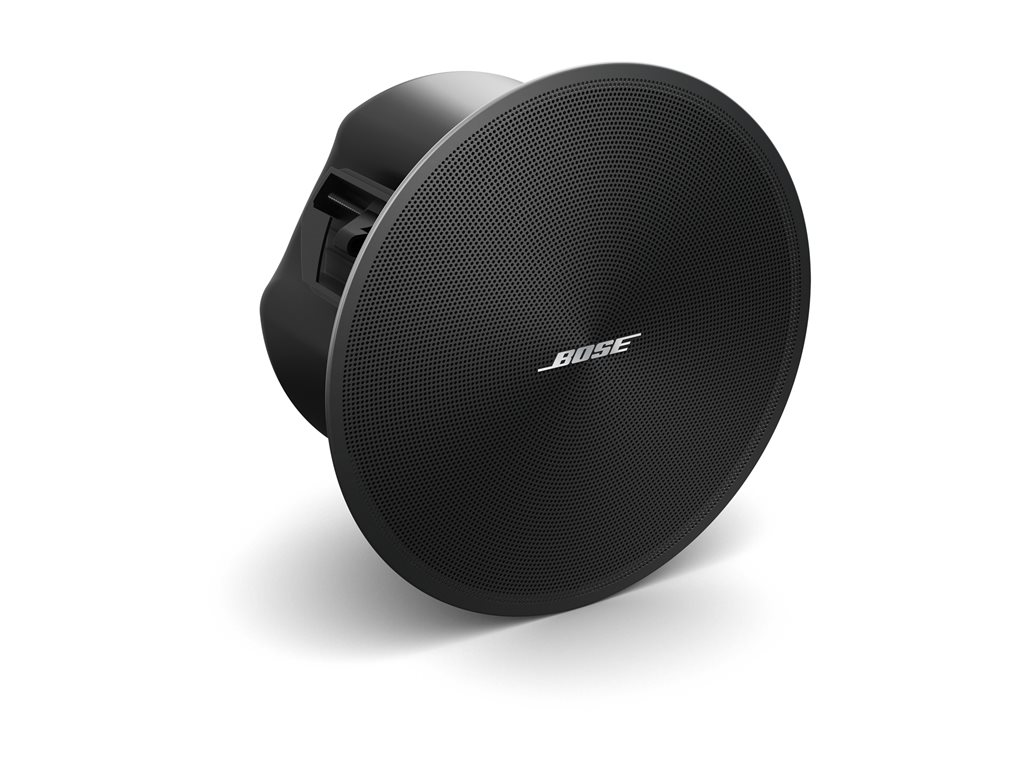

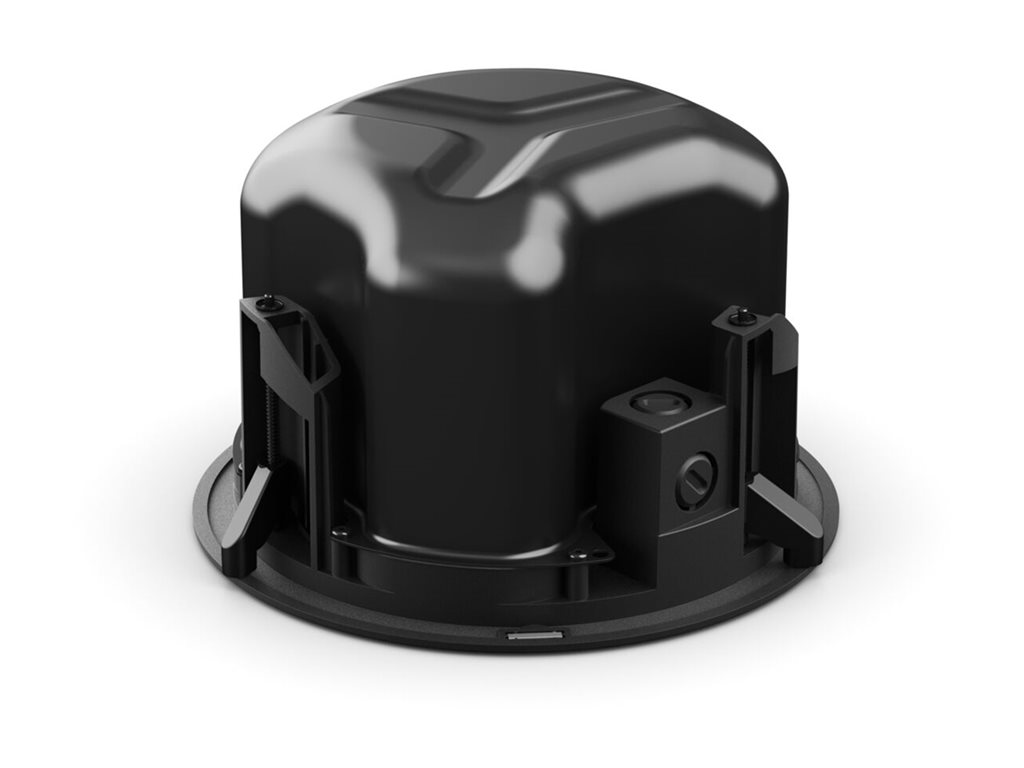

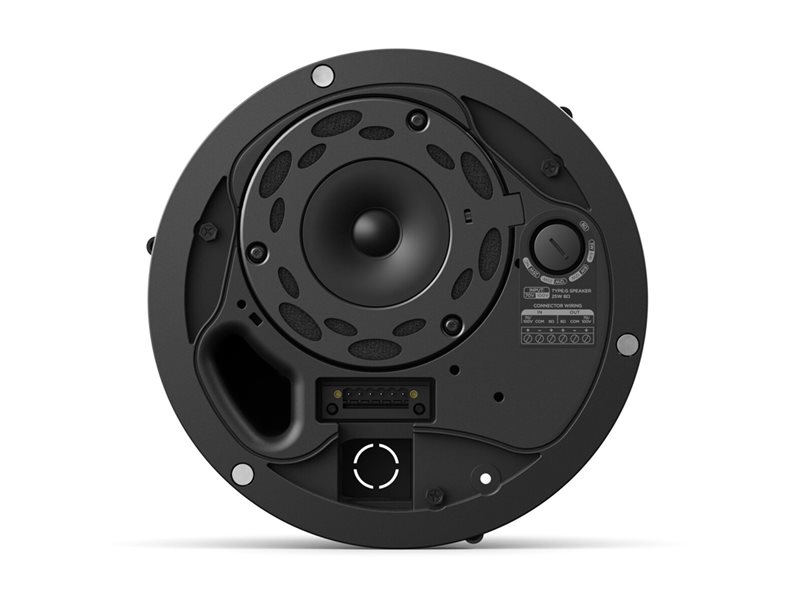

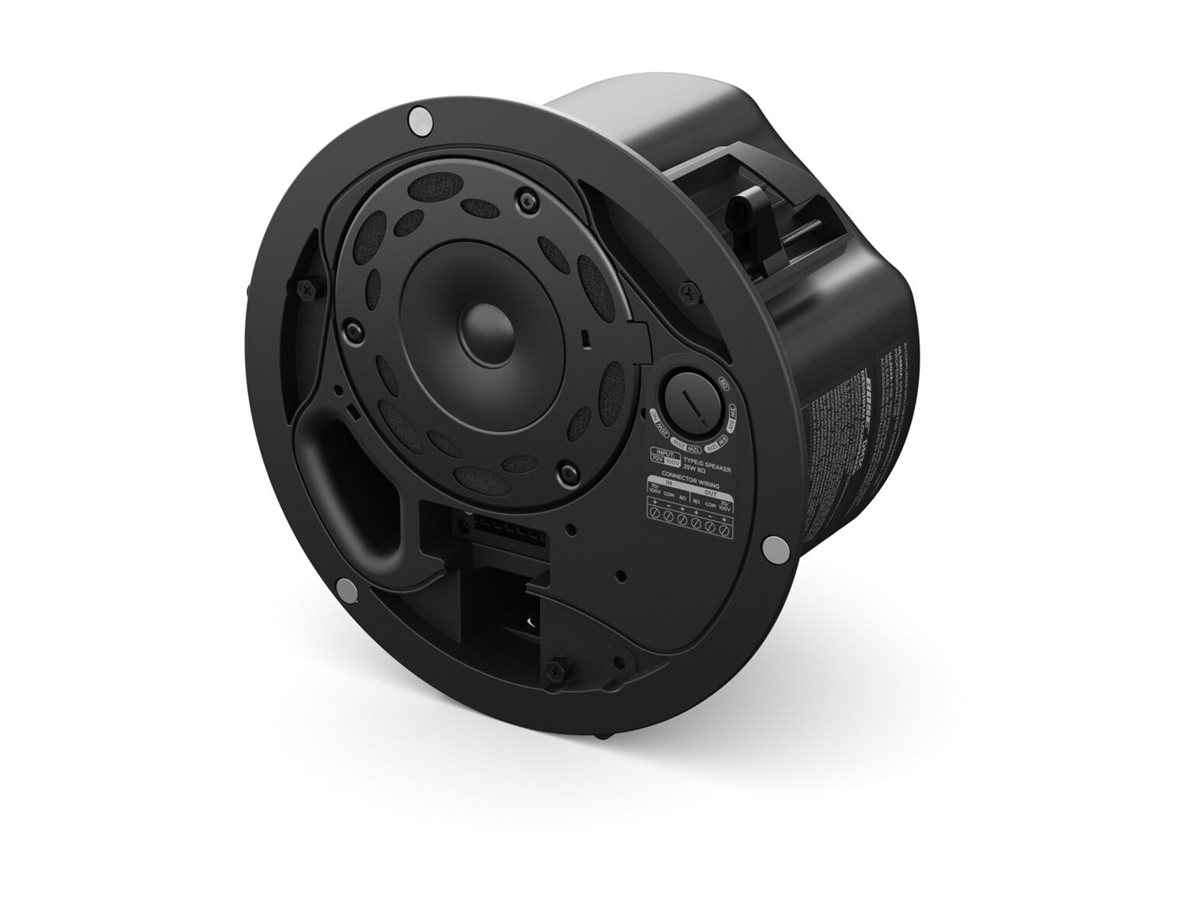

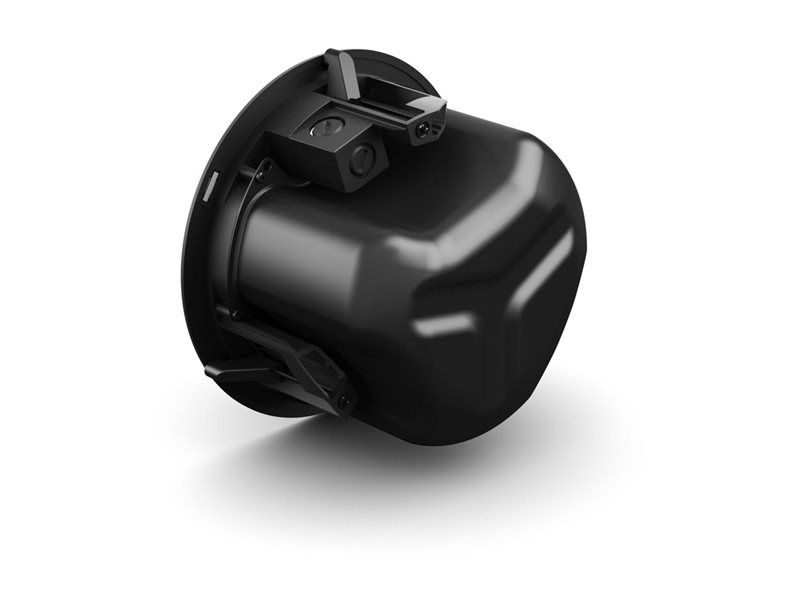

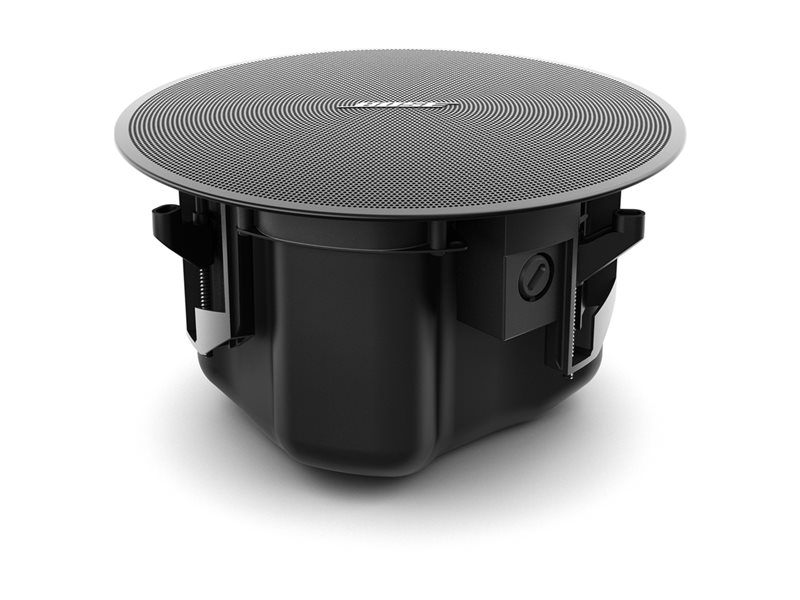

Speakers - for PA system - 30 Watt - 2-way - coaxial - black, RAL 9005
| Main Specifications | |
|---|---|
| Product Description | Bose DesignMax DM3C - speakers - for PA system |
| Product Type | Speakers - for PA system |
| System Components | 2 speakers |
| Speaker Type | Coaxial - 2-way - passive |
| Continuous Power | 30 Watt |
| Peak Power | 120 Watt |
| Nominal Impedance | 8 Ohm |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Color | Black, RAL 9005 |
| Dimensions (WxDxH) | 10 in x 10 in x 8 in |
| Weight | 5.95 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Product Type | Speakers - for PA system |
| Enclosure Color | Black, RAL 9005 |
| Design Features | Paintable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | Magnetic speaker grilles |
| Compliant Standards | UL 2043, UL 1480A, NFPA 70, NFPA 90A |
| Dimensions & Weight | |
| Width | 10 in |
| Depth | 10 in |
| Height | 8 in |
| Weight | 5.95 lbs |
| Speaker System | |
| System Components | 2 speakers |
| Speaker Type | Coaxial - 2-way - passive |
| Continuous Power | 30 Watt |
| Peak Power | 120 Watt |
| Frequency Response (-10dB) | 75 - 20000 Hz |
| Nominal Impedance | 8 Ohm |
| Max Output Level (Max SPL) | 98 dB |
| Sensitivity | 83 dB |
| Crossover Frequency | 1700Hz |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Recommended Placing | In-ceiling mounted, indoor |
| Speaker System Details | |
| Driver Details | Speaker: woofer driver - 3.25" ¦ Speaker: tweeter driver - 0.75" - neodymium |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 19.18 lbs |
| Cutout & Mounting Dimensions | |
| Diameter | 8.2 in |
