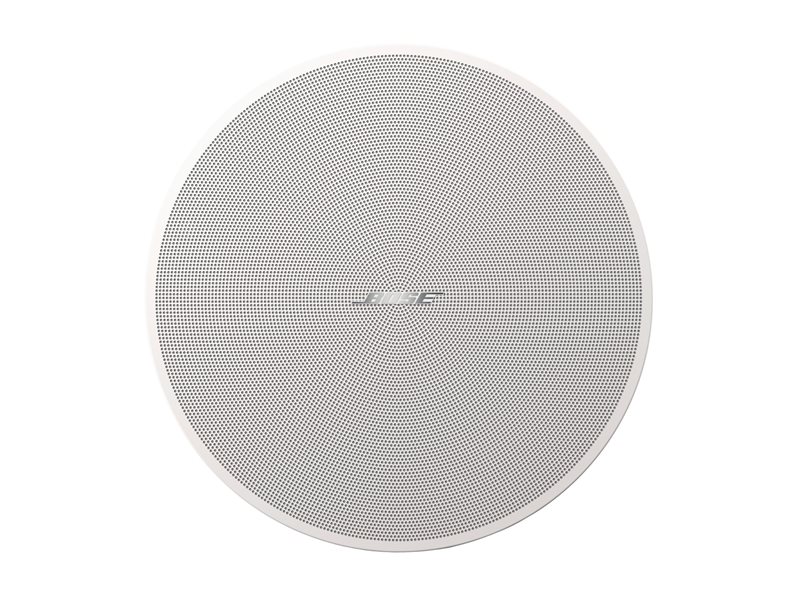

Speakers - 60 Watt - 2-way - coaxial - white, RAL 9003
| Main Specifications | |
|---|---|
| Product Description | Bose DesignMax DM5C - speakers |
| Product Type | Speakers |
| System Components | 2 speakers |
| Speaker Type | Coaxial - 2-way - passive |
| Continuous Power | 60 watt |
| Peak Power | 240 watt |
| Nominal Impedance | 8 ohm |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Speaker Details | Speaker - 60 watt - 65 - 20000 Hz - 8 ohm - 2-way - passive |
| Color | White, RAL 9003 |
| Dimensions (WxDxH) | 11.9 in x 11.9 in x 9.6 in |
| Weight | 9.92 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Product Type | Speakers |
| Enclosure Color | White, RAL 9003 |
| Enclosure Material | Plastic |
| Design Features | Paintable grille |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Dimensions & Weight | |
| Width | 11.9 in |
| Depth | 11.9 in |
| Height | 9.6 in |
| Weight | 9.92 lbs |
| Dimensions (WxDxH) / Weight Details | / 29.1 lbs |
| Speaker System | |
| System Components | 2 speakers |
| Speaker Type | Coaxial - 2-way - passive |
| Continuous Power | 60 watt |
| Peak Power | 240 watt |
| Frequency Response (-10dB) | 65 - 20000 Hz |
| Nominal Impedance | 8 ohm |
| Max Output Level (Max SPL) | 105 dB |
| Sensitivity | 87 dB |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Coverage | 130° conical |
| Recommended Placing | In-ceiling mounted |
| Speaker System Details | |
| Speaker Details | Speaker - 60 watt - 65 - 20000 Hz CFR - 8 ohm - 2-way - passive |
| Driver Details | Speaker: woofer driver - 5.25" ¦ Speaker: tweeter driver - 1" - neodymium |
| Cutout & Mounting Dimensions | |
| Diameter | 9.8 in |
