All-in-one 1 x Core i5 1155G7 / up to 4.5 GHz - RAM 8 GB - SSD 256 GB - Intel Iris Xe Graphics - Gigabit Ethernet - Win 11 IoT Enterprise LTSC - monitor: LCD 15" 1024 x 768 (XGA) touchscreen
| Main Specifications | |
|---|---|

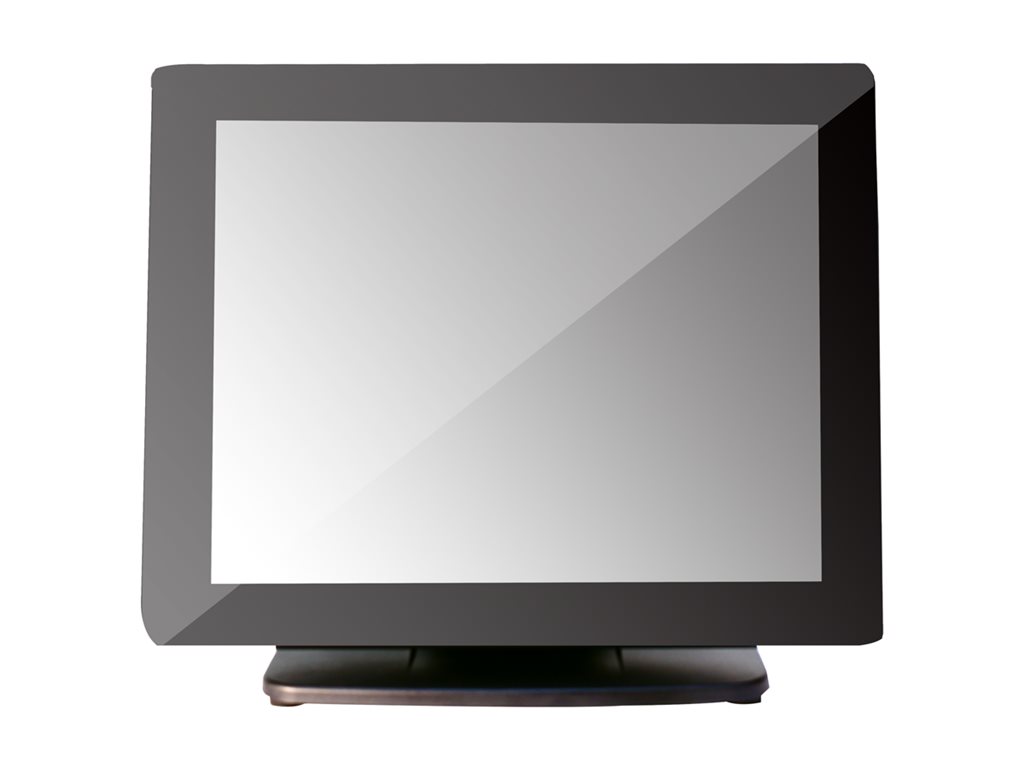

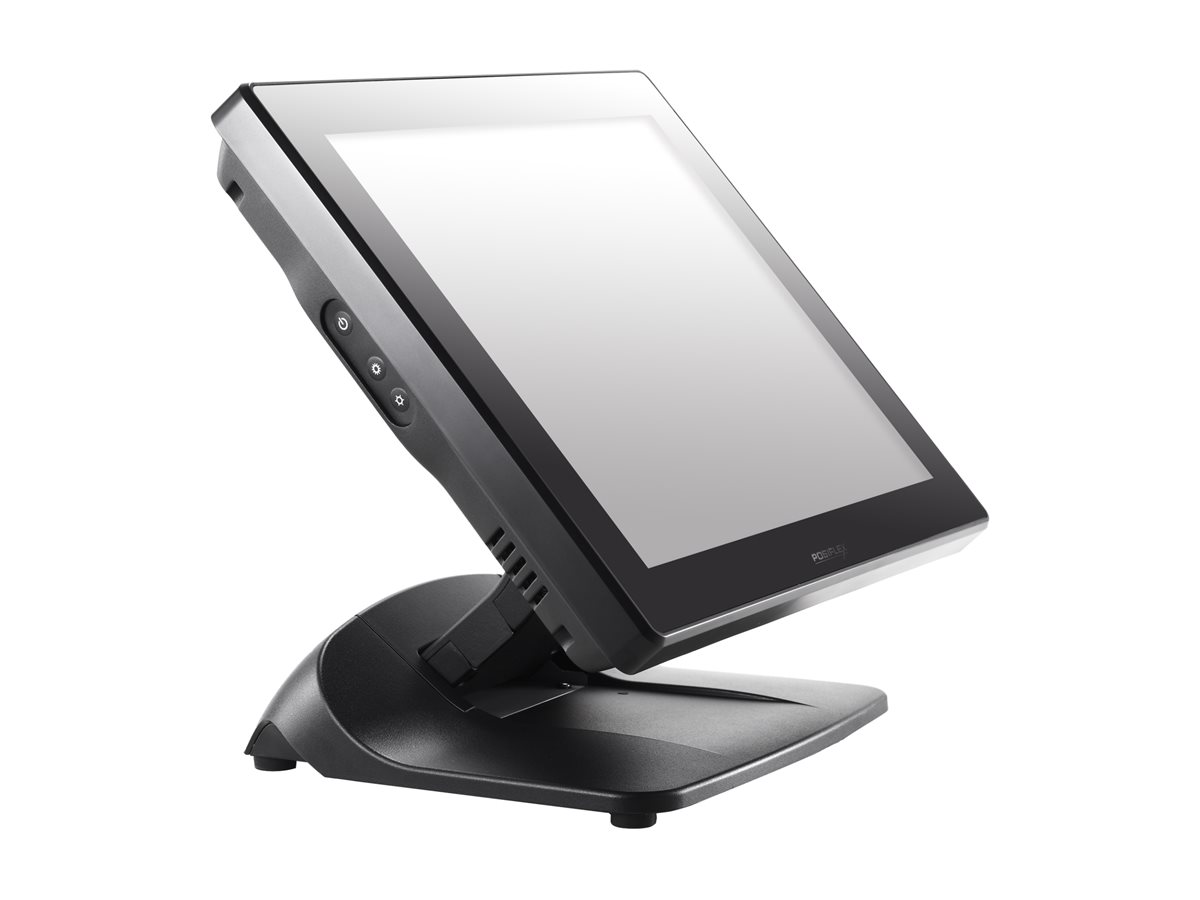

| Product Description | Posiflex XT Series XT-8315 - all-in-one Core i5 1155G7 2.5 GHz - 8 GB - SSD 256 GB - LCD 15" |
| Type | Point of sale terminal - all-in-one |
| Processor | 1 x Intel Core i5 (11th Gen) 1155G7 / 2.5 GHz (up to 4.5 GHz, (Quad-Core) |
| Cache Memory | 8 MB |
| Cache Per Processor | 8 MB |
| RAM | 8 GB (installed) / 64 GB (max) - DDR4 SDRAM |
| Storage Controller | SATA |
| Hard Drive | SSD 256 GB - M.2 |
| Optical Storage | No optical drive |
| Monitor | 15" - LCD - 1024 x 768 (XGA) - touchscreen |
| Graphics Controller | Intel Iris Xe Graphics |
| Networking | 1GbE |
| OS Provided | Windows 11 IoT Enterprise LTSC |
| Dimensions (WxDxH) | 14.6 in x 9.9 in x 12.6 in |
| Weight | 13.23 lbs |
| General | |
| Type | Point of sale terminal |
| Product Form Factor | All-in-one - with foldable base |
| Built-in Devices | Speaker |
| Embedded Security | Trusted Platform Module (TPM) Security Chip |
| Expansion / Connectivity | |
| Slots | 1 M.2 Card |
| Interfaces | 1 x serial - RJ-11 ¦ 3 x serial - RJ-50 ¦ 2 x USB 2.0 ¦ 4 x USB 3.0 ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x HDMI ¦ 1 x audio line-out/microphone |
| RAM | |
| Installed Size | 8 GB (installed) / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% RH |
| Storage Controller | |
| Type | 1 x SATA |
| Channel Qty | 2 |
| RAID Level | RAID 0, RAID 1 |
| Cache Memory | |
| Installed Size | 8 MB |
| Cache Per Processor | 8 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LCD |
| Touchscreen | Yes (multi-touch) |
| Diagonal Size | 15" |
| Native Resolution | 1024 x 768 (XGA) |
| Widescreen Display | No |
| Monitor Features | True Flat Projected Capacitive Touch |
| Graphics Controller | |
| Graphics Processor | Intel Iris Xe Graphics |
| Video Interfaces | VGA, HDMI |
| Operating System / Software | |
| OS Provided | Windows 11 IoT Enterprise LTSC |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 256 GB |
| Dimensions & Weight | |
| Width | 14.6 in |
| Depth | 9.9 in |
| Height | 12.6 in |
| Weight | 13.23 lbs |
| Processor / Chipset | |
| CPU | Intel Core i5 (11th Gen) 1155G7 |
| Clock Speed | 2.5 GHz |
| Max Turbo Speed | 4.5 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
