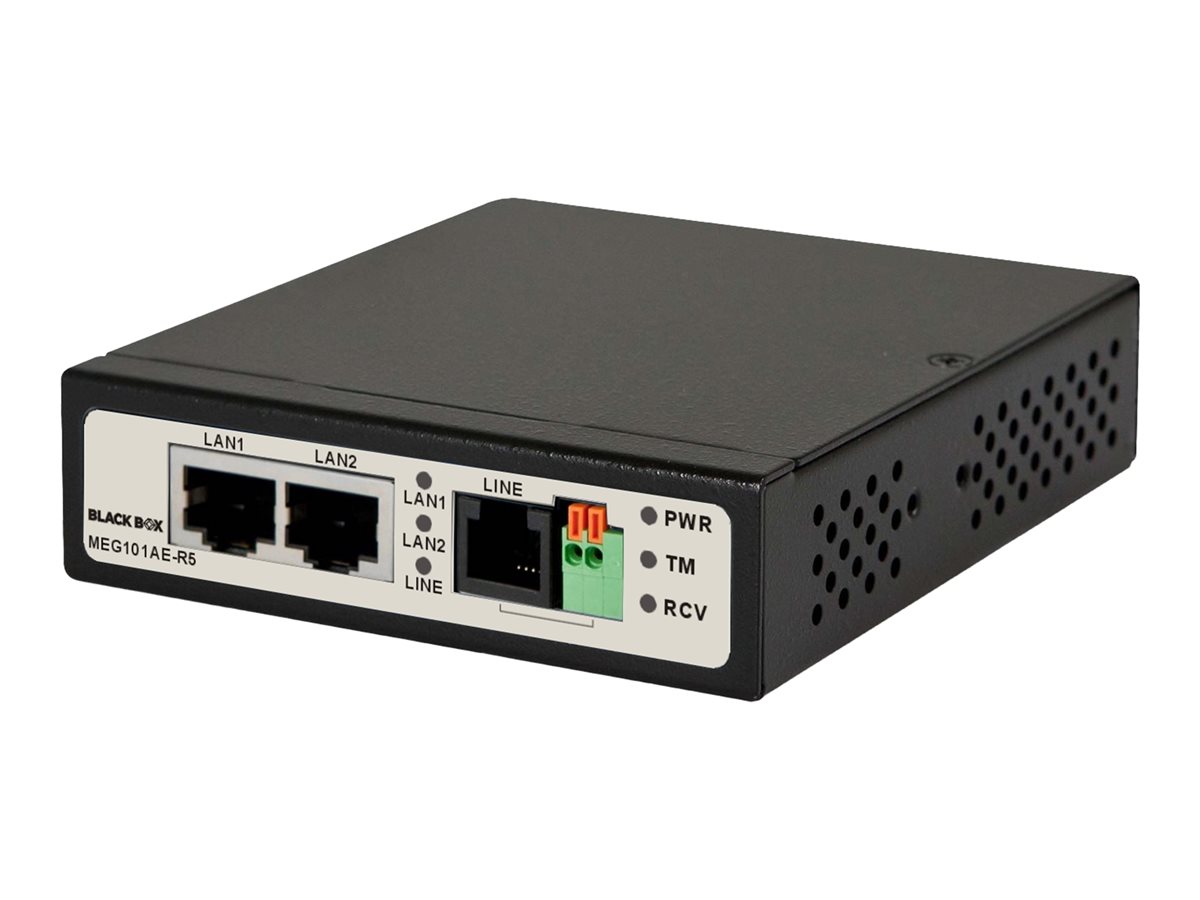

Network extender - Ethernet over VDSL2, 1GbE - VDSL2, 1000Base-T, 10Base-T, 100Base-TX - up to 1.9 miles
| Main Specifications | |
|---|---|
| Product Description | Black Box - network extender - 10Mb LAN, 100Mb LAN, Ethernet over VDSL2, 1GbE |
| Device Type | Network extender |
| Form Factor | External |
| Cabling Type | VDSL2, 1000Base-T, 10Base-T, 100Base-TX |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, Ethernet over VDSL2, 1GbE |
| Max Transfer Distance | 1.9 miles |
| Dimensions (WxDxH) | 4.3 in x 3.7 in x 1.1 in |
| Weight | 21.16 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Network extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 2 x Ethernet 10/100/1000Base-T - RJ-45 ¦ 1 x VDSL2 - RJ-11 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, EMC |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | VDSL2, 1000Base-T, 10Base-T, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, Ethernet over VDSL2, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Max Transfer Distance | 1.9 miles |
| Status Indicators | Power, LAN, transmit signal, receive signal |
| Features | Built-in DIP switch, auto-negotiation, Packet Transfer Mode (PTM), DiscreteMultitone (DMT) modulation, fanless |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, ITU-T G993.2 |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.3 in |
| Depth | 3.7 in |
| Height | 1.1 in |
| Weight | 21.16 oz |
